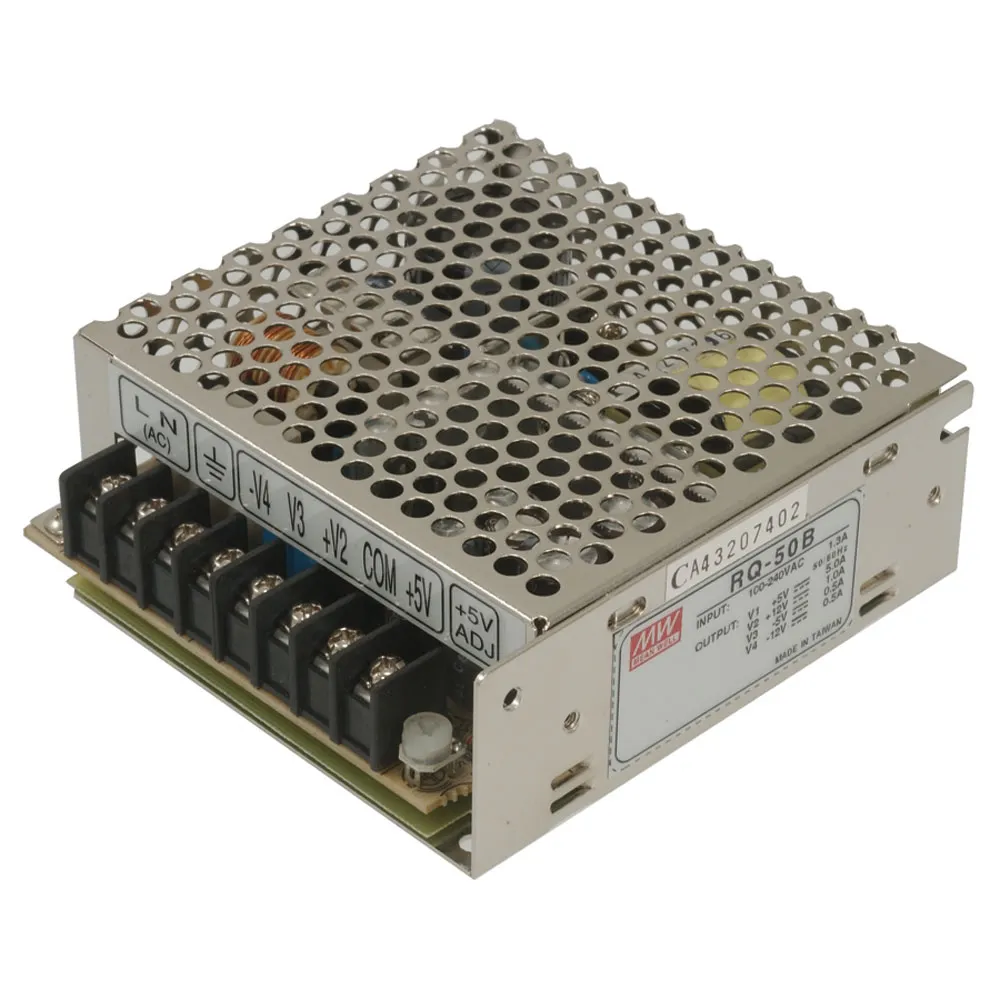

50W Quad Output Switching Power Supply


CH1: 5 Volts @ 6 Amps
CH2: 15 Volts @ 1.5 Amps
CH3: -5 Volts @ 1 Amp
CH3: -15 Volts @ 1 Amp

Features:
  • Universal AC input / Full range
  • Protections:Short circuit/Over load/Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RQ-50

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.4 in.
Width:3.8 in.
Length:3.9 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.3 A

Output

Output Current (Channel 4):0.5 A
Output Voltage (Channel 3):-5 VDC
Output Voltage (Channel 4):-15 VDC
Number of Outputs:4
Output Current (Channel 3):0.5 A
Output Current (Channel 2):1 A
Output Voltage (Channel 1):5 VDC
Output Voltage (Channel 2):15 VDC
Additional Output Voltages (VDC): -5, -15, 15
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):5 A
Output Current:6 A

Features

Minimum Isolation Voltage:3000V
Efficiency:75%
Power Rating:50 W
,
