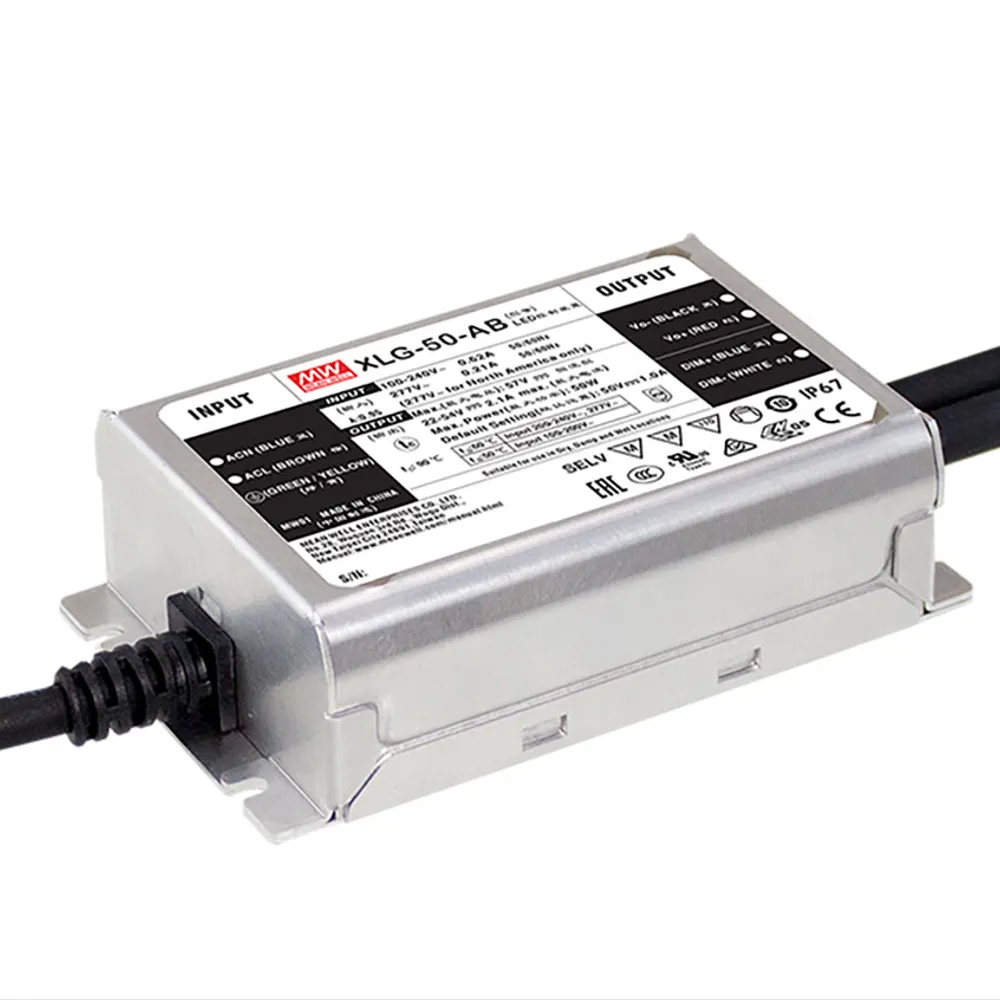

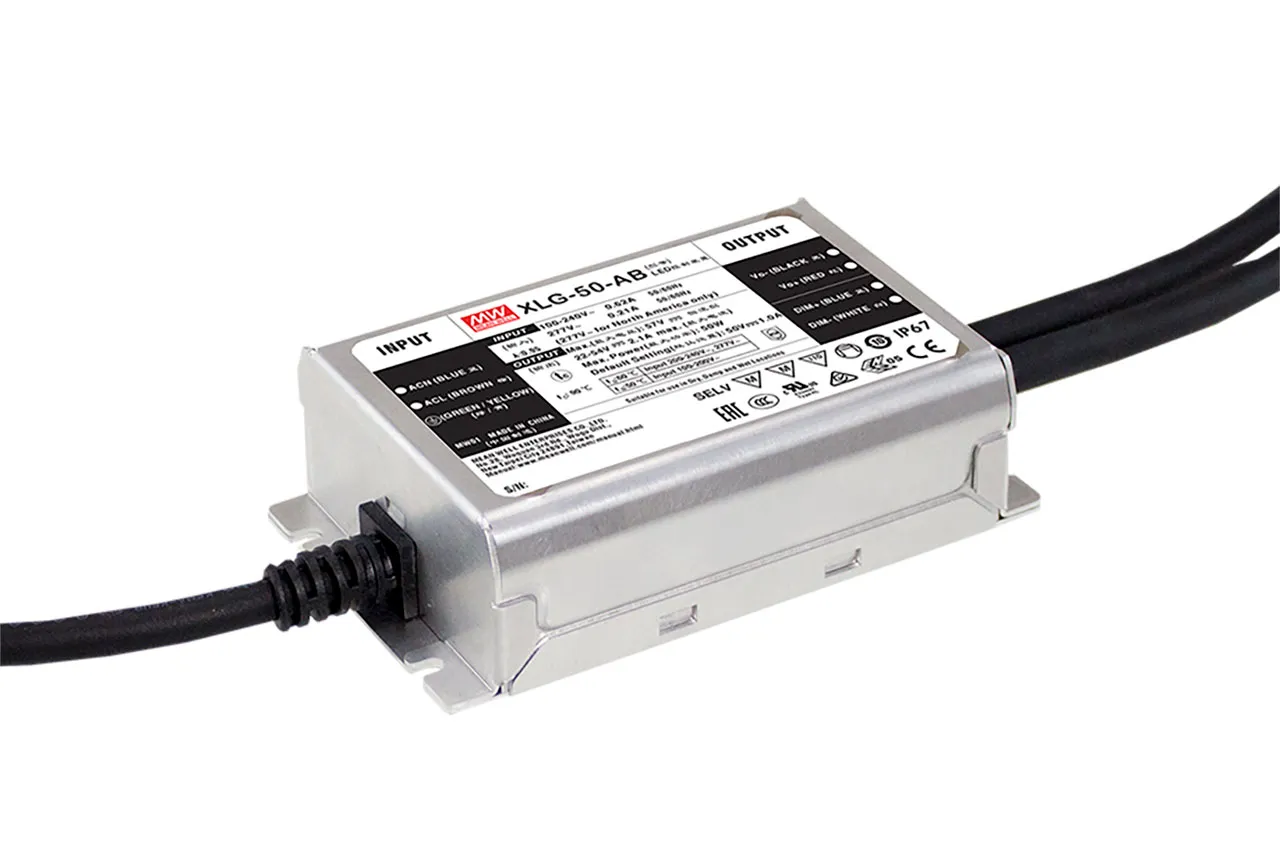

50W Constant Power Mode LED Driver with DALI-2 Dimming 700mA 60-142VDC

Features

  • Constant power mode output
  • Metal housing design with functional ground
  • Built-in active PFC function
  • Stand-by power consumption <0.5W
  • IP67 rating for indoor or outdoor installations
  • Surge protection with 6KV/4KV
  • DALI-2 dimming with minimum level 8%
  • Typical lifetime > 50,000 hours
  • 5-year warranty

Overview

The XLG-50-DA2 series is a 50 watt AC/DC LED driver featuring the constant power mode output. It operated from 90 to 305 VAC. Thanks to the high efficiency, the entire series is able to operate between -40C and 85C wide case temperature range with air convection. The metal housing design and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

The XLG-50-DA2 is equipped with various function options such as dimming methodologies so as to provide the optimal design flexibility for LED lighting systems. This series also complies with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Technical Specifications

  • Rated Output Current: 700 mA
  • Rated Output Power: 50 W
  • Constant Current Region: 60 VDC to 172 VDC
  • Full Power Current Range: 350 mA to 700 mA
  • Open Circuit Voltage: 160 VDC
  • Current Adjustment Range (via built-in pot): 300 mA to 700 mA

Applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED flood lighting
  • Type "HL" for use in Class I, Division 2 hazardous (classified) location

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-50

Compliance

Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, ENEC, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.18 in.
Width:2.48 in.
Length:4.13 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.57 A

Output

Number of Outputs:1
Output Current (Channel 1):0.30 A to 0.70 A
Output Voltage (Channel 1):60 VDC to 142 VDC
Output Connector Type:Stripped and Tinned
Output Current:0.70 A
Output Voltage:See Output Range
Output Range:60 VDC to 142 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90%
Power Rating:50 W
,
