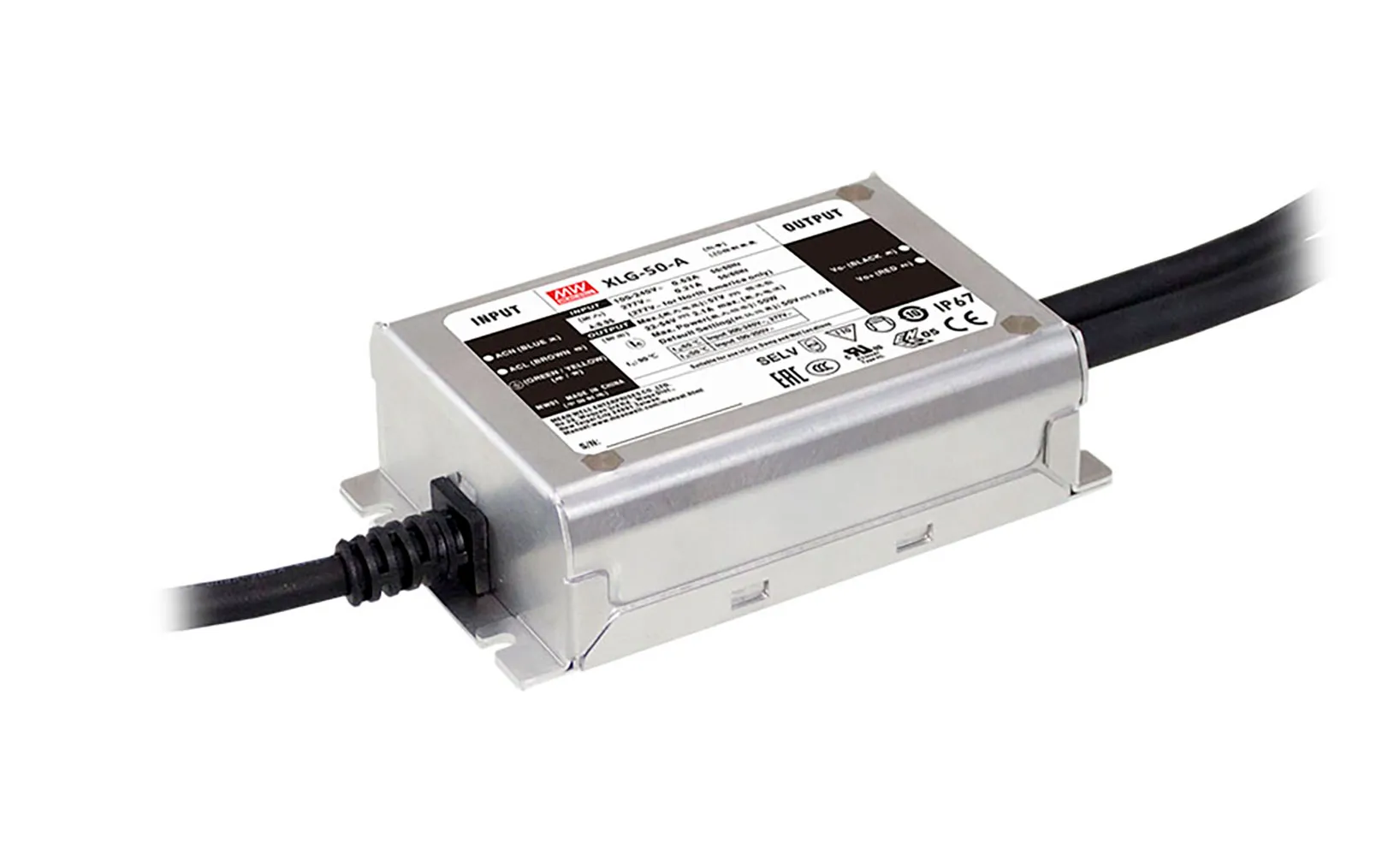

50W Constant Power Mode LED Driver 1A 22VDC to 54VDC Output Current Adjustable

1A @ 22 VDC to 54 VDC

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • Model A - Output current adjustable through built-in potentiometer
  • Constant power mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / standby power consumption <0.5W
  • IP67 rating for indoor or outdoor installations
  • Typical lifetime: >50,000 hours
  • 5 year warranty

Applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type "HL" for use in Class 1, Division 2 hazardous (Classified) locations

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-50

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.18 in.
Width:2.48 in.
Length:4.13 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:0.57 A

Output

Number of Outputs:1
Output Current (Channel 1):0.53 A to 2.10 A
Output Voltage (Channel 1):22 VDC to 54 VDC
Output Connector Type:Stripped and Tinned
Output Range:22 VDC to 54 VDC
Output Voltage:See Output Range
Output Current:1 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90%
Power Rating:50 W
,
