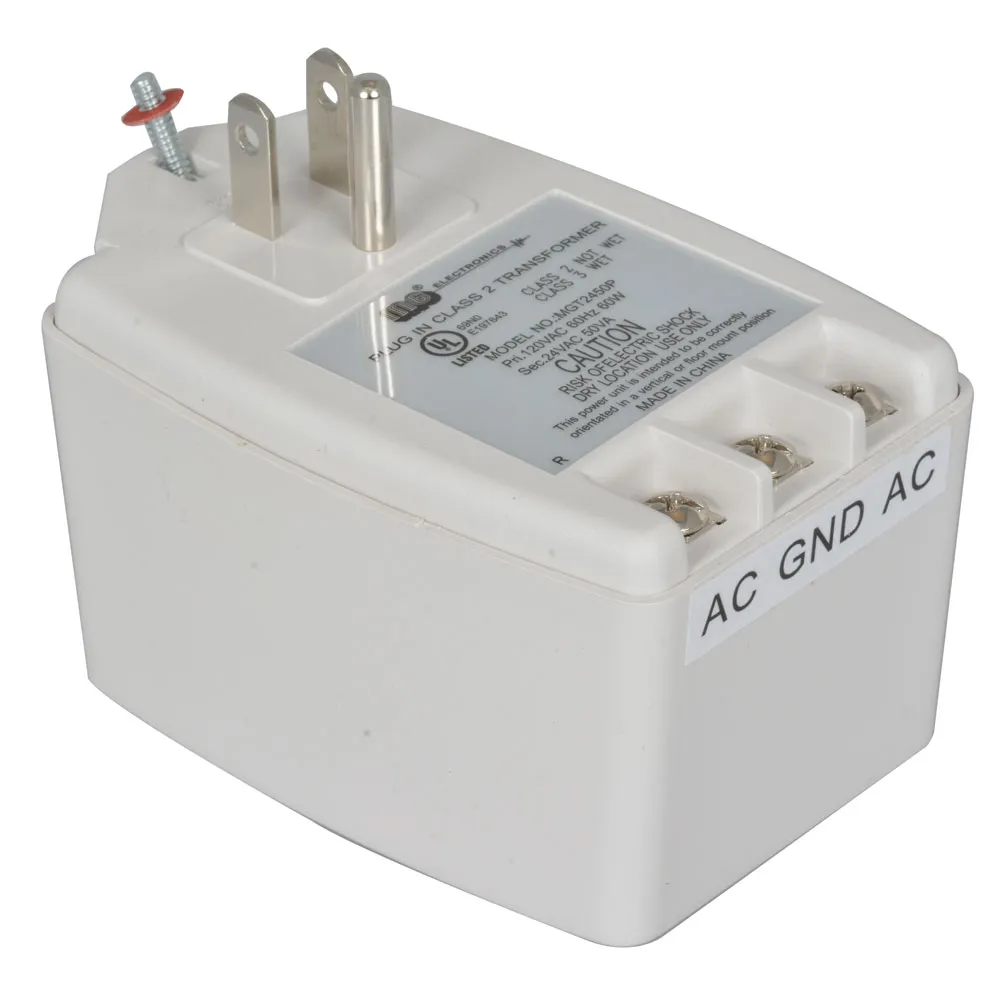

50W 24V 2.1A AC to AC Screw Terminal Wall Transformer


24 Volts @ 2.1 Amps

Features

  • Manufacturer: ReliaPro
  • Model: MGT2450P
  • Output Voltage: 24 VAC
  • Output Current: 2.1 A (2100 mA)
  • Case Size: 3.2" L x 2.2" W x 1.9" H (81mm x 56mm x 48.26mm)
  • Case Color: White
  • Input Range: 120 VAC
  • Two Screw Terminal Output
  • Agency Approvals: UL
  • PTC Fused (Auto resetting fuse and 3rd Ground Prong)
  • Energy Efficiency: Level VI

Overview

This plug-in AC wall transformer converts 120 VAC mains voltage to 24 VAC and provides up to 2.1A. The screw terminal output connection is ideal for a customized wired connection. It is also suitable for devices requiring 24 VAC and 2A.

Product Identification

Manufacturer Series:ReliaPro

Compliance

Agency Approvals:UL

Dimensions & Appearance

Weight:0.9 lbs.
Color:White
Height:1.9 in.
Width:2.2 in.
Length:3.2 in.

Input

Input Voltage:120 VAC

Output

Number of Outputs:1
Output Connector Diameters:Screw Terminals
Output Connector Type:Screw Terminals
Output Voltage:24 VAC
Output Current:2.10 A

Features

Primary Side Connection:NEMA 5-15P
Primary Frequency:60 Hz
AC Cord Length:N/A
Polarity:N/A
Power Rating:50.4 VA
,
