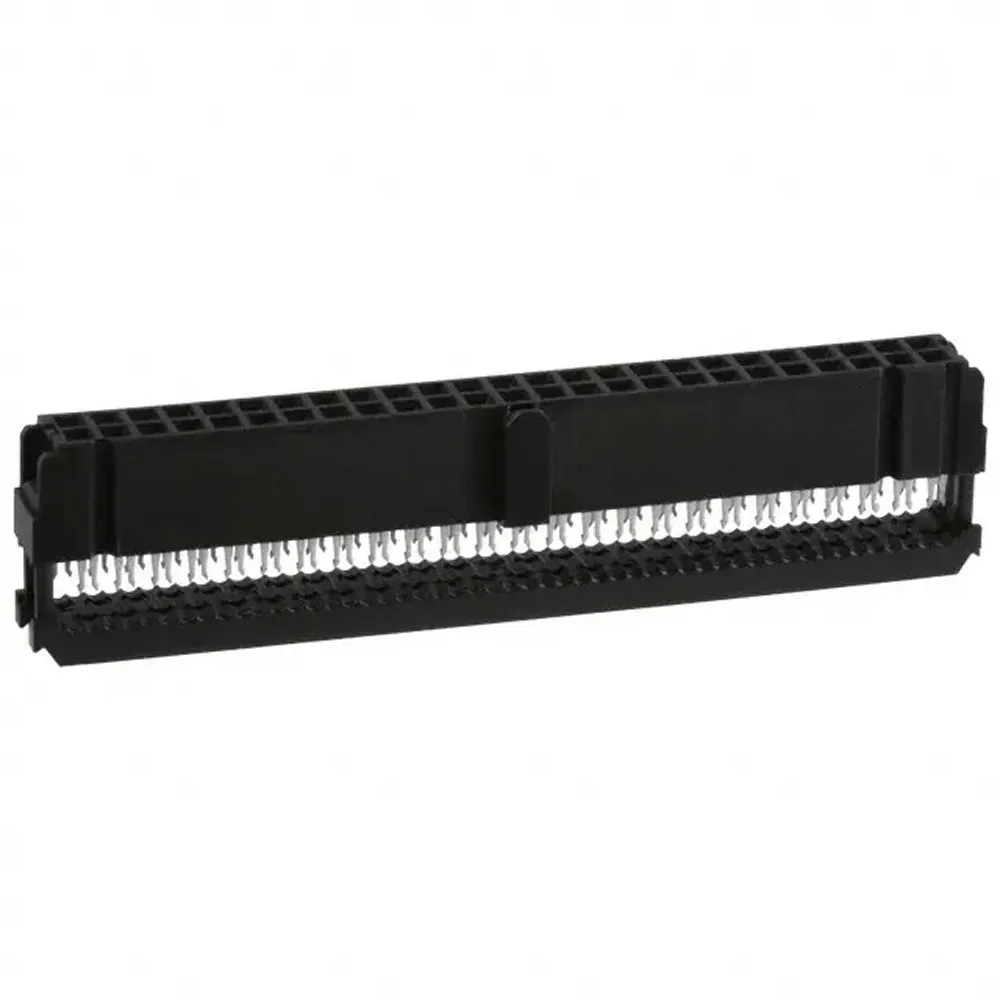

50-Position IDC Receptacle Connector for Ribbon Cable Gold 26-28 AWG

Specifications

  • Series: AMP-Latch
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Pitch - Mating: 0.1" (2.54 mm)
  • Number of Positions: 50
  • Number of Rows: 2
  • Row Spacing: 0.1" (2.54 mm)
  • Number of Positions Loaded: All
  • Mounting Type: Free Hanging (In-Line)
  • Cable Termination: IDC
  • Wire Type: Ribbon Cable
  • Wire Gauge: 26-28 AWG
  • Features: Feed Through, Polarizing Key
  • Contact Finish: Gold
  • Contact Finish Thickness: 15 µin (0.38 µm)
  • Color: Black
  • Base Number: 1658621

Dimensions & Appearance

Body Orientation:Free-Hanging

Features

Terminal Pitch:0.1 in, 2.54 mm
Number of Rows:2
Housing Color:Black
Maximum Contact Resistance:20 mOhm
Contact Plating:Gold Over Nickel
Contact Material:Phosphor Bronze
Number of Contacts:50
Housing Material:Thermoplastic
Gender:Receptacle
Current Rating:1 A
Voltage Rating:250 VAC, 250 VDC
,
