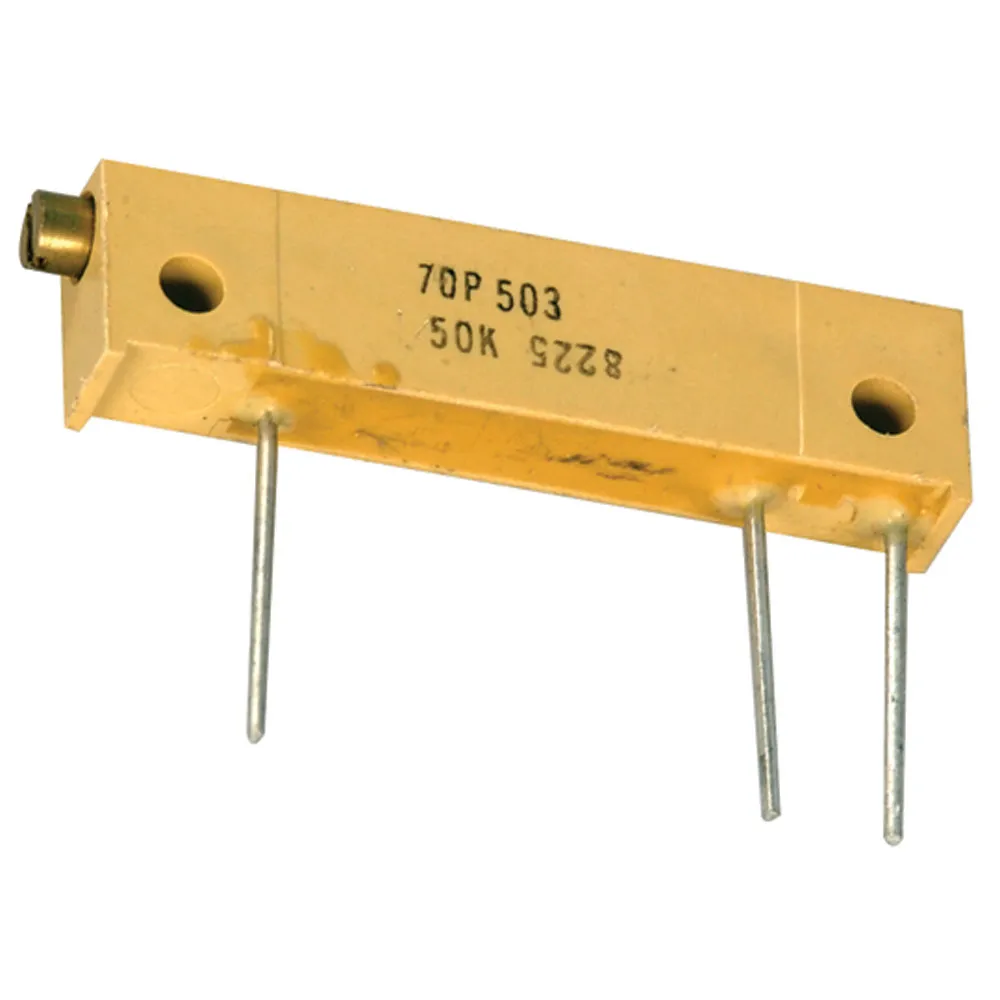

50kΩ Rectangular Cermet Trimmer Potentiometer


Features:

  • Resistance range: 10Ω to 50kΩ
  • Tolerance: 10%
  • Power rating: 0.5W @ 70°C
  • Number of turns: 20 turns nominal
  • Insulation resistance: 1000MΩ
  • Operating temperature range: -55°C to +125°C
  • Size: 1.25"L x 0.20"W x 0.33"H
  • Connection: In-line PC pins

    • Product Identification

    Product Type:Trimmer
    Manufacturer Series:3059
    Family:P

    Dimensions & Appearance

    Width:2.49 mm
    Height:8.25 mm
    Length:31.75 mm
    Shaft Diameter:2.79 mm
    Mounting:Through Hole

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-55°C

    Features

    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Side
    Number of Turns:20
    Resistance (Ohm):50000
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Resistance:50 KOhm
    Actuator Type:Side Slot
    ,
