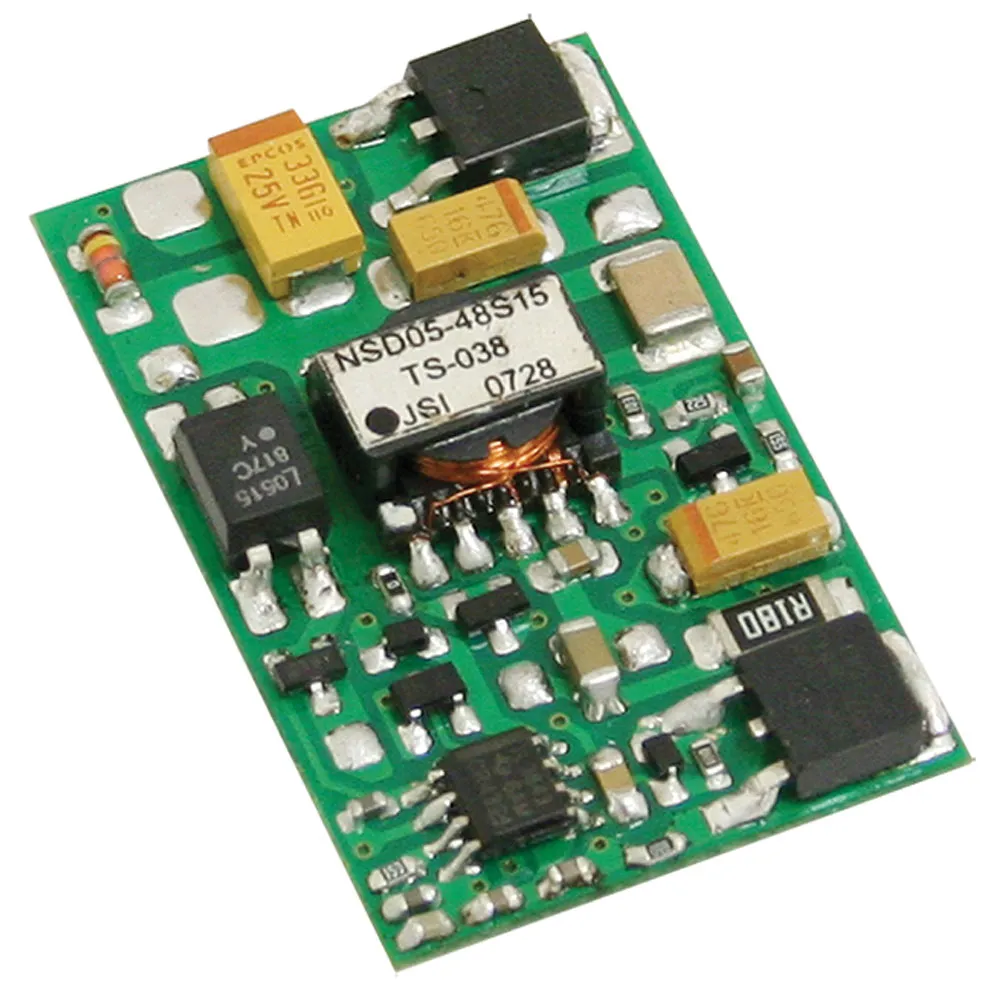

5.04W Regulated Single Output DC-DC Converter


Output: 12 Volts @ 0.42 Amps

Features:
  • Input voltage range: 9.2-36VDC
  • Built-in remote on/off control
  • Cooling by free air convection
  • Protections: Short-circuit, overload, over-voltage
  • 100% full load burn-in test
  • 1000VDC I/O isolation
  • Efficiency: 82%
  • Compact size: 1.6"L x 1.0"W x 0.327"H
  • Weight: 0.25 oz. (7 grams)
  • 2-year warranty

    • Product Identification

    Product Type:DC-DC Regulated Single Output Power Supply SMPS
    Manufacturer Series:NSD05

    Compliance

    Agency Approvals: CB, CE, EAC, EN, TUV, TUV, CB, CE, EN, EAC

    Dimensions & Appearance

    Height:0.327 in.
    Color:Green
    Mounting:Through Hole
    Width:1 in.
    Length:1.6 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Voltage Range:9.2 VDC to 36 VDC
    Input Voltage:12 VDC
    Maximum Input Current:0.7 A

    Output

    Number of Outputs:1
    Output Voltage:12 VDC
    Output Connector Type:PC Pins
    Output Current:0.42 A

    Features

    Pins:5
    Efficiency:82%
    Power Rating:5.04 W
    ,
