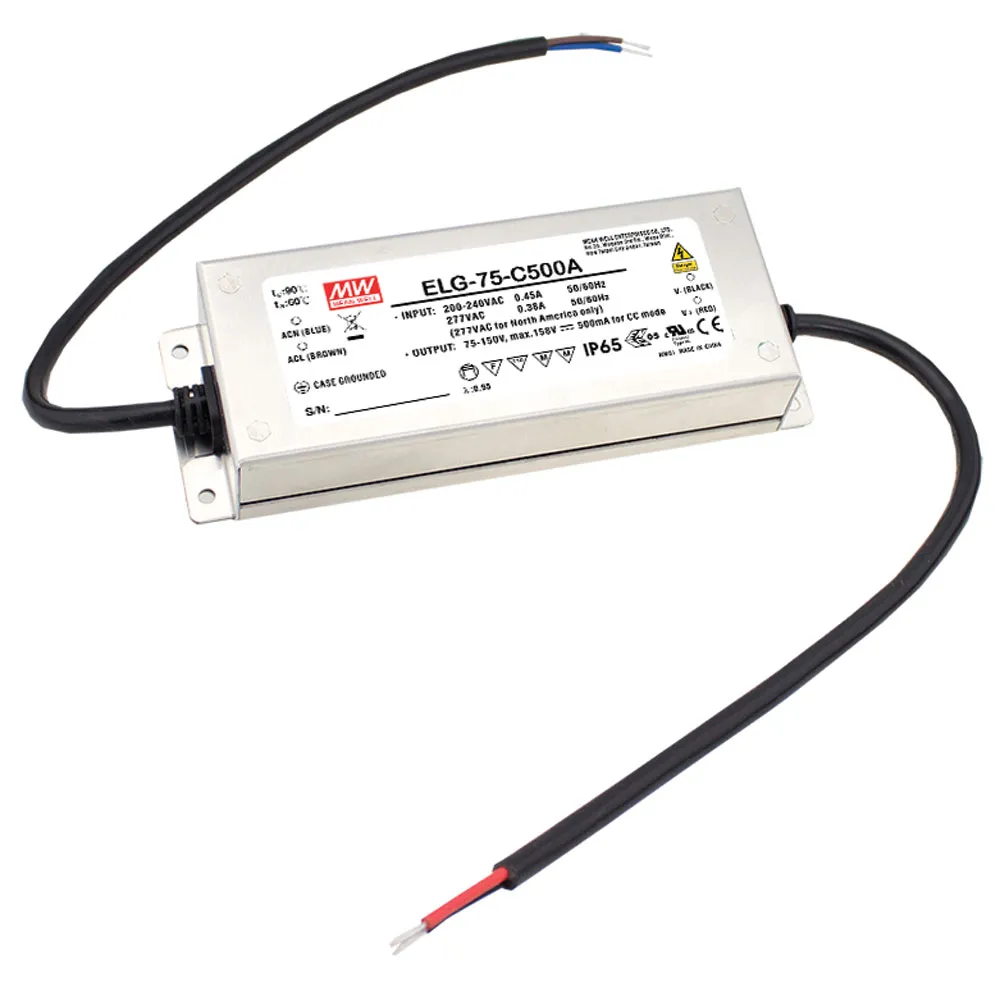

AC to DC Switching LED Power Supply 75 to 150 Volts 500 mA 75 Watt

75 to 150 Volts @ 500 Milliamps

Specifications

  • Output Power (W): 75
  • Size (L x W x H) inches: 7.1 X 2.5 X 1.4
  • Efficiency: 0.91%
  • Agency Approvals: UL/CUL/CE/CB/ENC/CCC
  • Frequency Range: 47 to 63 Hz
  • Voltage Range: 100 to 305 VAC
  • Constant current mode output
  • Io adjustable through built in potentiometer
  • Current Adjustability Range: 250 to 500 mA
  • Metal housing design
  • Built in active PFC function
  • Rating: IP 67 for outdoor installations
  • Typical lifetime > 50,000 hours
  • No load / standby power consumption < 0.5 watts
  • Warranty: 5 years

    • Product Identification

    Manufacturer Series:ELG-75-C
    Product Type:Auto Switching SMPS

    Compliance

    Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.4 in.
    Width:2.48 in.
    Length:7.09 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:100 VAC to 305 VAC
    Maximum Input Current:0.7 A

    Output

    Number of Outputs:1
    Output Connector Type:Stripped and Tinned
    Output Current:0.50 A
    Output Voltage:See Output Range
    Output Range:75 VDC to 150 VDC

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    IP Rating:IP65
    Efficiency:91%
    Power Rating:75 W
    ,
