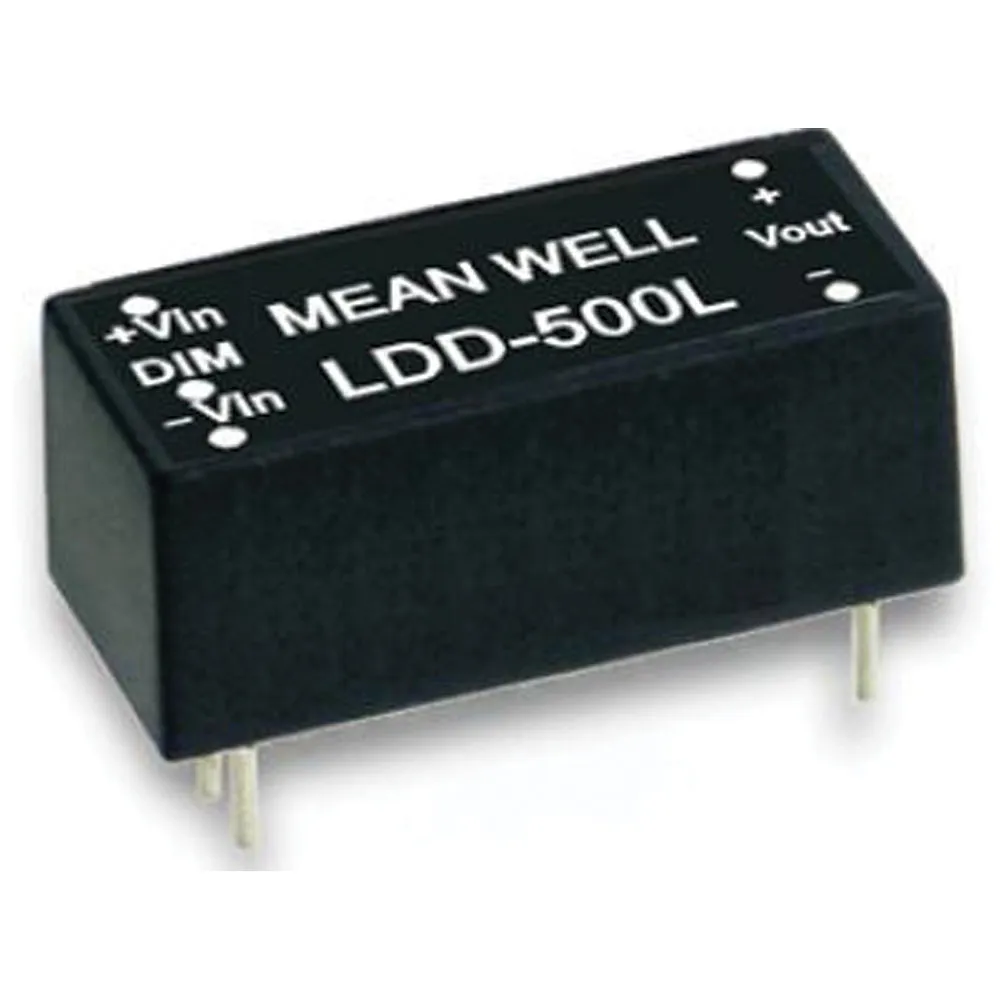

500mA 2-32 VDC DC-DC Constant Current Step-Down LED Driver 9-36Vin Pin Style

0.5 Amps @ 2 to 32 Volts DC

Features

  • DC/DC step-down converter
  • Constant current output: 500 mA
  • Wide input voltage: 9 to36 VDC
  • Wide output LED string voltage: 2 to 32 VDC
  • High efficiency: 95%
  • Built-in EMI filter, comply with EN55015 and FCC part 15 without additional input filter and capacitors
  • Built-in PWM dimming and remote ON/OFF control
  • Protections: Short circuit, over temperature
  • Cooling by free air convection
  • Fully encapsulated with IP67 level for pin style
  • Compact size: 0.89" x 0.39" x 0.35
  • Low cost, high reliability
  • Suitable for driving LED illumination
  • 3 year warranty

Product Identification

Product Type:Constant Current Step-Down SMPS
Manufacturer Series:LDD-L

Compliance

Agency Approvals: CE, FCC, FCC, CE

Dimensions & Appearance

Style:Encapsulated
Color:Black
Height:0.33 in.
Width:0.39 in.
Length:0.89 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:N/A
Input Voltage:9 VDC to 32 VDC
Maximum Input Current:0.5 A

Output

Number of Outputs:1
Output Range:2 VDC to 32 VDC
Output Connector Type:PC Pins
Output Current:0.50 A
Output Voltage:See Output Range

Features

PFC Function:No
IP Rating:IP67
Minimum Isolation Voltage:N/A
Efficiency:95%
Power Rating:N/A
,
