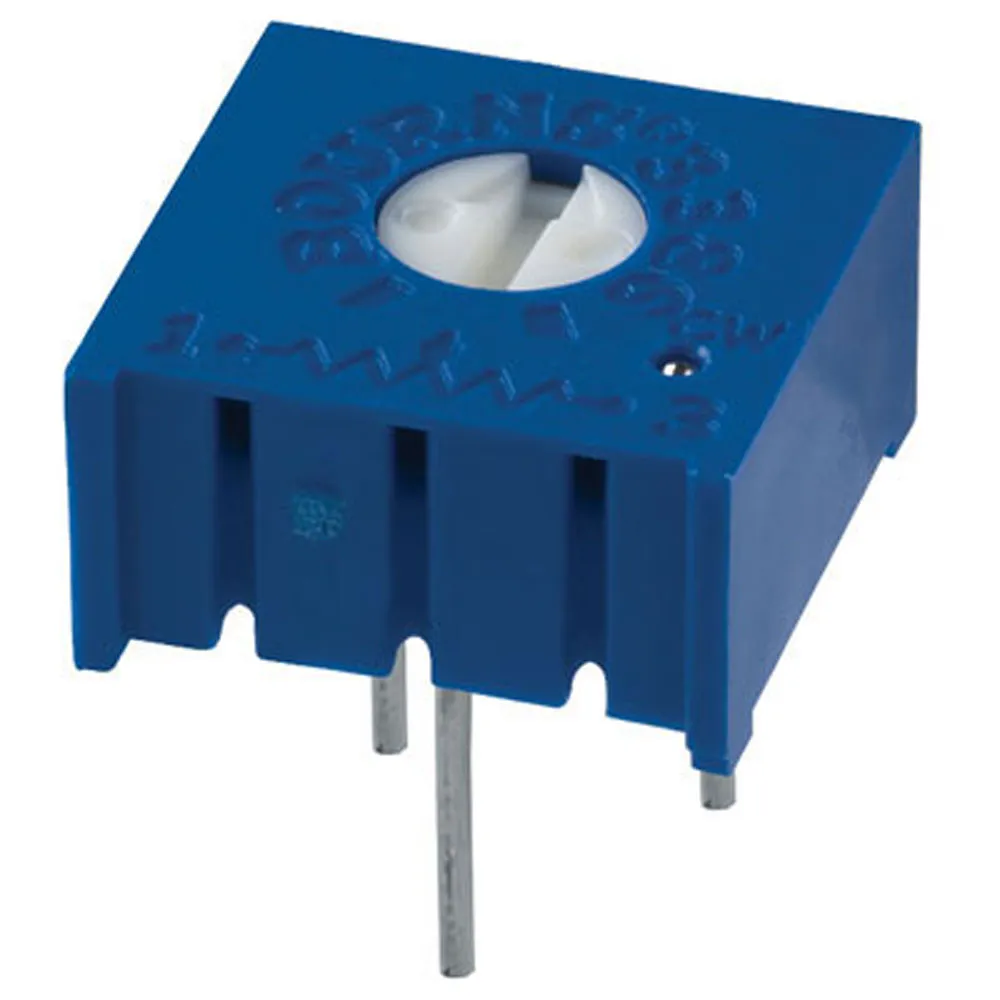

500kΩ Square Sealed Cermet Trimmer Potentiometer


Features:

  • Resistance: 10Ω to 500kΩ
  • Tolerance: 10%
  • Power rating: 0.5W @ 70°C
  • Single turn
  • Insulation resistance: 1000MΩ min.
  • Operating temperature range: -55°C to +125°C
  • Size: 0.375"L x 0.375"W x 0.19"H
  • Top adjustment
  • Connection: Solder pins

    • Product Identification

    Family:F
    Product Type:Trimmer
    Manufacturer Series:3386

    Dimensions & Appearance

    Mounting:Through Hole
    Height:4.83 mm
    Width:9.53 mm
    Length:9.53 mm
    Shaft Diameter:3.15 mm

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-55°C

    Features

    Number of Turns:1
    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Top
    Resistance (Ohm):500000
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Actuator Type:Top Slot
    Resistance:500 KOhm
    ,
