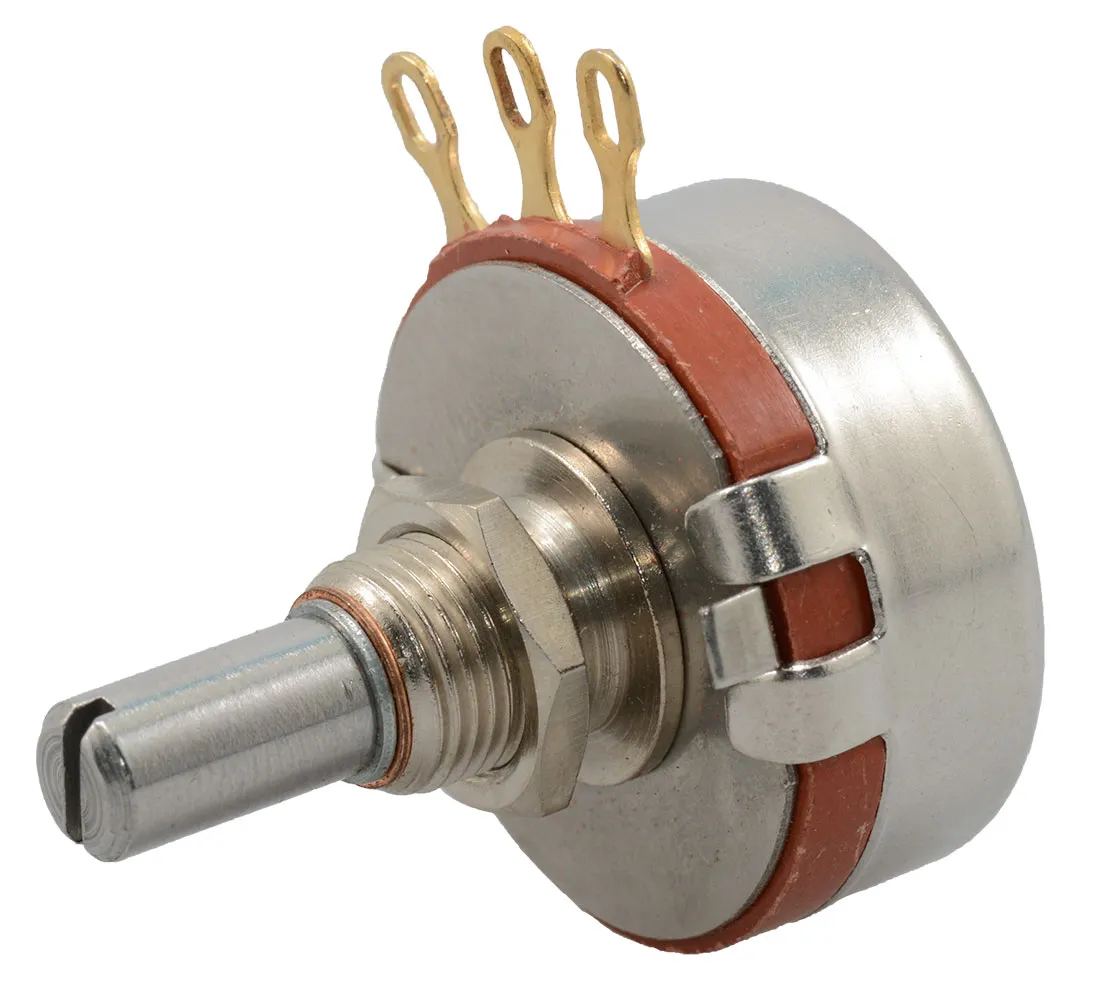

500 Ohm Linear Potentiometer 1 Turn Conductive Plastic 2W Panel Mount Solder Lug

Conductive plastic potentiometers convert rotary motion into a change of resistance, supplying a smooth transition of voltage or current levels. The resulting voltage output may be used to control position transducers in a wide variety of potential applications. The RV4 series is a Military version of the 380 series and meets MIL-R-94 requirements (non RoHS compliant).

Features

• Cost-effective and provides good performance at a reasonable price
• Resistance: 500 ohm
• Power rating: 2 watt
• Tolerance: 10%
• Taper: Linear
• Rotation: 312°
• 7/8" screwdriver slotted shaft FMS
• 3/8" long bushing (32-NEF 2A thread)
• 53C32K

Applications

• Industrial, commercial and transportation
• Audio and visual equipment (e.g., musical instruments, sound mixers, projectors, amplifiers)
• Foot pedal controls (e.g., guitars, sewing machines, woodworking equipment)
• Machine controls (e.g., joysticks)
• Welding equipment (e.g., MIG wire feed, foot pedal controls, adjustment knobs)
• Foot pedal controls (e.g., golf carts)
• Gear shifter, joystick, and throttle position (e.g., construction/agricultural vehicles)
