5 Volt 1.4 Amp 7 Watt AC-DC Switching LED Power Supply

5 Volts DC @ 1.4 Amps

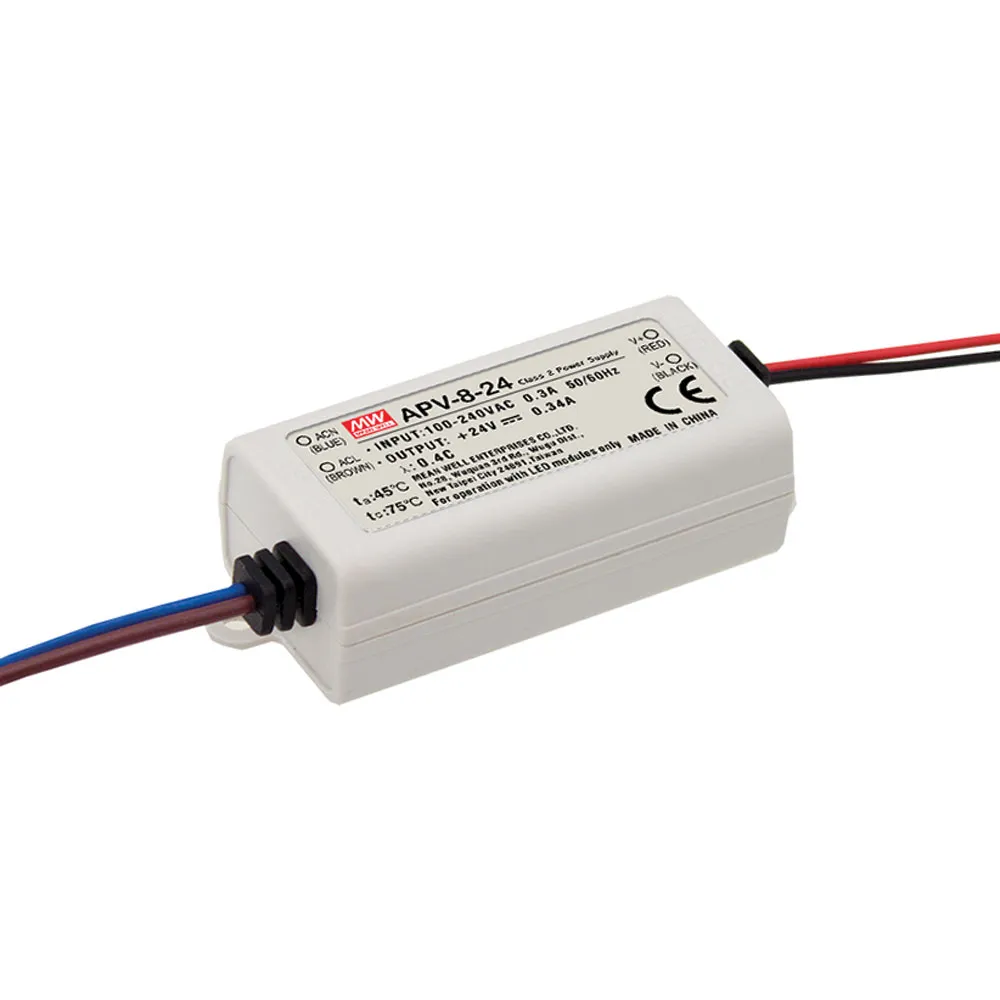

The APV-8 series is a 7W AC/DC constant voltage mode single output LED power supply. It accepts the full range input 90-264 VAC and provides three models with different output voltage, 5V, 12V, and 24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, the APV-8 ideally fits the entry-level LED applications.

Features

  • Output connector: (2) wires, 20 AWG stripped and tinned
  • Input connector: (2) wires, 18 AWG stripped and tinned
  • Constant voltage design
  • Universal AC input / Full range
  • Class II power unit, no FG (field ground)
  • Fully isolated plastic case
  • IP30 design
  • Small and compact size
  • Cooling by free air convection
  • Protection: Short circuit / Overload / Over voltage
  • No load power consumption <0.5W
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 year warranty

    Applications

  • Indoor LED lighting
  • LED decorative lighting
  • LED office lighting
  • LED signage

    Related Products

  • APV-8-12 (12 VDC @ 0.67A) Jameco P/N: 2226290
  • APV-8-24 (24 VDC @ 0.34A) Jameco P/N: 2226302
  • APC-8 Series (8 watt constant current series)

    • Product Identification

    Manufacturer Series:APV-8
    Product Type:Auto Switching SMPS

    Compliance

    Agency Approvals: CE, CUL, EAC, EN, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:White
    Height:0.87 in.
    Width:1.18 in.
    Length:2.36 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Maximum Input Current:0.15 A
    Input Voltage:90 VAC to 264 VAC

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Output Connector Type:Stripped and Tinned
    Output Current:1.40 A
    Output Range:N/A

    Features

    PFC Function:No
    IP Rating:IP42
    Minimum Isolation Voltage:3750V
    Efficiency:74%
    Power Rating:7 W
    ,
