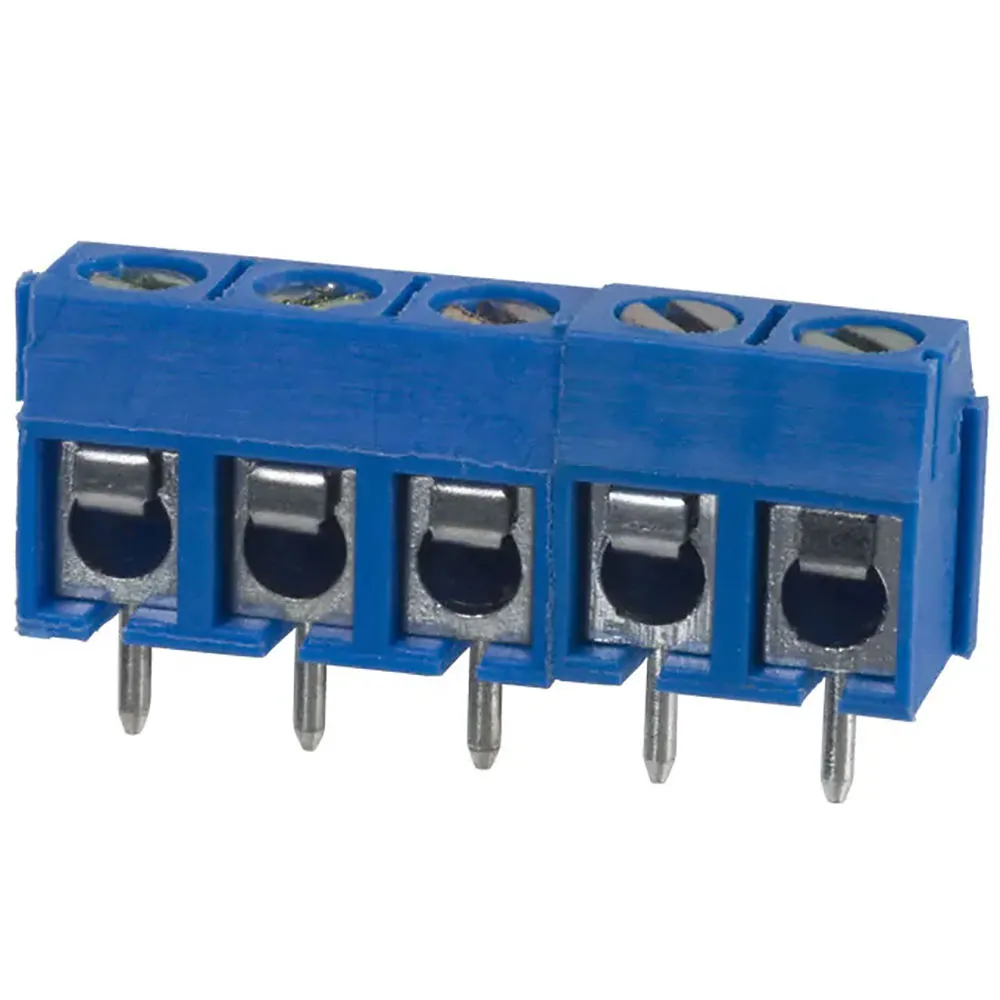

5 Position Wire to Board Terminal Block Horizontal with Board 0.2" (5.08mm) Through Hole

Specifications

  • Series: OSTTC
  • Positions Per Level: 5
  • Pitch: 0.2" (5.08 mm)
  • Mating Orientation: Horizontal with Board
  • Wire Gauge: 14-22 AWG
  • Mounting Type: Through Hole
  • Wire Termination: Screw - Leaf Spring, Wire Guard
  • Feature: Interlocking (Side)
  • Color: Blue
  • Operating Temperature: -30°C to 105°C
  • Housing Material: Thermoplastic
  • Contact Material - Plating: Tin plated
  • Clamp Material - Plating: Stainless Steel
  • Screw Material - Plating: Steel - Zinc Plated
  • Torque - Screw: 0.3 Nm (2.6 Lb-In)
  • Screw Thread: M2.6
  • Number of Levels: 1
  • Current: 15 A
  • Voltage: 300 V

Dimensions & Appearance

Mounting:Through Hole
Body Orientation:Straight

Features

Number of Rows:1
Number of Positions:5
Top Termination:Screw, Leaf Spring, Wire Guard
Pitch:0.200 in., 5.08 mm
Gender:Female
Description:Header
Voltage Rating:300 VAC
Current Rating:15 A
,
