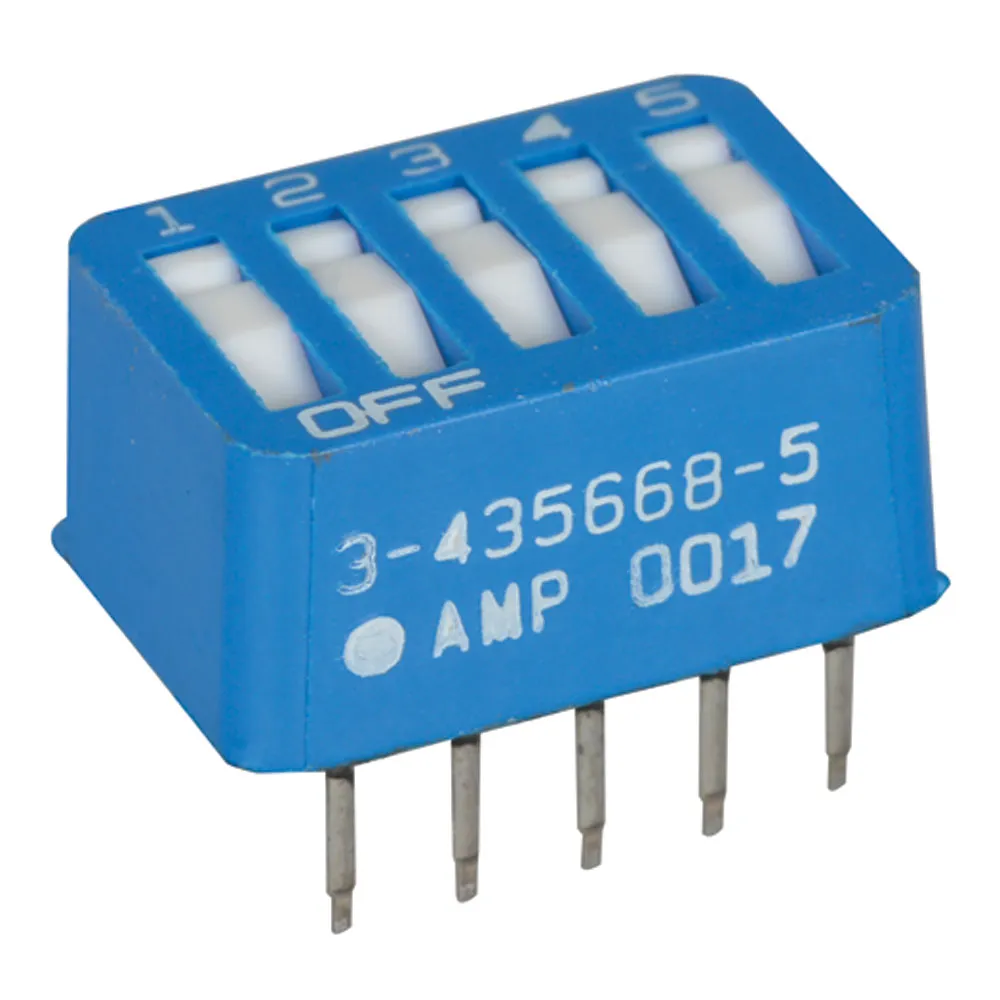

Standard Rocker-Flush DIP Switch

Switch Contacts: SPST

Features:

  • 10-pin, 5-position
  • Compatible socket: 112214

Product Identification

Family:7100
Product Type:DIP Switch

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:14.73 mm
Height:7.37 mm
Length:9.65 mm

Features

Number of Positions:5
Seal Description:Tape
Total Pitch:10.16 mm
Terminal Type:PC Pins
Pitch:2.54 mm
Contact Form:SPST
Actuator Type:Rocker Flush (Standard)
,
