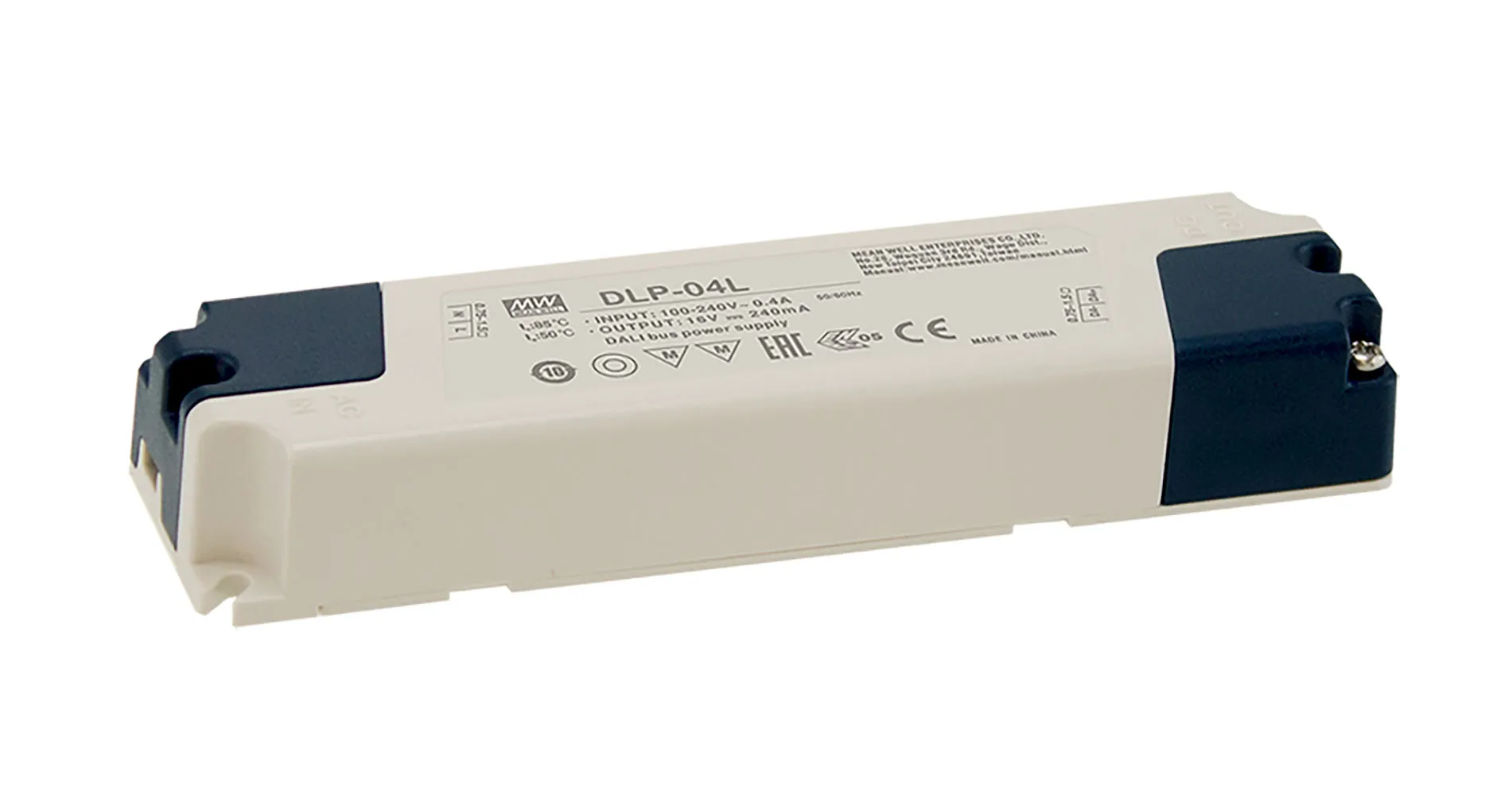

4W AC-DC Enclosed Power Supply 16V 240mA

16 Volts @ 240 mAmps

Features:

  • Universal AC input range
  • Protections: Short-circuit, Overvoltage
  • Isolation Class II
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • 100% full load burn-in test
  • 3-year warranty

Applications

  • DALI Bus
  • DALI Bus Powered Units

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:DLP-04

Compliance

Agency Approvals: EAC, ENEC, CE

Dimensions & Appearance

Style:Enclosed
Color:White
Height:0.87 in.
Width:1.5 in.
Length:5.71 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.1 A
Input Voltage:90 VAC to 264 VAC

Output

Number of Outputs:1
Output Current (Channel 1):0.24 A
Output Voltage (Channel 1):15.3 VDC to 18.7 VDC
Output Current:0.24 A
Output Connector Type:Screw Terminal Block
Output Voltage:16 VDC

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:%
Power Rating:3.84 W
,
