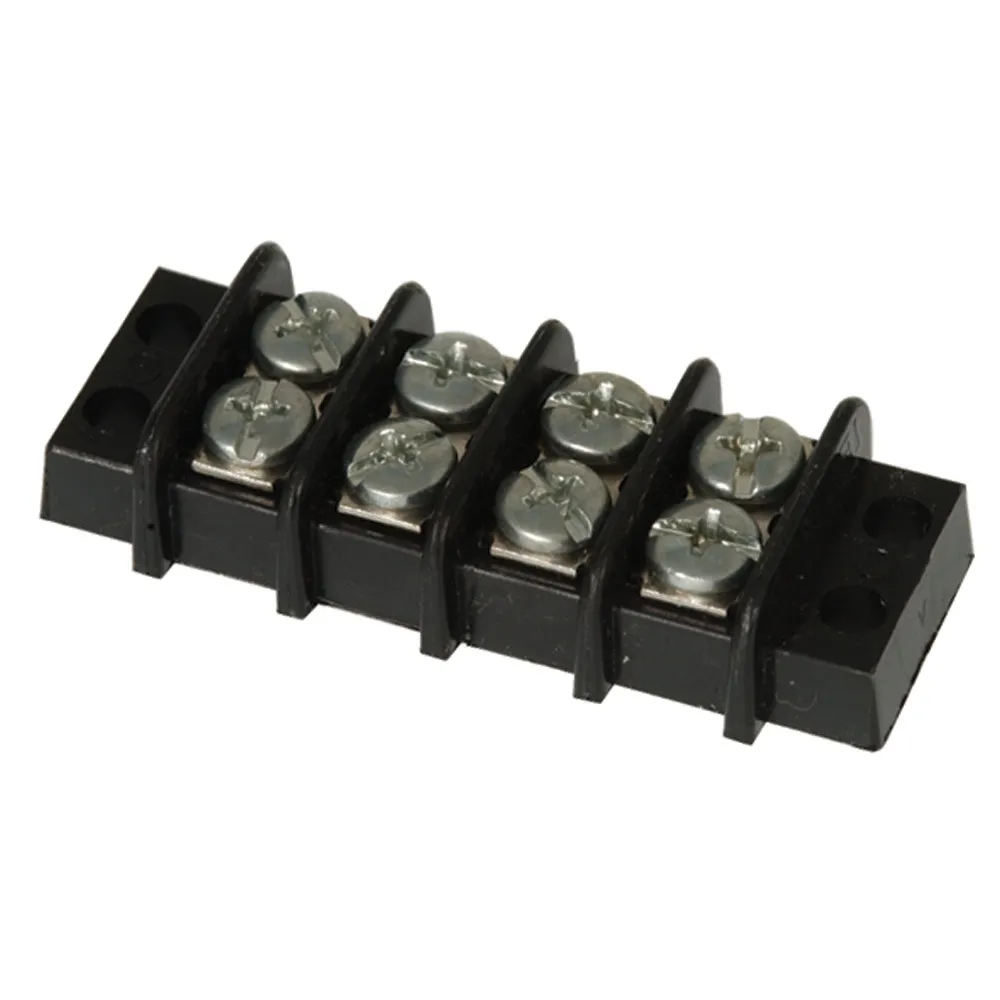

4-Position Barrier Strip Terminal Block

8 Contacts, 4 Positions

These series 77 screw terminals are ultrasonically welded into the thermoplastic insulator. The terminal can not be twisted or rotated even under excessive force.

Features:

  • Positions: 4
  • Pitch: 0.375" (9.53mm)
  • Low profile
  • Current rating: 15A
  • Double row
  • Terminals: Brass, nickel-plated
  • Insulator: Thermoplastic, UL94V0
  • Screws: #6-32 BH, Phillips/Slotted, Steel/Zinc chromate-plated
  • Sealed

Product Identification

Product Type:Dual Row Barrier Strip
Manufacturer Series:38770

Dimensions & Appearance

Depth:11.2 mm
Length:54.7 mm
Mounting:Panel Mount
Body Orientation:Straight

Operating conditions

Maximum Operating Temperature:148°C
Minimum Operating Temperature:-48°C

Features

Number of Rows:2
Bottom Termination:Closed Bottom w/ Flange
Number of Positions:4
Housing Color:Black
Top Termination:Screw, 6-32
Pitch:0.375 in., 9.53 mm
Housing Material:Polybutylene Terephthalate
Contact Material:Steel
Wire Gauge (AWG):12-22
Contact Plating:Zinc
Voltage Rating:250 VAC
Current Rating:15 A
,
