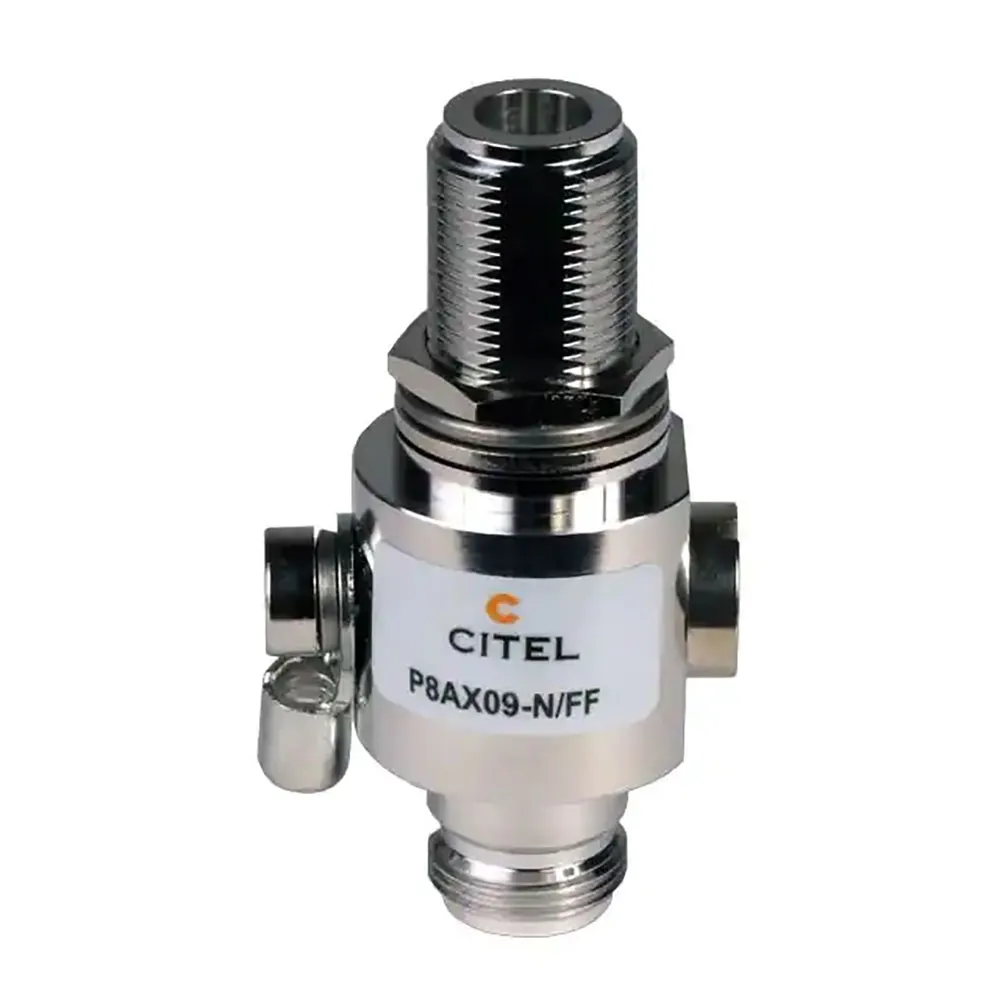

4GHz Bi-Directional Coaxial Surge Protector 48V RF 20kA

Specifications

• Frequency range: DC-3.5 GHz
• Insertion loss: < 0.2 dB
• Return loss: > 20 dB
• Impedance: 50 ohms
• VSWR: <1.2:1
• Max. load current (IL): 10 A
• Protection mode(s): Common mode
• Impulse current (Iimp): 1 kA
• Nominal discharge current (In): 5 kA
• Max Power: 25 W
• DC Pass (ZERTZAERTZERTZER): True
• Insulation resistance (IR): 10 GOhms
• RF SPD Type: UL497E Listed
• Volts (V): 48
• Voltage Type: RF
• Wires: 1W+Ground
• Line Current Max (A): 10
• Power Rating (W): 25
• Ambient Min (C): -40
• Ambient Max (C): +85
• Residual Voltage (V): 700
• IN (kA): 10
• IMAX (kA): 20
• Frequency Range (GHz): 0 to 4
• Insertion Loss (@ Freq) (db): <0.2
• Return Loss (db): >22
• VSWR: <1.25:1
• Impedance (#8486;): 50
• Outdoor Application: Yes
• Contacts: Bronze/Surface Au-Ag
• Weight: 0.135 kg
• Technology: GDT
• Connection Method: Series Connector, Bi-Directional
• Connector Type: N
• Gender: Female to Female
• Mounting: Bulkhead, Optional Bracket
• Material: Cu, Zn, Sn plated Brass, PTFE
• NEMA Rating (IP Rating): NEMA 6P (IP67)
