4-Core Balanced DMX Cable Foil and Braided ShieldS 24 AWG 500 Foot Spool D1000
Features
- Characteristic Impedance: 120 ohms
- Capacitance Between Conductors: 39.2pF/m
- Capacitance Between Conductors and Shield: 74.9pF/m
- Conductor DC Resistance: < 87.5 ohm/km
- Shield DC Resistance: < 18.1 ohm/km
- Voltage Breakdown: 300 V
- Insulation: PE
- Shield: (1) Braided 16*9/0.10 Tinned Copper (1) Alumnium Foil
- Jacket: PVC
- Conductors: 20/.12mm BC OFC
Overview
Professional Series DMX bulk wire perfect for creating custom cable lengths for your lighting rigs.

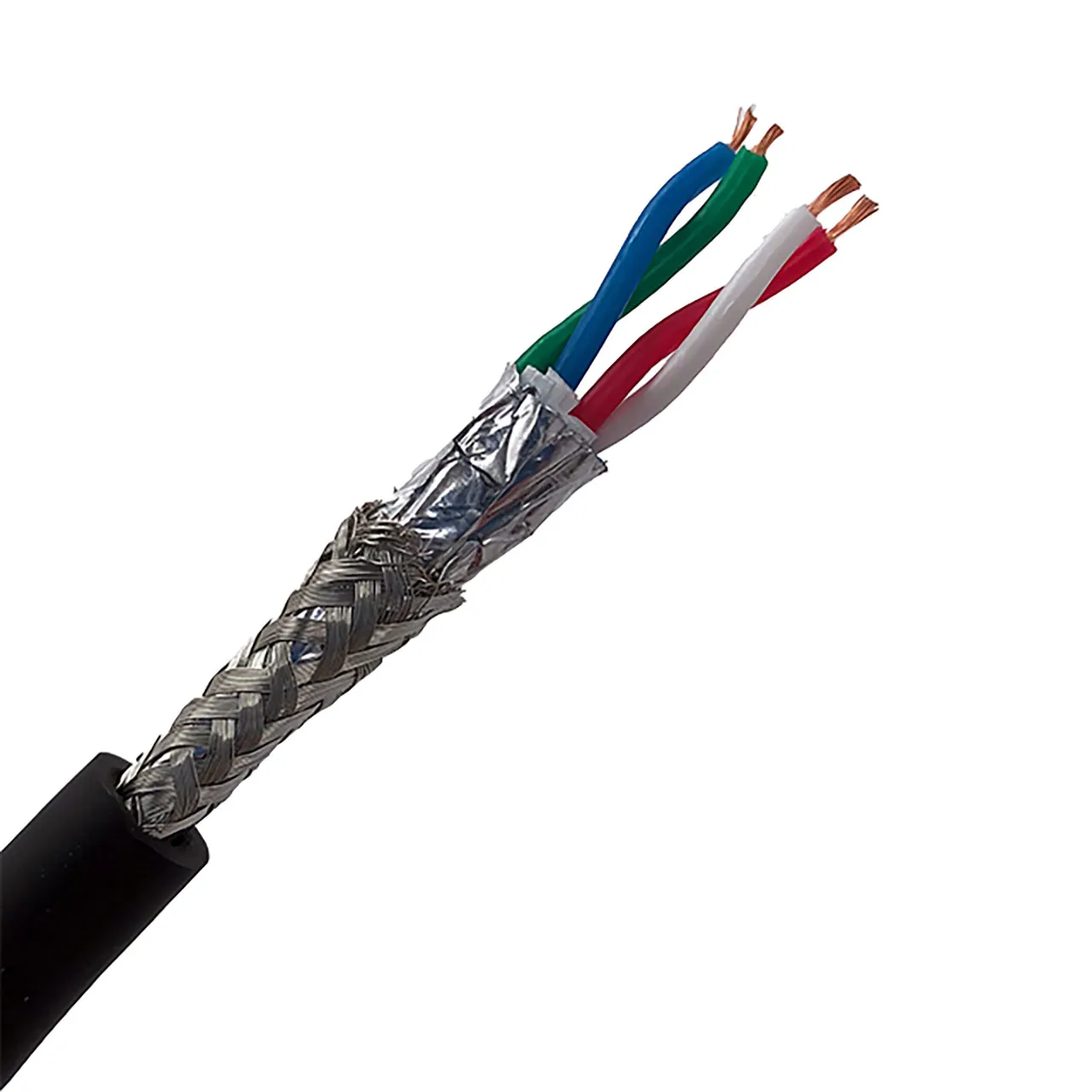

Designed for perfect data and control transmission, this DMX cable features 4 bare copper conductors arranged in two high quality twisted pairs insulated using PE and protected by an aluminum foil shield and a tinned copper braided shield. It’s durable and flexible PVC jacket protects the interior of the cable from whatever life throws at it.
Along with a 120 Ohm characteristic impedance, this cable meets all the ESTA guidelines for a True DMX512 cable.
NOTE: Not rated for in-wall use.
Applications
- Pre-wiring of modular truss or sound systems for quick set up
- Custom Shop Cable
- Custom lengths for permanent installations
- DIY cables for personal use
