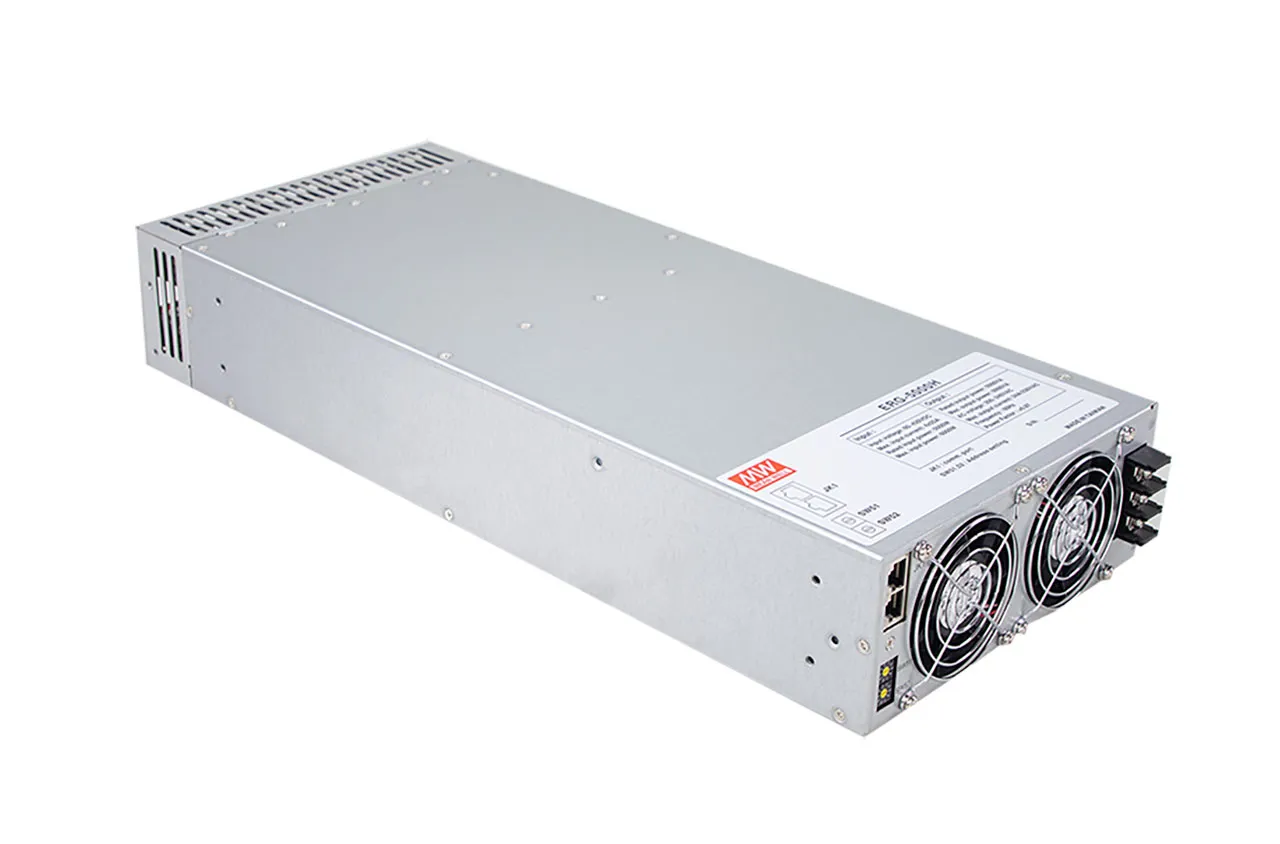

4-Channel 5KW Energy Recycling Grid-Type Power Inverter 60-420VDCin NEWSOK

Features

• DC Input Connector: NEWSOK
• Wide input voltage range: 60 VDC to 420 VDC
• High Efficiency up to 91%
• Modular design for flexible configuration
• Flexible CC/CV operation modes
• Remote control and monitoring by CANBus protocol via CMU2A control console (sold separately)
• Maximum 64 units ERG-5000 series that can be connected
• Protections: Over voltage, under voltage, over temperature, over power, grid fault, communication error
• 5 year warranty

Overview

ERG-5000 series is a grid type energy recycling power inverter that supports 5KW (5000 Watts) rating and maximum of up to 6KW input. It can achieve high efficiency up to 91%. CC (constant current) and CV (constant voltage) modes are selectable and four input channels design that can be used independently or connected in series or parallel offer flexible combinations for various applications.

What's more, the ERG-5000 series also provides remote control and monitoring functions by using CMU2A (sold separately) or the CANBus protocol for data analysis and remote monitoring. ERG-5000 supports 10 VDC to 60 VDC input voltage and the ERG-5000H supports 60 VDC to 420 VDC input voltage.

Technical Specifications

• DC Input
• Rated Input Power (typ.): 5000 W (1250 W x 4CH)
• Max. Input Power (typ.): 6000 W (1500 W x 4CH)
• Input Voltage Range: 60 VDC to 420 VDC
• Rated Input Current: 21 A x 4CH (typ.); 25 A x 4CH (max.)
• DC Input Connector: NEWSOK
• AC Output
• Rated Output Power (typ.): 4500 to 4600 VA (for input 60-420 VDC)
• AC Voltage Range: 180 to 264 VAC ±5 VAC, single phase
• AC Grid Frequency: 47 to 63 Hz
• Max Output Current (typ.): 24 A @ 230 VAC
• PFC: (@ rated power): > 0.97
• THD (@ rated power): <5%
• Efficiency: 91% @ 380 VDC input/5000W
• Energy Recycling Ratio (typ.): 88% @ 380 VDC input/5000W

Applications

• Battery test or power supply aging system
• Energy recycling system
• Connector mechanical test
