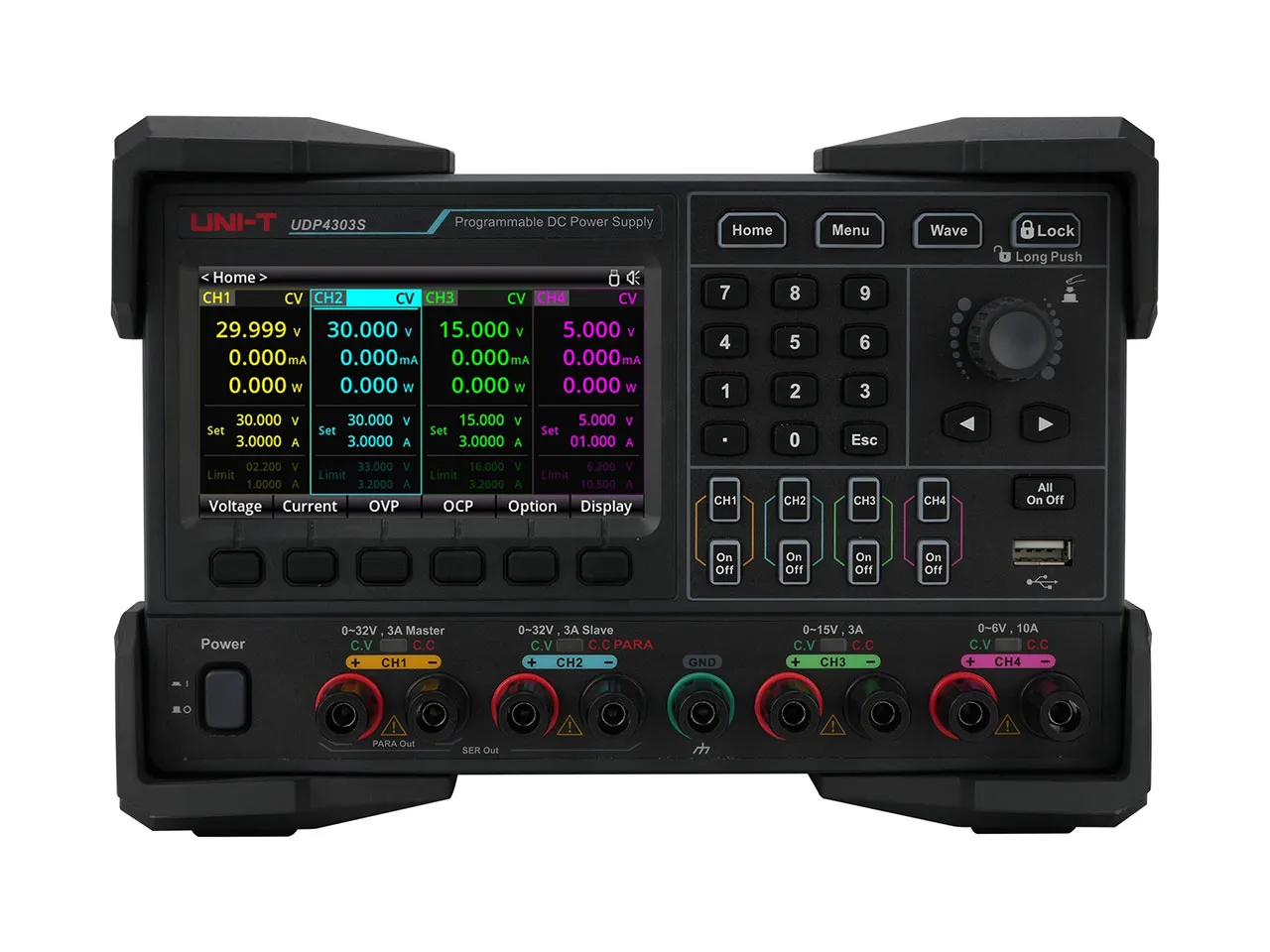

4Ch 297W Precision-Series Programmable Linear DC Power Supply

Features

  • Channels: 4Ch
  • Warranty: 3 years
  • Interface: USB, LAN, RS232, Dig I/O, Sense
  • Prop65: No
  • Reach: No

Overview

The latest UNI-T Linear DC Power Supply combines a variety of outputs, very high resolution, and great ease of use features, all in one affordable 3U instrument.

Technical Specifications

  • Other Accessories: USB2.0 printing cable, Digital IO plug
  • Accessories Universal Accessories: Power cord
  • Packing List: English download guide, multi-language safety manual, calibration report (COC)
  • Software Downloads
  • T Screen: No
  • Max V DC: 32V
  • Max A DC: 3A
  • Watts: 297W
  • Max V Res: 1mV
  • Max A Res: 1uA
  • Programmable?: Yes
  • Power Supply Type: DC Linear

Product Identification

Product Type:Programmable Linear DC Power Supply

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Depth:18 in.
Height:12 in.
Width:14 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:120 VAC, 220 VAC

Output

Number of Outputs:4
Output Current:0 A to 3 A (x3), 0A to 10 A
Output Voltage:0 VDC to 30 VDC (x2), 0 VDC to 15 VDC, 0 VDC to 6 VDC
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:297 W
,
