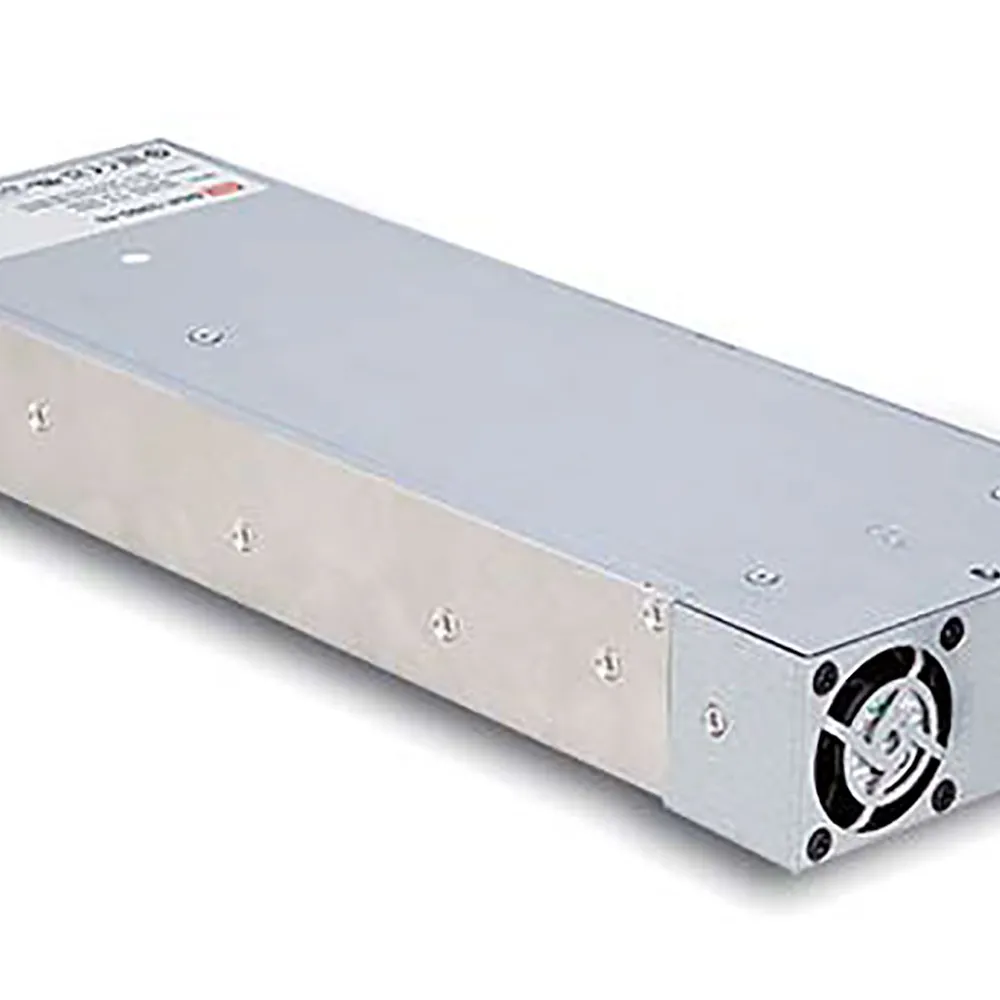

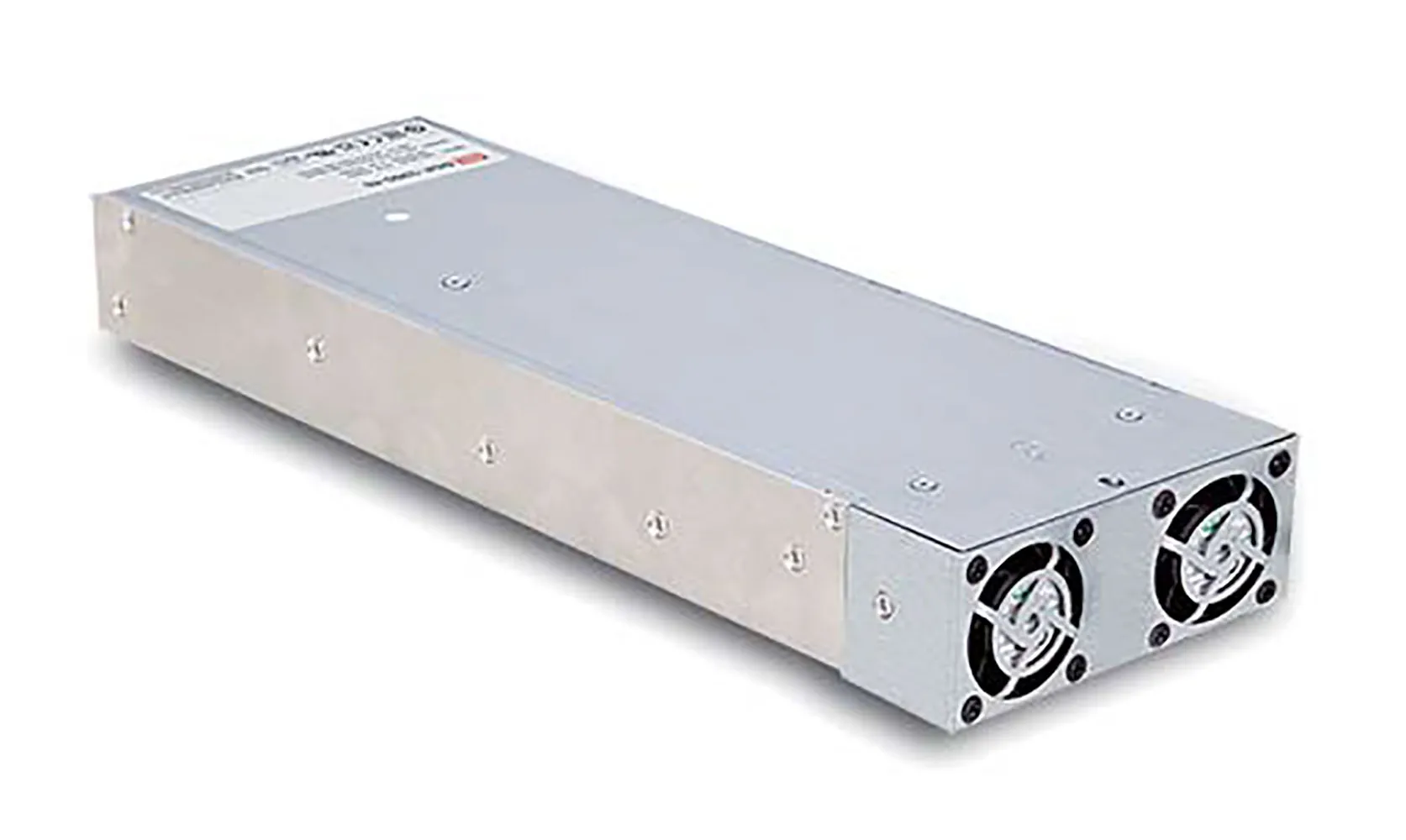

48VDC 33.5A 1608W Single Output Enclosed Switching Power Supply with PFC Function

Features

  • Universal AC input, Full range
  • Built-in active PFC function, PF>0.97 (230 VAC)
  • Forced air cooling by built-in DC fan
  • Output voltage level programmable
  • Built-in remote ON-OFF control, remote sense, auxiliary power, and DC OK signal
  • Protections: Short circuit, overload, over voltage, over temperature
  • 1U low profile (41mm)
  • Design refers to SEMI F47
  • 5-year warranty

Specifications

  • Output voltage: 48 VDC
  • Output current: 33.5 A
  • Output power: 1608 W
  • Input voltage: 90 to 264 VAC @ 47 to 63 Hz; 14A (115VAC)
  • Efficiency: 90.5%
  • PFC function: Yes
  • Size: 11.81"L x 3.35"W x 1.61"H (300 mm x 85 mm x 41 mm)
  • Case color: Silver
  • Agency approvals: UL, CUL, TUV, CB, CE, EN, EAC, UK, C-Tick

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Aging facility
  • Digital broadcasting
  • Constant current source

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:NSP-1600

Compliance

Agency Approvals: CB, CE, C-TICK, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.61 in.
Length:11.81 in.
Width:3.35 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:14 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Lug Terminal Female
Output Voltage:48 VDC
Output Current (Channel 1):33.5 A
Output Current:33.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:92%
Power Rating:1608 W
,
