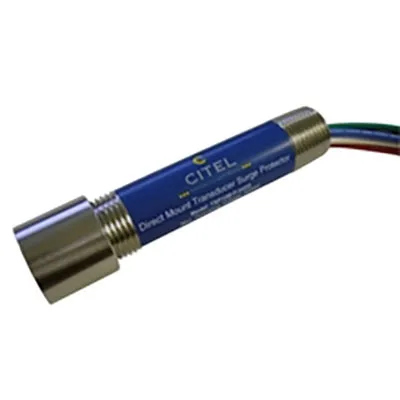

48V Submersible Dataline Surge Protection Device 10kA IMAX

This surface mount indoor/outdoor dataline surge protection device (SPD) designed for 48 Volt dataline circuits and has parallel or series connection options. It does 1 pair protection in L-L and L-G and can be conduit mounted or direct transducer mount. It features 15kA surge current rating and 10kA IN and has a 10-year warranty.

Specifications

  • Volts: 48 V
  • Wires: 4W + Ground
  • Line Current Max: 0.3 A
  • Ambient Temperature: -55℃C to +85℃C
  • Modes: L-L, L-G
  • IN: 10 kA
  • IMAX: 15 kA

Compliance

Agency Approvals:UL Compliant Design

Dimensions & Appearance

Depth:27.94 mm
Width:114.30 mm
Height:26 mm
Mounting Type:SMT-Conduit

Input

Input Voltage:N/A

Features

Failsafe Protection:No
Application:ISDN-T0
Short Circuit Protection:N/A
Surge Current Rating:15 kA
Technology:N/A
Protection Style:L-L, L-G
IP Rating:N/A
Current Rating:0.30 A
Maximum Clamping Voltage:N/A
Voltage Rating:54 VAC
,
