48V Submersible Dataline Surge Protection Device 10kA IMAX

Citel

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$100.000

In Stock: 0

Quantity	Unit Price	You Save	Discount
4+	$100.000	-	-
12+	$89.950	10.05	10.05%

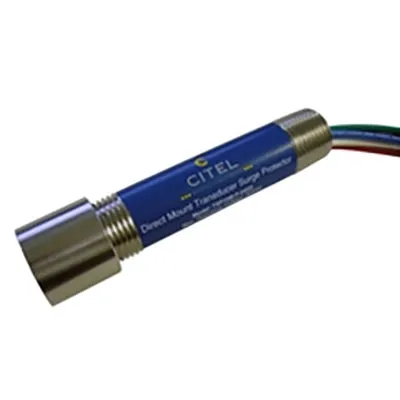

This surface mount indoor/outdoor dataline surge protection device (SPD) designed for 24 Volt dataline circuits and has parallel or series connection options. It does 1 pair protection in L-L and L-G and can be conduit mounted or direct transducer mount. It features 15kA surge current rating and 10kA IN and has a 10 year warranty.

Specifications

Volts: 48 V
Wires: 4W + Ground
Line Current Max: 0.3 A
Ambient Temperature: -55°C to +85°C
Modes: L-L, L-G
IN: 10 kA
IMAX: 15 kA

Dimensions & Appearance

Width:114.30 mm

Height:26 mm

Mounting Type:Flange Mount, Pole Mount

Input

Input Voltage:48 VAC

Features

Failsafe Protection:No

Application:Leased Line 4-20mA

Short Circuit Protection:N/A

Surge Current Rating:15 kA

Technology:N/A

Protection Style:L-L, L-G

IP Rating:IP67

Current Rating:0.30 A

Maximum Clamping Voltage:N/A

Voltage Rating:54 VAC
