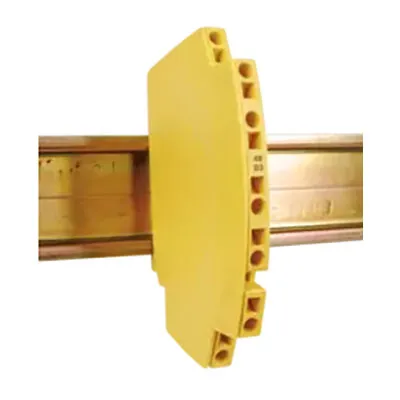

48V Dataline Surge Protection Device Hybrid SAD-GDT 8V MCOV 10kA IMAX

This compact modular DIN rail mounted dataline surge protection device (SPD) designed for 48 volt dataline circuits. It offers common mode or differential mode protection and features Hybrid SAD-GDT technology with 10kA IMAX surge current rating and 2.5 kA impulse current per module.

Specifications

• 10 kA Imax (1x 8/20us)
• 2.5 kA Imp (2x 10/350us)
• 5 kA In (10x 8/20us)
• Max. load current (IL): 300 mA
• Impulse current (Iimp): 2.5 kA
• Nominal discharge current (In): 5 kA
• Data SPD Type: UL497B Listed
• Volts: 48 V
• Wires: 2W+SHIELD+GROUND
• Line Current Max: 0.3 A
• Ambient Temperature: -40°C to +85°C
• Residual Voltage: 20 V
• MCOV (V): 8 / 72 / 72
• IN (kA): 5 (kA)
• IMAX (kA): 10
• Iimp (kA): 2.5
• Data Speed: (bps): 10/100
• Frequency: (MHz): >3
• Insertion Loss (@ Freq.): (db): < 1
• Capacitance: (pF): < 50
• Technology: Hybrid SAD-GDT
• Network Configuration: 1 Channel (2W+SHIELD+G)
• Connection Method: Screw Terminal (16 to 22 AWG)
• Mounting: DIN Rail
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• UL Standard: UL497B
• UL Category: QVGQ
• IL File Number: E184939
• Standards: IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
