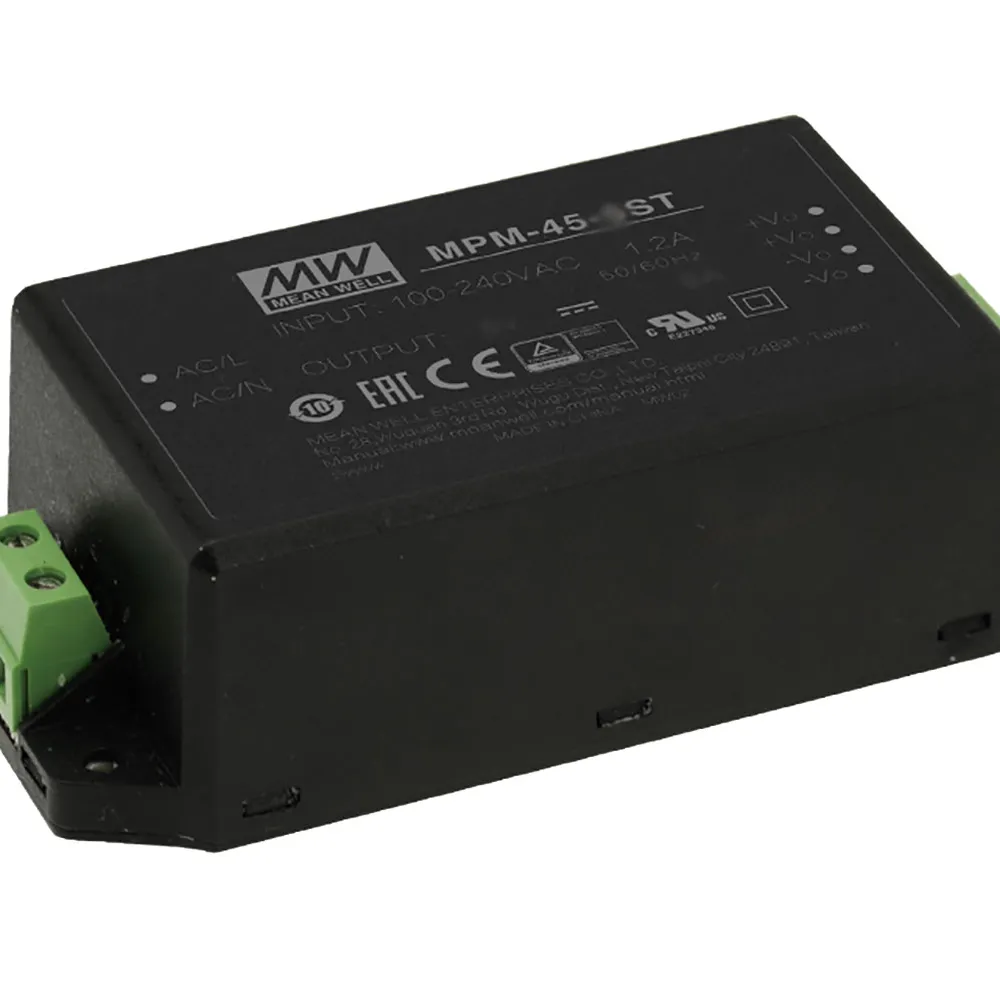

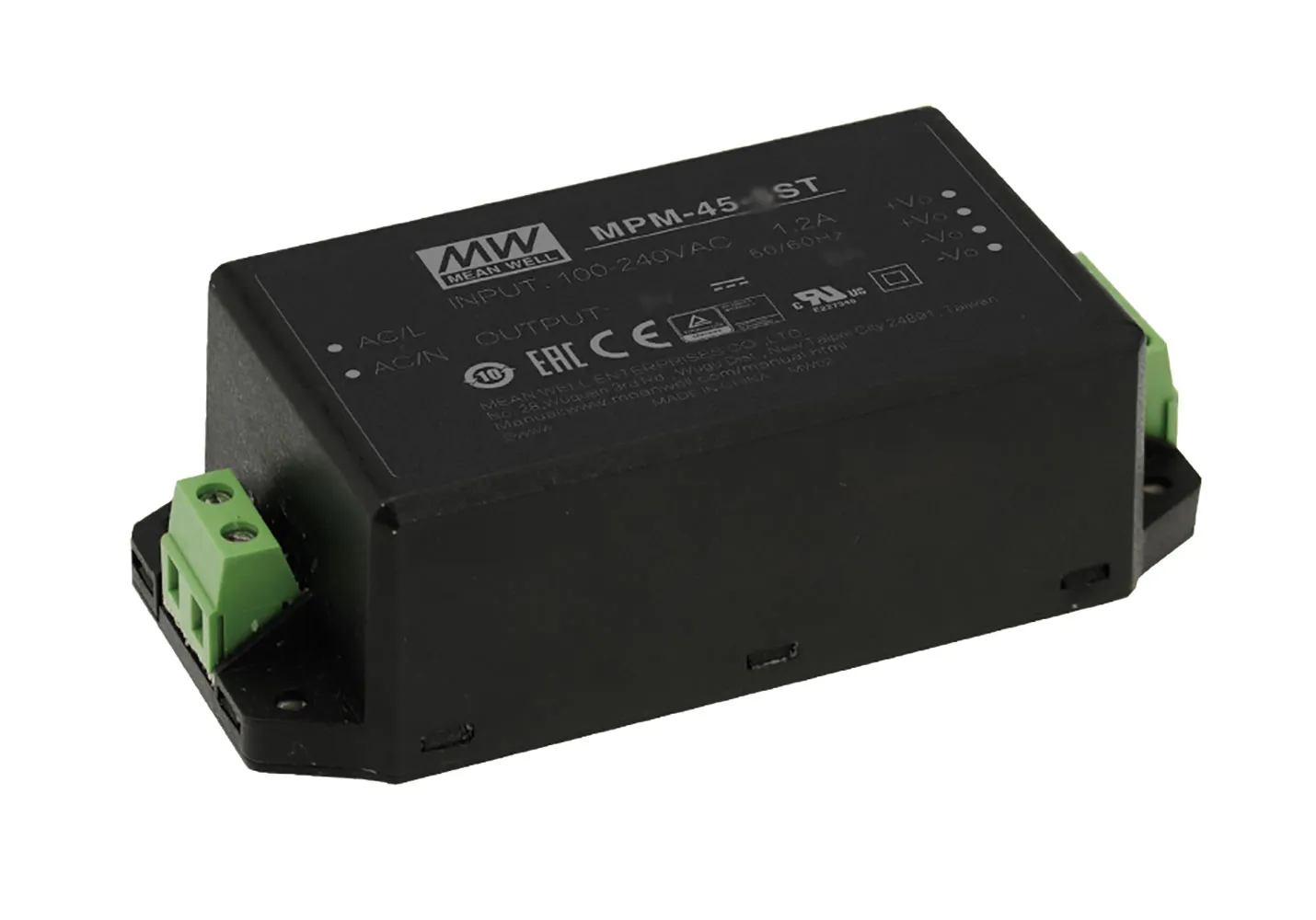

48V 940mA 45W High Reliability 2xMOPP Encapsulated Green Medical Power Supply Screw Terminals

Features

  • 3.43" x 2.05" compact size
  • Screw Terminals
  • Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system considerations
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temperature range: -30 to +80°C
  • EMI Class B without additional components
  • Isolation Class II
  • Protections: Short circuit, overload, over voltage
  • No minimum load required
  • Operating altitude up to 4000 meters
  • 50W peak (10 sec.)
  • 3 year warranty

Specifications

  • Output Voltage 48 VDC
  • Output Current: 0.94 A (Convection); 1.05 A (Peak, 10 sec.)
  • Rated power: 45.1 W (Convection); 50.4 W (Peak, 10 sec.)
  • Input: 80-264 VAC @ 47-63 Hz; 1.2 A (115VAC)
  • Efficiency: 92%
  • Agency approvals: UL, CUL, TUV, CB, CE. EN, EAC

Applications

  • Portable medical devices
  • Mobile clinical workstations
  • Medical computer monitor
  • Medical examination instruments

Overview

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:MPM-45

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:1.32 in.
Width:2.05 in.
Length:4.29 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current:0.94 A

Features

PFC Function:No
Minimum Isolation Voltage:4000V
Efficiency:92%
Power Rating:45.1 W
,
