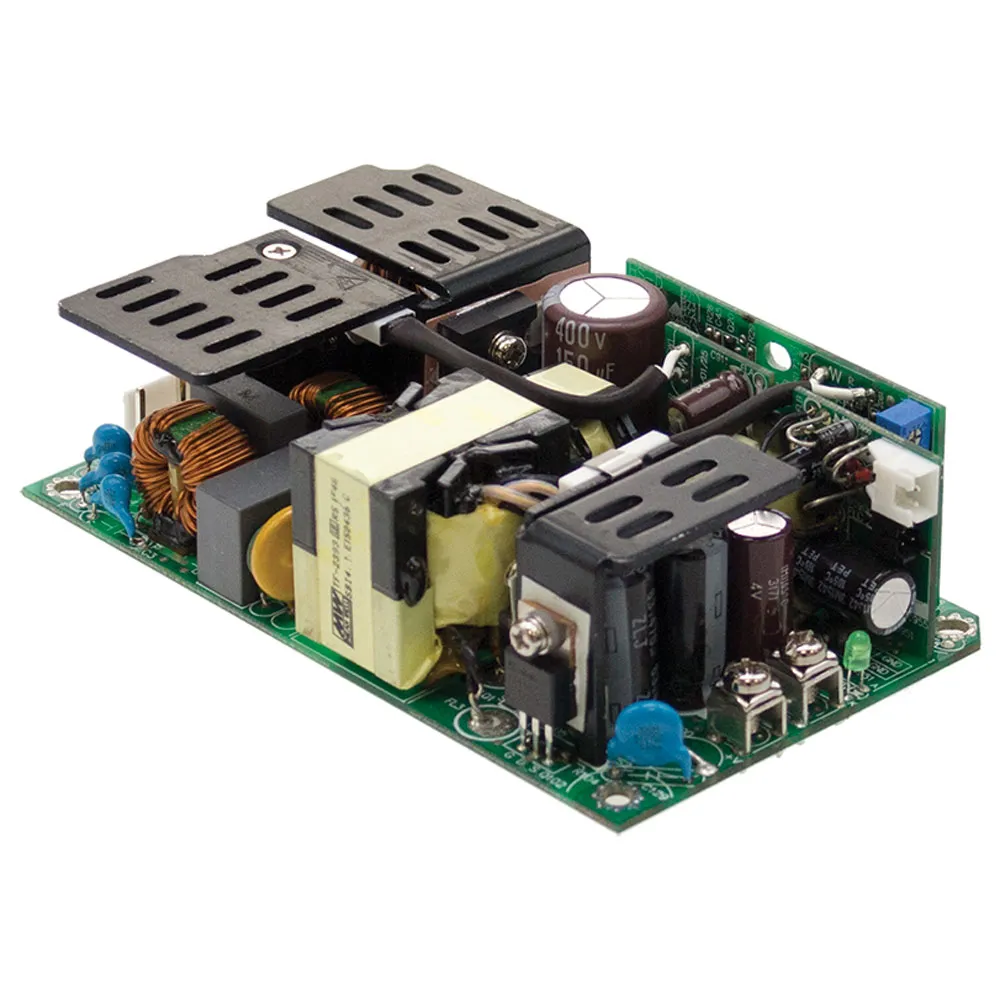

48V 4.12A 200W Green Enclosed Medical Power Supply

48 Volts @ 4.12 Amps (convection) / 6.25 Amps (20.5 CFM)

Features

  • 5" x 3" miniature size
  • Universal AC input input / full range: 90 to 264 VAC @ 47-63 Hz
  • Output voltage: 48 VDC
  • Rated power: 200 watts (convection); 300 watts (20.5 CFM fan)
  • Ripple & noise: 250 mVp-p
  • Load regulation: ±1%
  • Line regulation: ±0.5%
  • High efficiency up to 93%
  • Built-in active PFC function
  • Medical safety approved (2x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current <200µA
  • No load power consumption <0.5W by PS-ON control
  • Protections: Short circuit, over load, over voltage, over temperature
  • Cooling by free air convection for 200W, and 300W when 20.5 CFM forced air fan is used
  • Built-in 12V/0.5A fan standby
  • Standby 5V @ 1A with fan, 0.6 without fan
  • LED indicator for power on
  • 3 year warranty

Applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical monitors
  • Sleep apnea devices
  • Pumps machine

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:RPS-300

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:1.69 in.
Width:3.41 in.
Length:5.12 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.5 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current:4.17 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:93%
Power Rating:300 W
,
