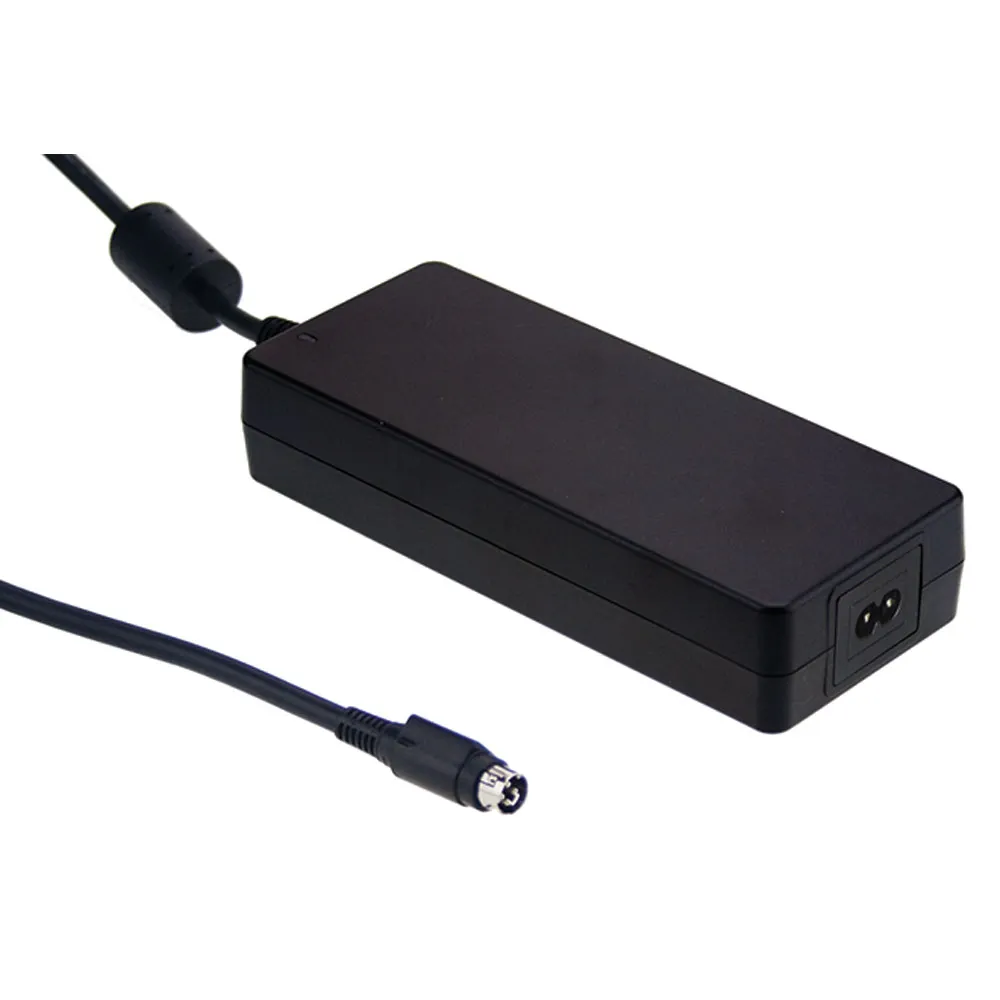

48V 3.34A 160W Single Output AC-DC Medical Power Supply

48 Volts @ 3.34 Amps

GSM160B is a highly reliable, 160W desktop style single-output green medical adapter series. The entire series supplies different output voltages that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients.

Features

• Universal AC input/full range
• 2 pole AC inlet IEC320-C8
• Output connector: 4-pin DIN
• Medical safety approved (2 x MOPP between primary to secondary)
• Suitable for BF application with appropriate system consideration
• Low leakage current < 100uA
• No load power consumption < 0.15W
• Energy efficiency level VI
• 100% full load burn-in test
• Built-in active PFC function
• Class II power (without earth pin)
• Protections: short circuit, overload, over voltage, over temperature
• Fully enclosed plastic case
• LED indicator for power on
• 3 year warranty

Applications

• Mobile clinical workstation
• Oral irrigator
• Portable hemodialysis machine
• Breath machine
• Medical computer monitor
