48V 2A 96W Single Output Industrial AC-DC Switching Power Supply

48 Volts @ 2 Amps

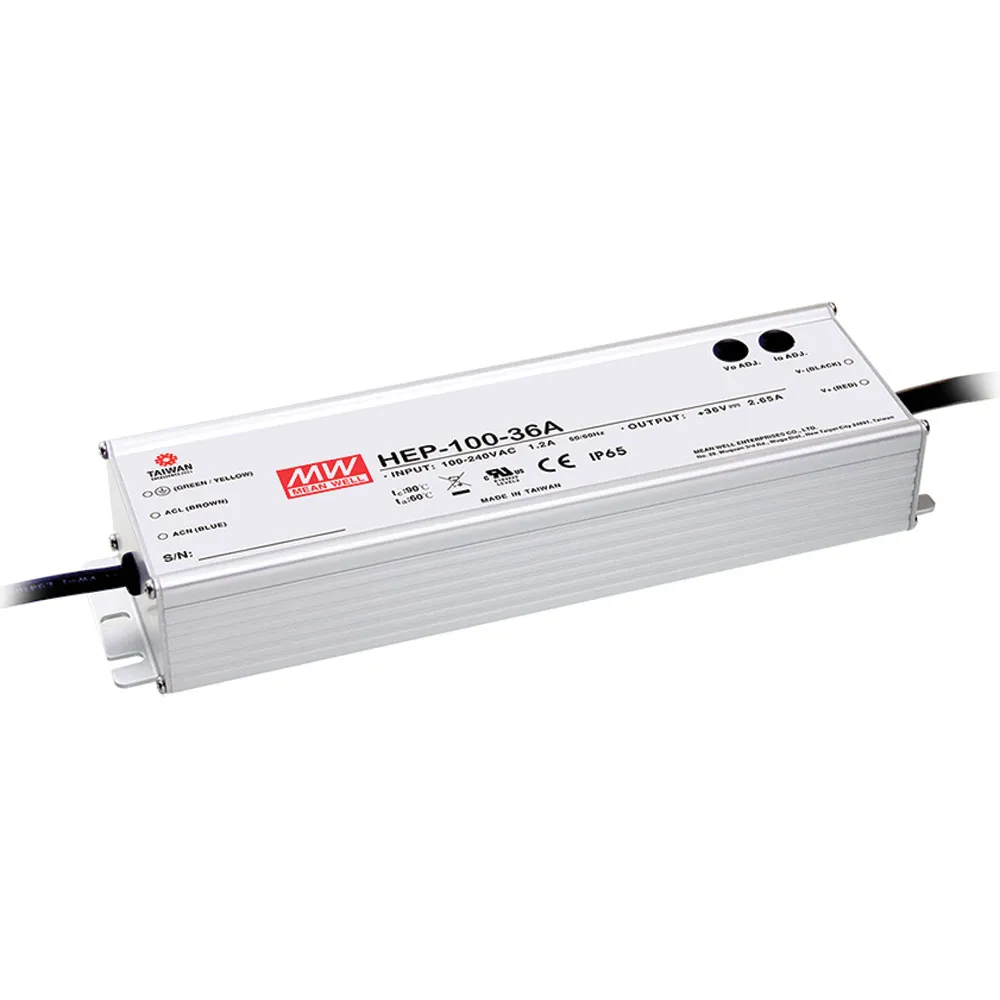

HEP-100 is a 100W industrial AC-DC power supply featuring outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environments. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone.

Features:

  • Universal AC input/full range
  • Built-in active PFC function
  • High efficiency up to 93%
  • Fanless design, cooling by free air convection
  • -55 to +70°C wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design
  • Meet 6kV surge immunity level
  • Withstand 10G vibration test
  • Protections: Short circuit, overload, over voltage, over temperature
  • Operating altitude up to 16,400 feet (5000 meters)
  • 6 year warranty

    Applications:

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboards
  • Petroleum plant or mine shaft facility

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:HEP-100

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.53 in.
    Width:2.68 in.
    Length:8.66 in.

    Operating conditions

    Minimum Operating Temperature:-55°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 305 VAC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):48 VDC
    Output Current (Channel 1):2 A
    Output Connector Type:Stripped and Tinned
    Output Voltage:48 VDC
    Output Current:2 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    Efficiency:93%
    Power Rating:96 W
    ,
