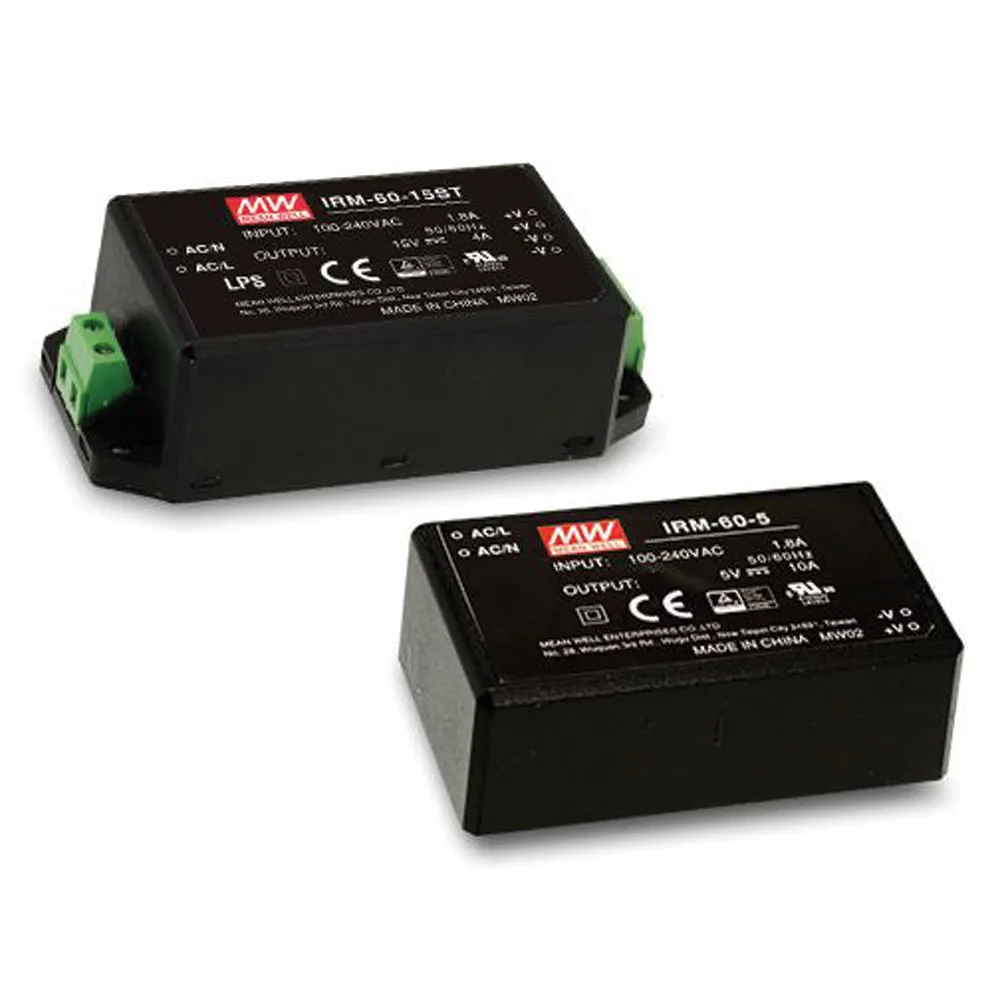

48V 1.25A 60W Single Output AC-DC Encapsulated Power Supply (Screw terminal style)

48 Volts @ 1.25 Amps

IRM-60 is a 60W miniature AC-DC module-type power supply ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. This product allows the universal input voltage range of 85-264VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G, while also providing the fundamental resistance to dust and moisture.

Features:

  • Universal AC input/full range
  • Compact size
  • Cooling by free air convection
  • Isolation Class II
  • No load power consumption < 0.1W
  • Pass LPS (except 5V)
  • 100% full load burn-in test
  • High reliability
  • 3 year warranty

Applications:

  • Industrial electrical equipment
  • Mechanical equipment
  • Factory automation equipment
  • Handheld electronic device

    • Product Identification

    Product Type:Power Module SMPS
    Manufacturer Series:IRM-60

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Encapsulated
    Color:Black
    Height:1.32 in.
    Width:2.05 in.
    Length:4.29 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 440 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:1
    Output Connector Type:Screw Terminal Block
    Output Voltage:48 VDC
    Output Current:1.25 A

    Features

    Minimum Isolation Voltage:3000V
    Efficiency:91%
    Power Rating:60 W
    ,
