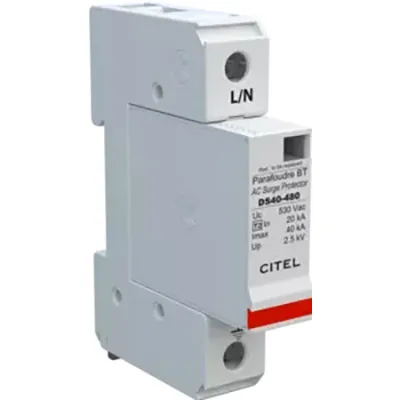

480VAC 1-Phase 2W+G DIN Rail Surge Protection Device MOV 550V MCOV 40kA IMAX

This surge protection device (SPD) designed for 480 VAC 1-phase AC Power circuits and uses MOV technology. It features 40kA surge current rating per module and is UL1449 Type 1 listed. It has a visual fault indicator, remote contacts, and comes with a 10-year warranty.

Specifications

  • Protection Mode(s): Common Mode or Differential Mode
  • Power SPD Type: UL1449 Type 1
  • Volts: 480 V
  • AC voltage systems
  • Phase: 1
  • Amps: n/a
  • Ambient Temperature: -35°C to +60°C
  • Modes: L-N, L-G, N-G
  • VPR (V): - / - / 1800 / -
  • MCOV (V): 550
  • IN: 20 kA
  • SCCR: (kA): N/A
  • IMAX: 40 kA
  • Technology: MOV
  • Network Configuration: 2 pole, 2W+G, Single/Spilt Phase
  • Connection Method: Screw Terminal (8 to 12 AWG)
  • Mounting: DIN RAIL
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Fail-Safe Behavior: Disconnection via fuse-link
  • Real-Time Diagnostics: Visual indicator and remote contacts
  • Certification: CSA, EAC, UL, TUV SUD
  • UL Standard: UL 1449 5th Edition
  • UL Category: VZCA2, VZCA8
  • UL File Number: E326289
  • Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993

Compliance

Agency Approvals:UL1449 4CA

Dimensions & Appearance

Depth:67 mm
Width:18 mm
Height:99 mm
Mounting Type:DIN Rail

Input

Input Voltage:480 V

Features

Failsafe Protection:N/A
Short Circuit Protection:100 kA
IP Rating:IP20
Technology:MOV
Surge Current Rating:40 kA
Protection Style:Common Mode, Differential Mode, L-G
Maximum Clamping Voltage:550
Application:480VAC Single Phase
Voltage Rating:480 VAC
Current Rating:N/A
,
