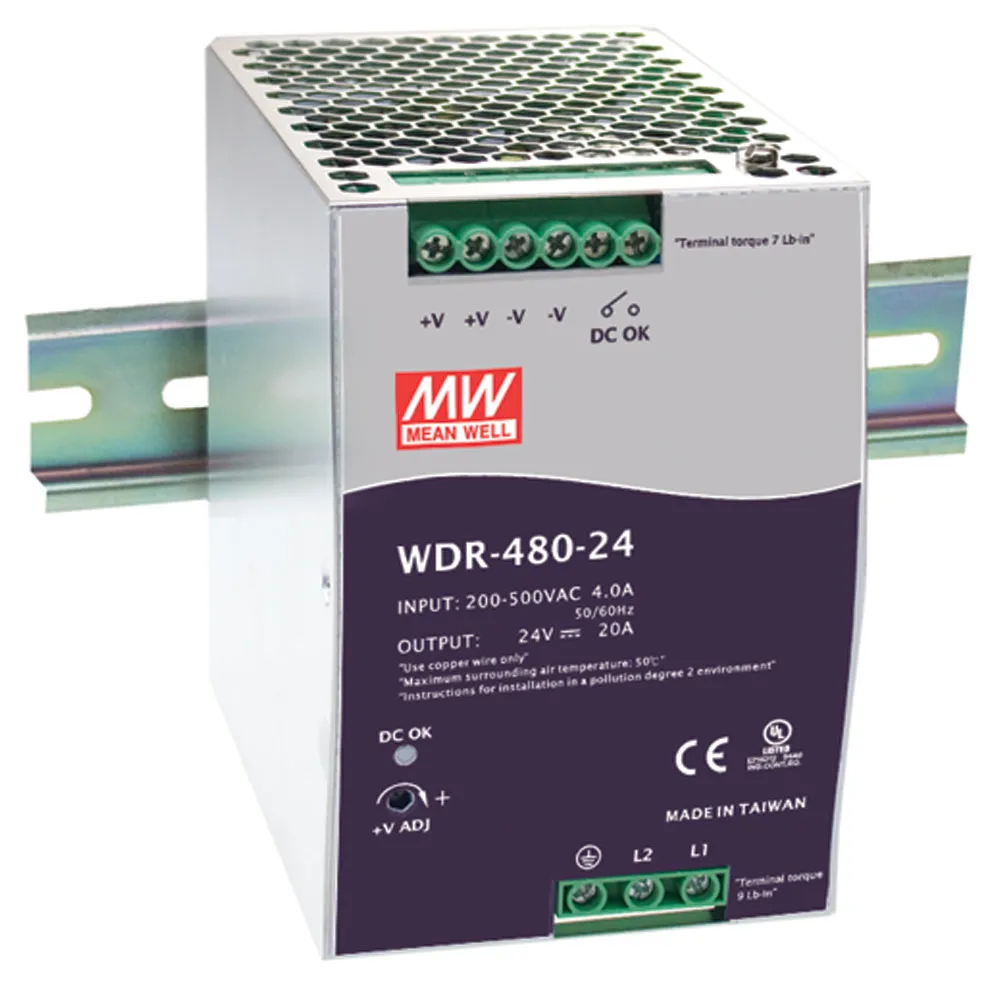

480W Single Output Industrial DIN Rail Power Supply
24 Volts @ 20 AmpsFeatures:
- Input Voltage: 180~550VAC @ 47~63Hz, 254-780VDC
- Short-circuit, Overload, Over-voltage, Over-temperature protection
- High efficiency 93% and low power dissipation
- 100% full load burn-in test
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2 (EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- Ripple and Noise: 100mVp-p
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%
- Size: 3.37"W x 4.93"H x 5.06"D
- Weight: 3.75 lbs.
- 3-year warranty
Product Identification
Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:WDR-480
Compliance
Agency Approvals: CB, CE, EAC, EN, UL
Dimensions & Appearance
Color:Silver
Depth:3.37 in.
Width:4.93 in.
Height:5.06 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 550 VAC
Maximum Input Current:4 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:20 A
Features
Low Power Source (LPS):No
PFC Function:Yes
Efficiency:92%
Power Rating:480 W
