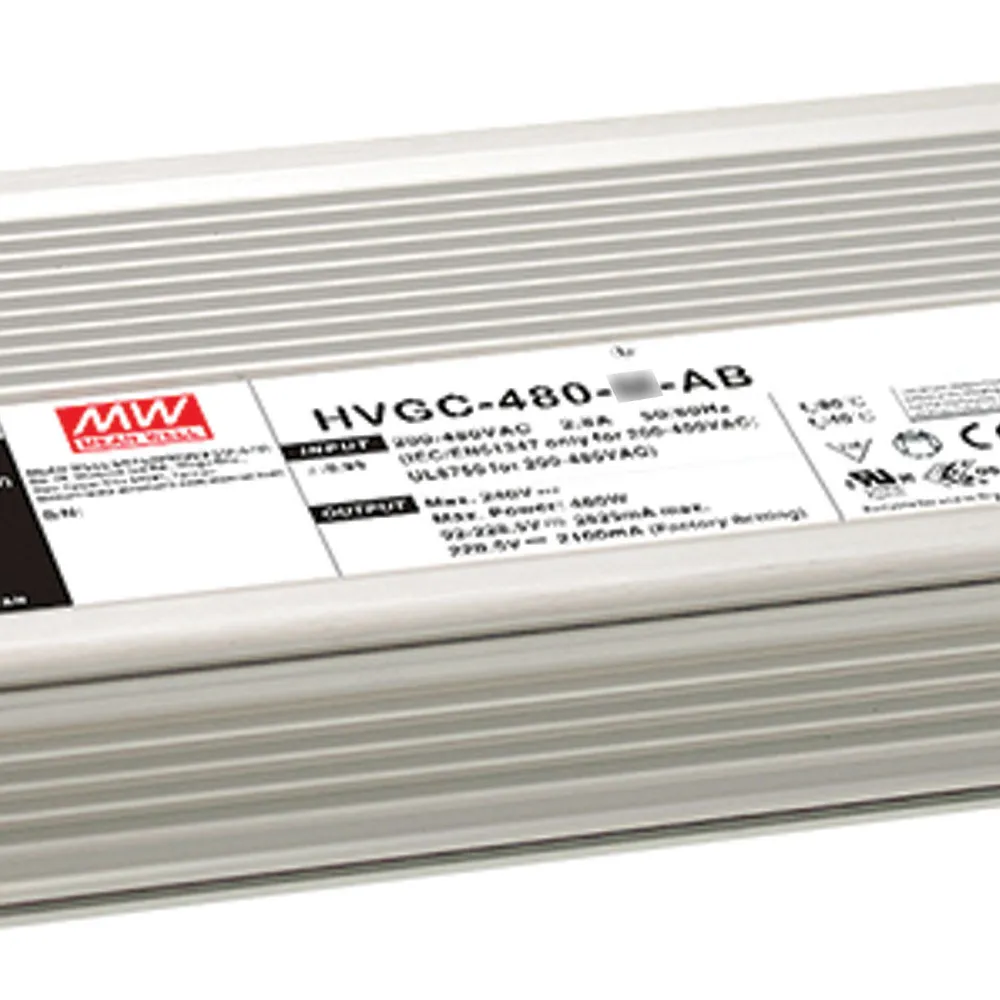

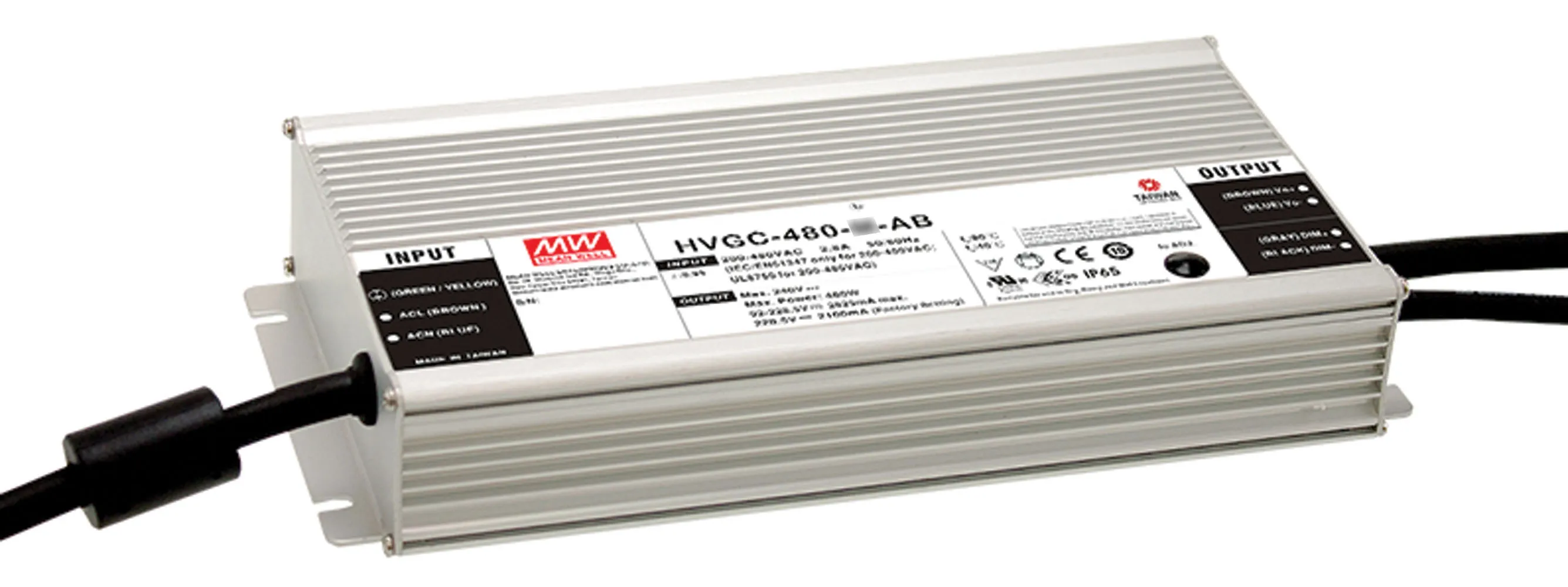

480 Watt 1.4 Amp 137-343V Constant Power Mode LED Driver

1400 mA @ 137-343VDC

Features

  • Open Circuit Voltage: 350V (max.)
  • Current adjustment range: 700-1750mA
  • Constant Power mode output
  • Output adjustable via potentiometer
  • Metal housing design
  • Built-in active PFC function
  • 3 in 1 dimming(dim-to-off) and Smart timer dimming
  • 5 year warranty

Applications

  • Harbor Lighting
  • LED high-bay lighting
  • LED architectural lighting
  • LED fishing lamp

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HVGC-480

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, ENEC, FCC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.315 in.
Width:4.92 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 528 VAC
Maximum Input Current:1.52 A

Output

Number of Outputs:1
Output Current (Channel 1):1.40 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):137 VDC to 343 VDC
Output Voltage:See Output Range
Output Current:1.40 A
Output Range:137 VDC to 343 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:94.5%
Power Rating:480 W
,
