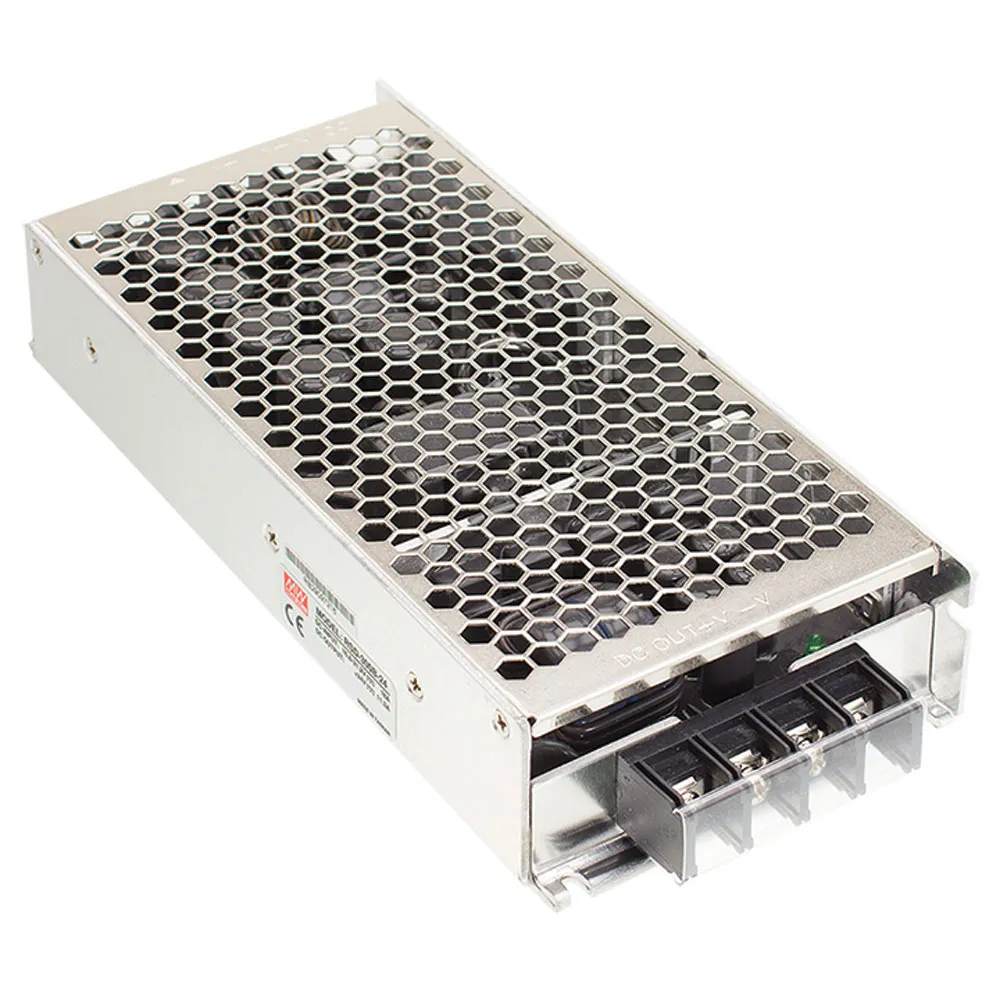

48 Volt 21 Amp 1008 Watt Front End Rack Mount Power Supply

Output: 48 Volts DC @ 21 Amps

Features

  • Universal AC input / Full range
  • Built-in 5V/300mA auxiliary power
  • Built-in active PFC function
  • High efficiency up to 89%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan with fan speed control
  • Low profile: 1U height
  • Active current sharing up to 3000W (3 units)in 19" rack, 3 racks max. Can be operated in parallel (up to 8 units) *see Note 7 on datasheet.
  • Remote control for single unit
  • Output voltage programmable
  • Internal OR-ing diode, support hot swap (hot plug)
  • 5 year warranty

Applications

  • Industrial automation
  • Distributed power architecture system
  • Wireless/telecommunication solution
  • Redundant power system
  • Electric vehicle charger system
  • Constant current source system

Certificated

  • Safety: UL/EN/IEC 60950-1
  • EMC: EN 55022 / 55024

Product Identification

Product Type:Regulated SMPS
Manufacturer Series:RCP-1000

Compliance

Agency Approvals: CB, CE, CUL, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.6 in.
Length:11.6 in.
Width:5 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:11 A

Output

Number of Outputs:1
Output Connector Type:Postronic PCIB24W9M400A1
Output Voltage:48 VDC
Output Current:21 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:1008 W
,
