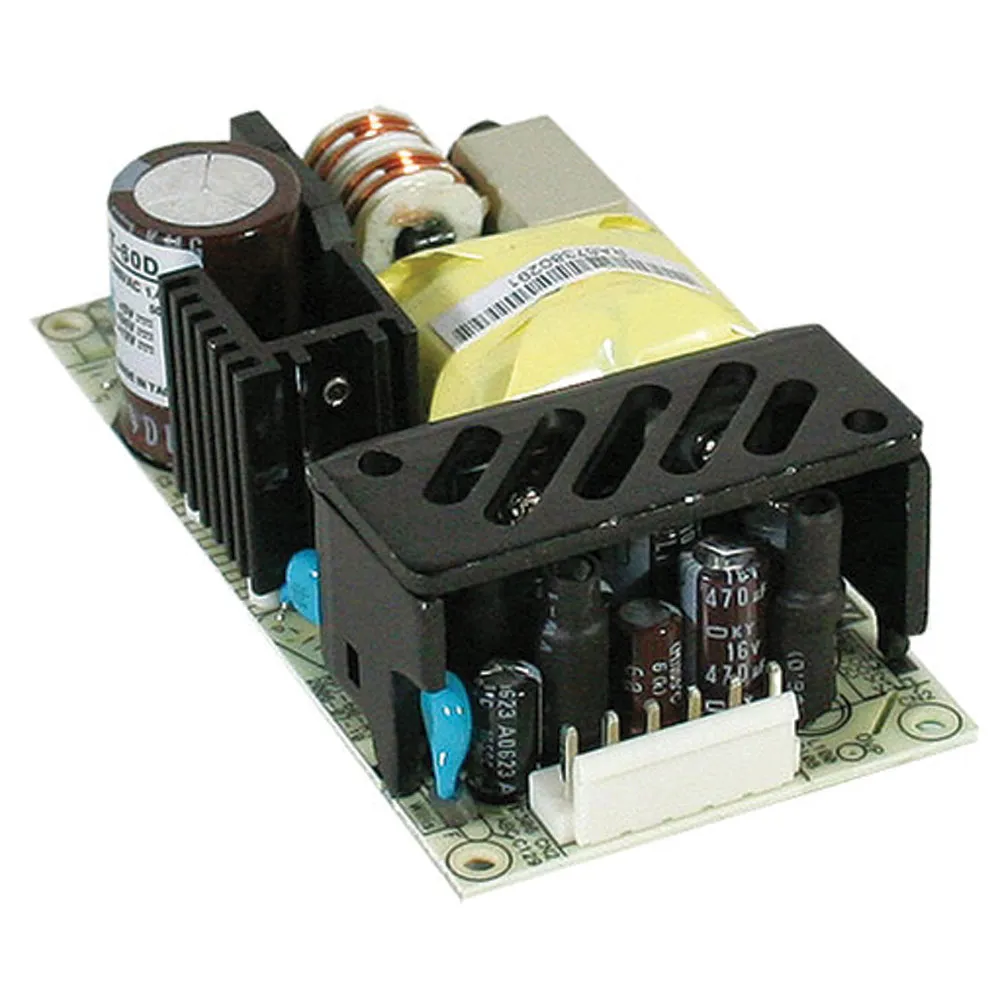

47W Triple Output Regulated Switching Medical Power Supply


Channel 1: 5 Volts @ 4 Amps
Channel 2: 12 Volts @ 2 Amps
Channel 3: -5 Volts @ 0.5 Amps

Features:

  • Input voltage range: 90-264VAC @ 47-63Hz, or 127-370VDC
  • Efficiency: 77%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • UL60601-1 / IEC60601-1 / EN60601-1 medical safety approved
  • UL60950-1/IEC60950-1/EN60950-1 ITE safety approved
  • Fixed switching frequency at 100kHz
  • Low leakage current <200µA
  • Size: 4.0"L x 2.0"W x 1.1"H
  • Weight: 0.33 lbs.

    • Product Identification

    Type:Auto Switching SMPS
    Product Type:AC to DC Power Supply SMPS
    Manufacturer Series:RPT-60

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Medical Open Frame
    Height:1.1 in.
    Width:2 in.
    Length:4 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:65°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.1 A

    Output

    Number of Outputs:3
    Additional Output Voltages (VDC): -5 VDC, 12 VDC
    Output Connector Type:JST B6P-VH or equiv.
    Output Connector Diameters:N/A
    Output Voltage:5 VDC
    Output Current:4 A

    Features

    Minimum Isolation Voltage:4000V
    Efficiency:77%
    Power Rating:51.15 W
    ,
