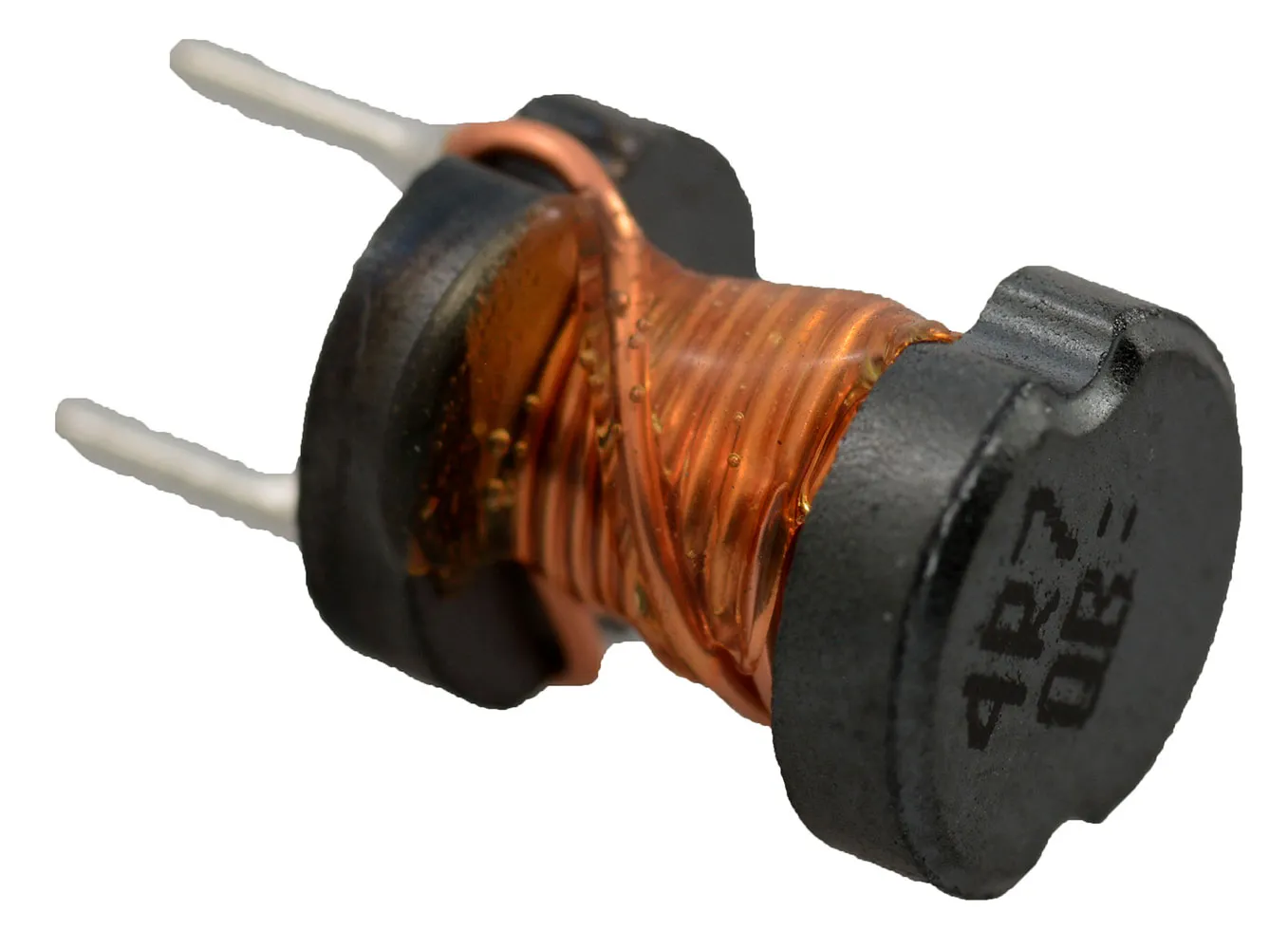

4.7µH Unshielded Inductor 4.3A 15mOhm Radial Vertical Cylinder

Specifications

  • Material - Core: Ferrite
  • Inductance: 4.7 µH
  • Current Rating: 4.3 A
  • Inductance Frequency - Test: 10 kHz
  • Tolerance: ±20%
  • Shielding: Unshielded
  • DC Resistance (DCR): 15 mOhm
  • Operating Temperature: -
  • Mounting Type: Through Hole
  • Package: Radial, Vertical Cylinder
  • Size: 0.315" Diameter (8 mm)
  • Height - Seated (Max): 0.512" (13 mm)

,
