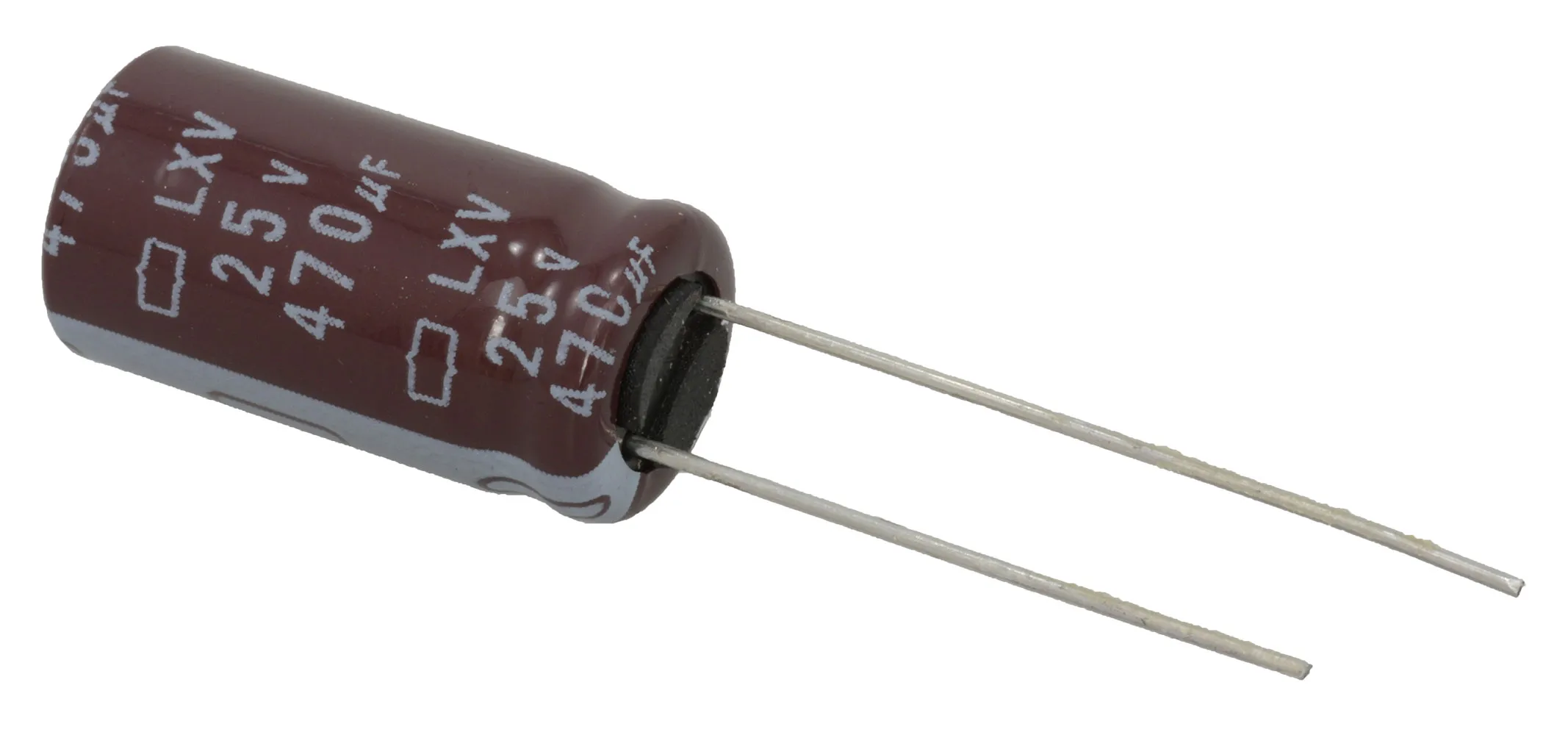

470uF 25V Aluminum Electrolytic Capacitor Radial THM

Specifications

  • Series: LXV
  • Capacitance: 470µF
  • Tolerance: ±20%
  • Voltage - Rated: 25V
  • ESR (Equivalent Series Resistance): -
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Polarization: Polar
  • Ratings: AEC-Q200
  • Applications: Automotive
  • Ripple Current @ Low Frequency: 689mA @ 120Hz
  • Ripple Current @ High Frequency: 1.06A @ 100kHz
  • Impedance: 62 mOhms
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.846" (21.50mm)
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can

Product Identification

Product Type:Electrolytic

Dimensions & Appearance

Dimensions:10 x 20 x 5
Height:20 mm
Body Diameter:10 mm

Operating conditions

Maximum Operating Temperature:105°C

Features

Construction:Radial
Leakage Current:0.03cv or 4uA
Capacitance (uF):470
Tolerance:20%
Pitch:5 mm
Voltage Rating:25 VDC
Capacitance:470 uF
,
