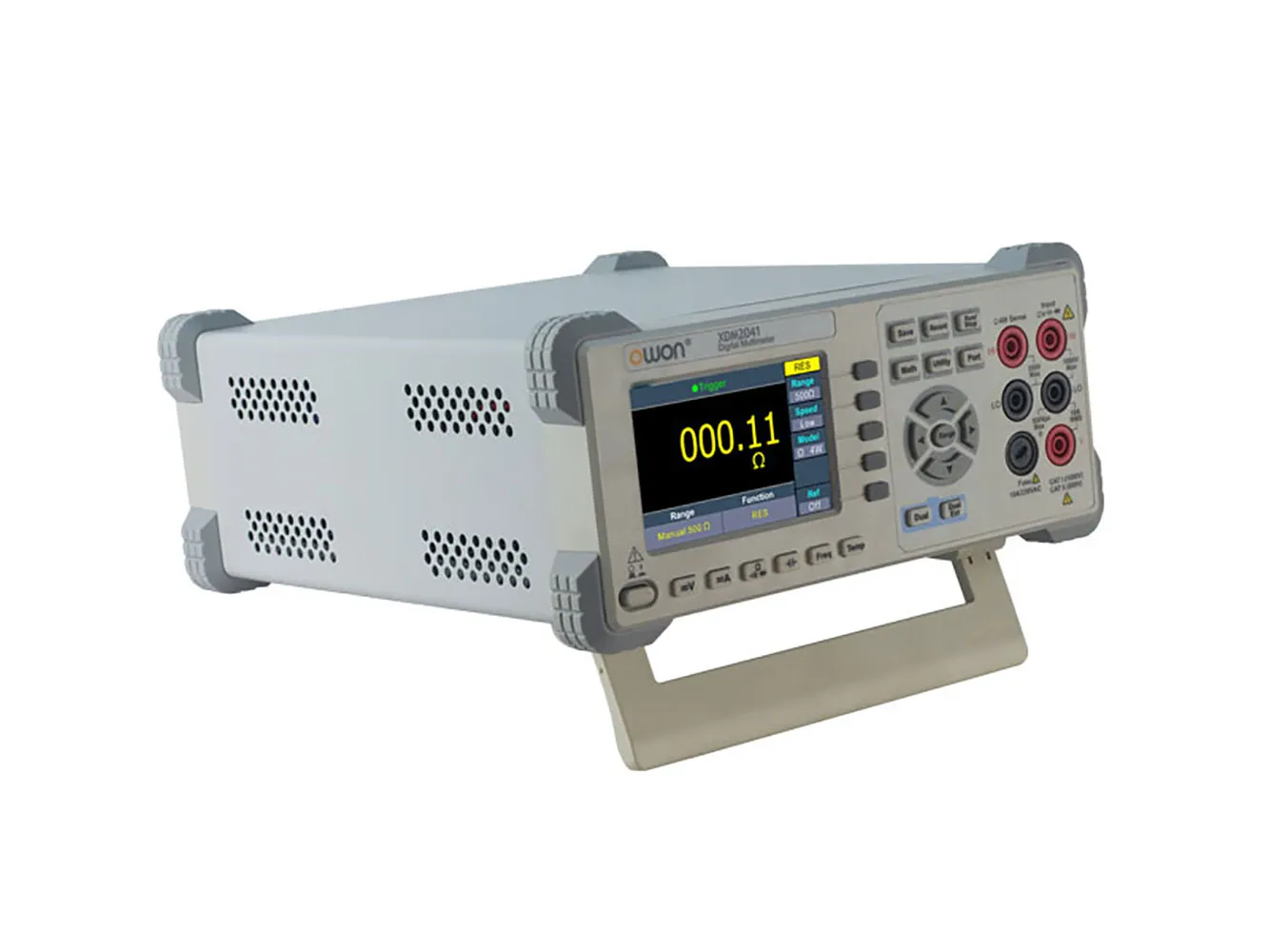

4.5-Digit Benchtop Digital Multimeter 55000 Count True RMS

Features

  • 55,000 count display, DC voltage accuracy up to 0.025%
  • Measures: DC voltage, AC voltage, DC current, AC current, 2-wire resistance, 4-wire resistance, capacitance, continuity test, diode test, temperature measurement, AC and frequency (AC + Hz) measurement, MAX/MIN/AVE, and relative measurement
  • Reading rates up to 65 readings per second
  • AC true RMS measurement; bandwidth: 20 Hz to 1 kHz
  • Data record function
  • SCPI supported (via RS232)
  • 3.7" high-res LCD, 480x320
  • Size: 235 W x 295 D x 110 H

Specifications

  • DC Voltage: 50 mV, 500 mV, 5 V, 50 V, 500 V, 1000 V
  • AC Voltage: 500 mV to 750 V
  • DC Current: 500 uA, 5000 uA, 50 mA, 500 mA, 5 A, 10 A
  • AC Current: 500 uA to 500 mA, 5 A to 10 A
  • Resistance: 500 Ohm, 5K, 50K, 500K, 5M, 50M
  • 4-wire Resistance: 500 Ohm, 5K, 50K
  • Capacitance: 50 nF to 500 uF, 5 mF to 50 mF
  • Frequency: 10 Hz to 60 MHz
  • Diode: 3V
  • Continuity: 1000 Ohm
  • Temperature: K-type, PT100
  • Display: 55000 count
  • Data logging length: 1000 points
  • Data logging duration: 15 ms to 9999 s

Resources and Downloads

Product Identification

Additional Feature:Datalogger
Product Type:Digital Multimeter

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Style:Benchtop

Features

Autorange:No
True RMS:Yes
Display Digits:4.5
PC Interface:No
Display Count:55000
Voltage Range (VDC):50m to 500, 1000
Measurement Temperature Range (Deg F):K-Type, PT100
DC Current Range (A):500u to 5, 10
AC Current Range (A):500u to 5, 10
Resistance Range (Ohms):500 to 50M
Capacitance Range:50 nF to 500 uF, 5 mF to 50 mF
Voltage Range (VAC):500m to 750
Frequency Range:10 Hz to 60 MHz
Function:Voltage, Current, Resistance, Capacitance, Temperature, Continuity, Frequency, Diode, Duty Ratio
,
