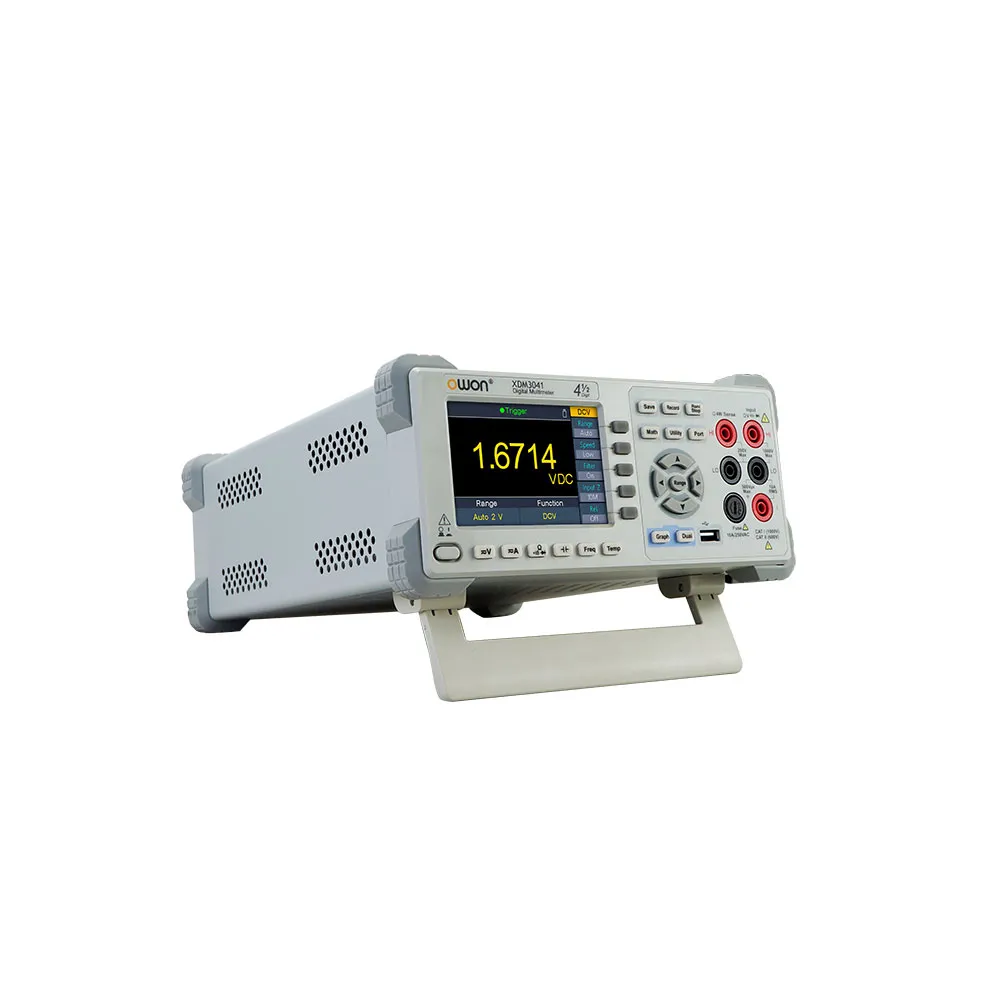

4.5-Digit Benchtop Digital Multimeter 1M Count True RMS 4" LCD with WiFi Module

Features

• 1,000,000 count display
• Measures: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, continuity test, diode test, temperature measurement, AC and frequency (AC + Hz) measurement, dB
• Reading rates up to 150 readings per second
• AC true RMS measurement; bandwidth: 20 Hz to 100 kHz / current measurement
• Dual line display supported
• Change trend analysis accessible via special chart mode
• SCPI supported - remote control and data sharing
  • possible via LAN, USB, RS232 port and WiFi (included)
• Multiple IO Interface: USB device & host, RS232, LAN and external trigger input
• 4" high-res LCD, 480x320
• Size: 235 W x 295 D x 110 H

Specifications

• DC Voltage: 600 mV, 6 V, 60 V, 600 V, 1000 V
• AC Voltage: 600 mV to 750 V
• DC Current: 600 uA, 6 mA, 60 mA, 600 mA, 6 A, 10 A
• True RMS AC Current: 60 mA, 600 mA, 6 A to 10 A
• Resistance: 600 Ohm, 6K, 60K, 600K, 6M, 60M, 100M
• Capacitance: 2 nF to 200 uF, 10000 uF
• Diode: 3V
• Continuity: 1000 Ohm
• Temperature: temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
• Ranging: Auto/manual
• Data logging length: 1M points
• Data logging duration: 5 ms

Resources and Downloads

• PC software for OWON XDM3000 Series digital multimeter (.zip)
• EasyControl Software Guide for XDM Series (.pdf)
• Programming Manual for XDM3041&3051 Series (.pdf)
• Labview demo for XDM3041&3051 Digital Multimeter (.rar)
• Programming Manual for XDM3041& 3051 Digital Multimeter (.pdf)
• app for OWON XDM Series digital multimeter (.zip)
