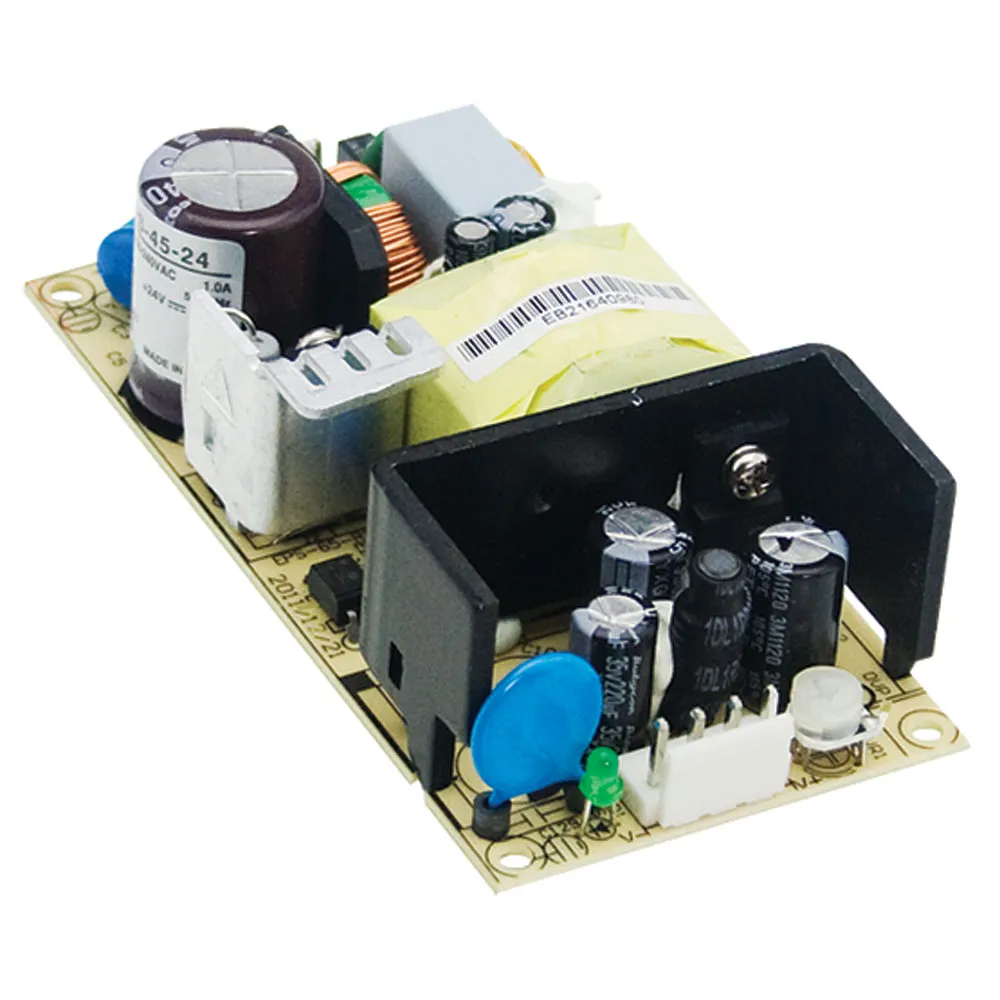

45 Watt Single Output Switching Power Supply

24 Volts @ 1.9 Amps

Features:

  • Universal AC input/ Full range
  • 89% efficiency
  • L-Bracket and cover
  • Protections: Short circuit/ Overload/ Over voltage
  • Cooling by free air convection
  • 4"x2" compact size
  • LED indicator for power on
  • No load power consumption < 0.3W
  • 3 years warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:EPS-45

Compliance

Agency Approvals: CCC, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.46 in.
Width:2.44 in.
Length:4.07 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.8 A

Output

Number of Outputs:1
Output Connector Type:JST B4P-VH or equiv.
Output Voltage (Channel 1):24 VDC
Output Current (Channel 1):1.9 A
Output Voltage:24 VDC
Output Current:1.90 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:45.6 W
,
