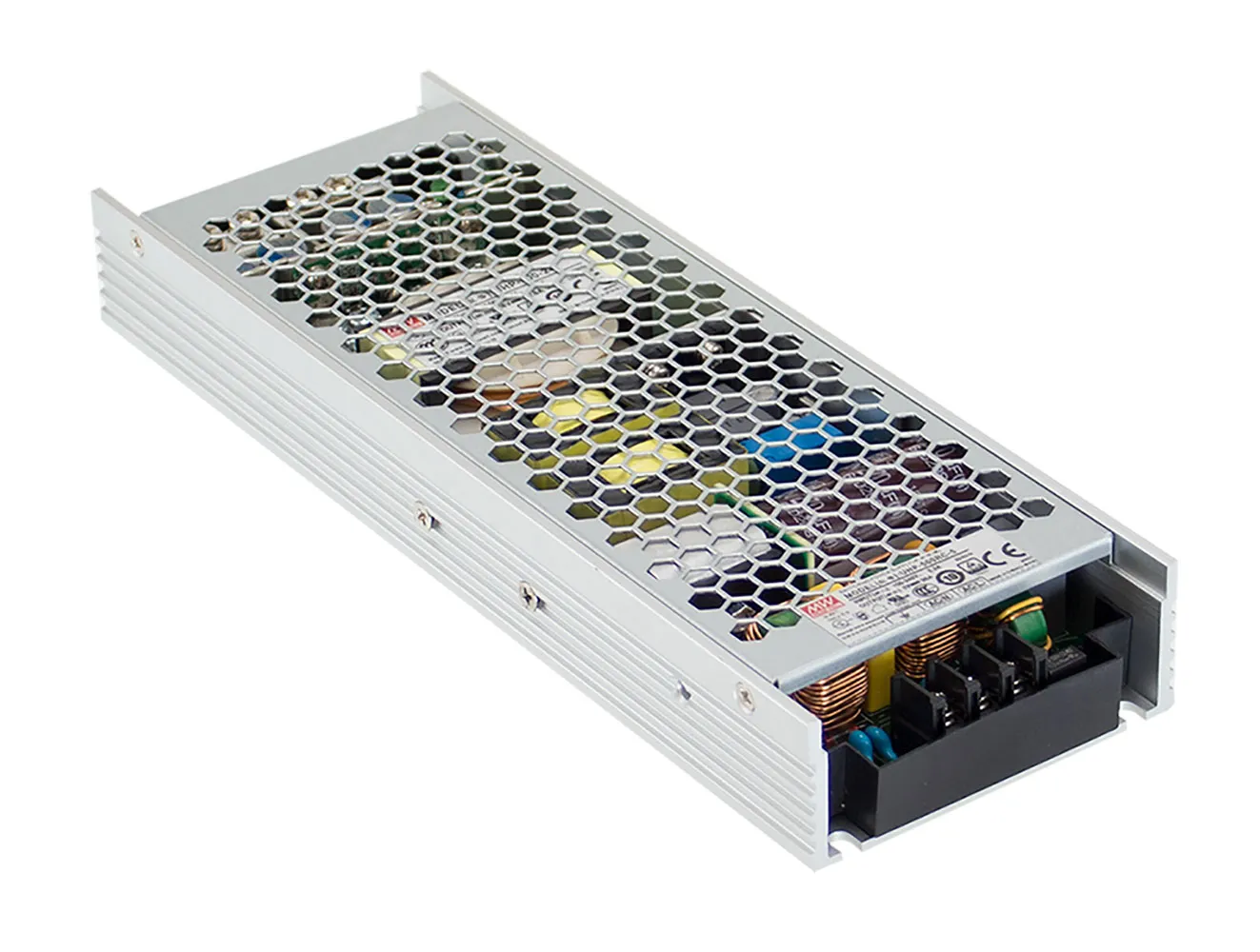

4.2V 80A 336W Slim PFC Switching Power Supply with DC OK Active Signal and Redundant Function

4.2 Volts DC @ 80 AmpsFind out more about MEAN WELL Mini/Micro LED display power solutions and the low-profile, miniaturized conduction cooling power supply family.

Features

  • Withstand 300VAC surge input for 5 seconds
  • Operating altitude up to 5000 meters
  • Built-in PFC function
  • Protections: Short Circuit/ Overload
  • Built-in DC OK active signal and redundant function
  • 3 year warranty

Specifications

  • Rated power: 336 watts
  • Input: 90-264 VAC @ 47-63 Hz
  • Efficiency: 89%
  • Agency approvals: UL, CUL, TUV, CCC, CB, CE

Applications

  • Industrial control system
  • Industrial automation machinery
  • LED display application
  • Electronics instruments, equipment or apparatus
  • Mechanical and electrical equipment

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-500

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.22 in.
Width:3.19 in.
Length:9.13 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:4.85 A

Output

Number of Outputs:1
Output Voltage (Channel 1):4.2 VDC
Output Voltage:4.2 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):80 A
Output Current:80 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:89%
Power Rating:336 W
,
