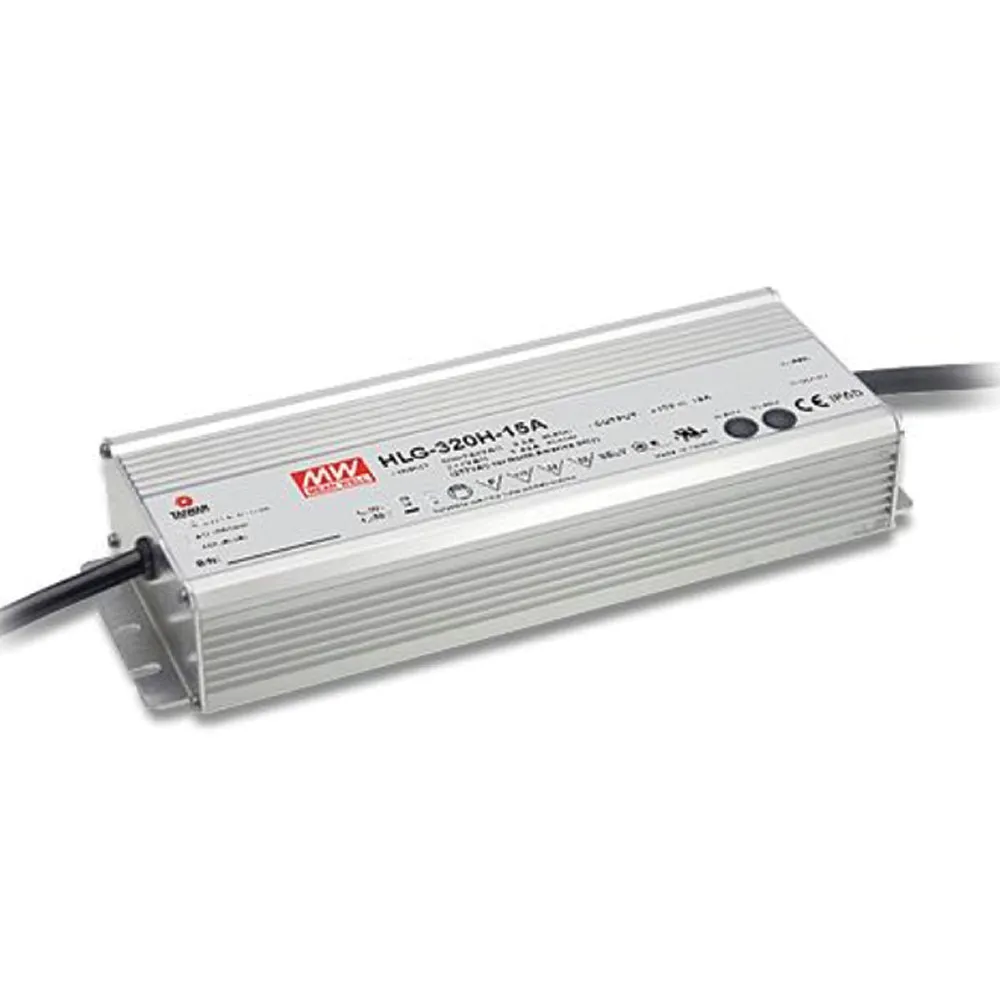

320W Single Output Switching LED Power Supply

42 Volts @ 7.65 Amps

Features

  • Standard model - Cable for I/O connection
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • IP67 design for indoor or outdoor installations
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • Type HL LED Driver for use in Class I, Division 2 hazardous(Classified) location luminaires
  • 7 years warranty

      • Overview

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HLG-320H

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Width:3.54 in.
Length:9.92 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:3.5 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:42 VDC
Output Range:38 VDC to 45 VDC
Output Current:7.65 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:95%
Power Rating:321.3 W
,
