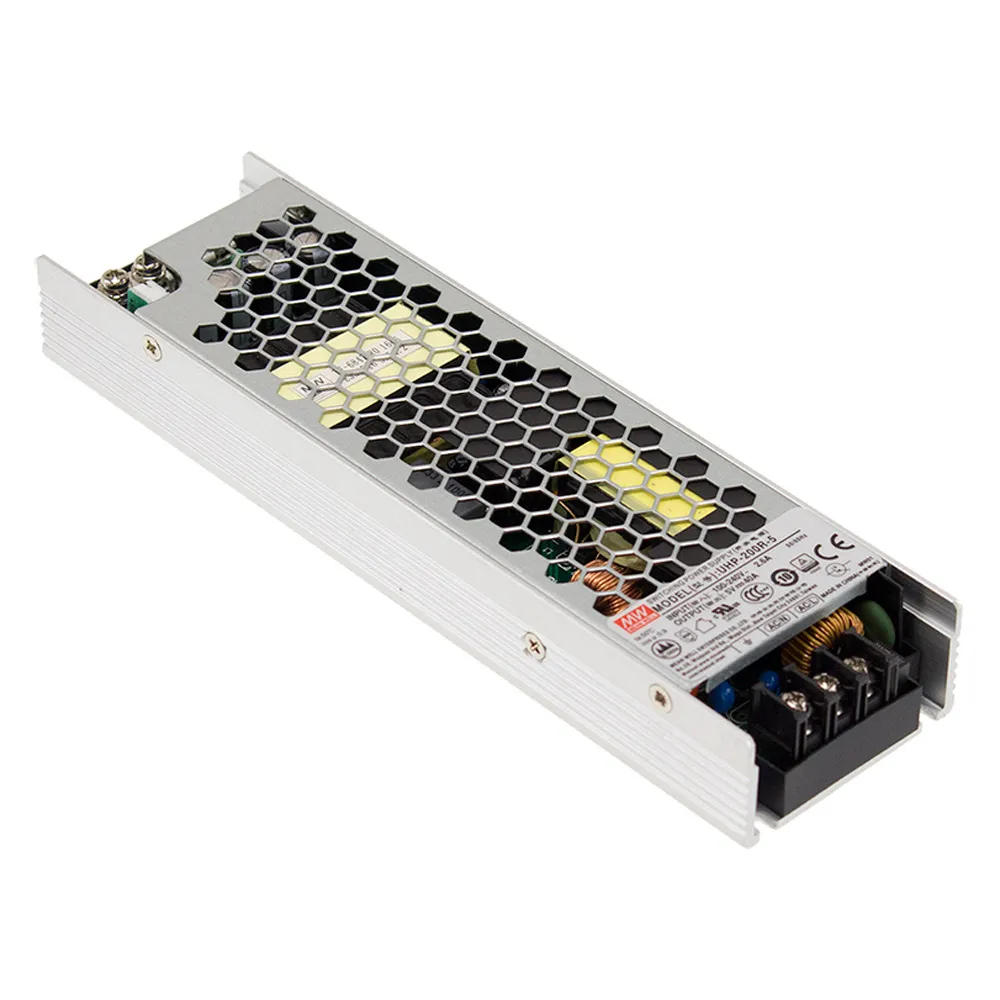

4.2V 40A 168W Slim Enclosed Switching Power Supply with PFC

4.2 Volts DC @ 40 AmpsFind out more about MEAN WELL Mini/Micro LED display power solutions and the low-profile, miniaturized conduction cooling power supply family.

Features

  • Slim and low profile (26mm)
  • Fanless design, 168W convection
  • Withstand 300VAC surge input for 5 seconds
  • Built-in active PFC function
  • 150% peak load capability (100ms)
  • -30 to +70°C working temperature
  • Protections: Short circuit, overload, over voltage, over temperature
  • Operating altitude up to 5000 meters (see Note 5 in datasheet)
  • LED indicator for power on
  • 3 year warranty

Specifications

  • Size: 7.64" x 2.17" x 1.02"
  • Ripple & Noise: 150 mVp-p
  • Line Regulation: ±0.5%
  • Load Regulation: ±1.0%
  • Efficiency: 90%
  • Agency approvals: UL, cUL, TUV, CB, CE, CCC

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
  • LED display applications

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.02 in.
Width:2.17 in.
Length:7.64 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):4.2 VDC
Output Voltage:4.2 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):40 A
Output Current:40 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:90%
Power Rating:168 W
,
