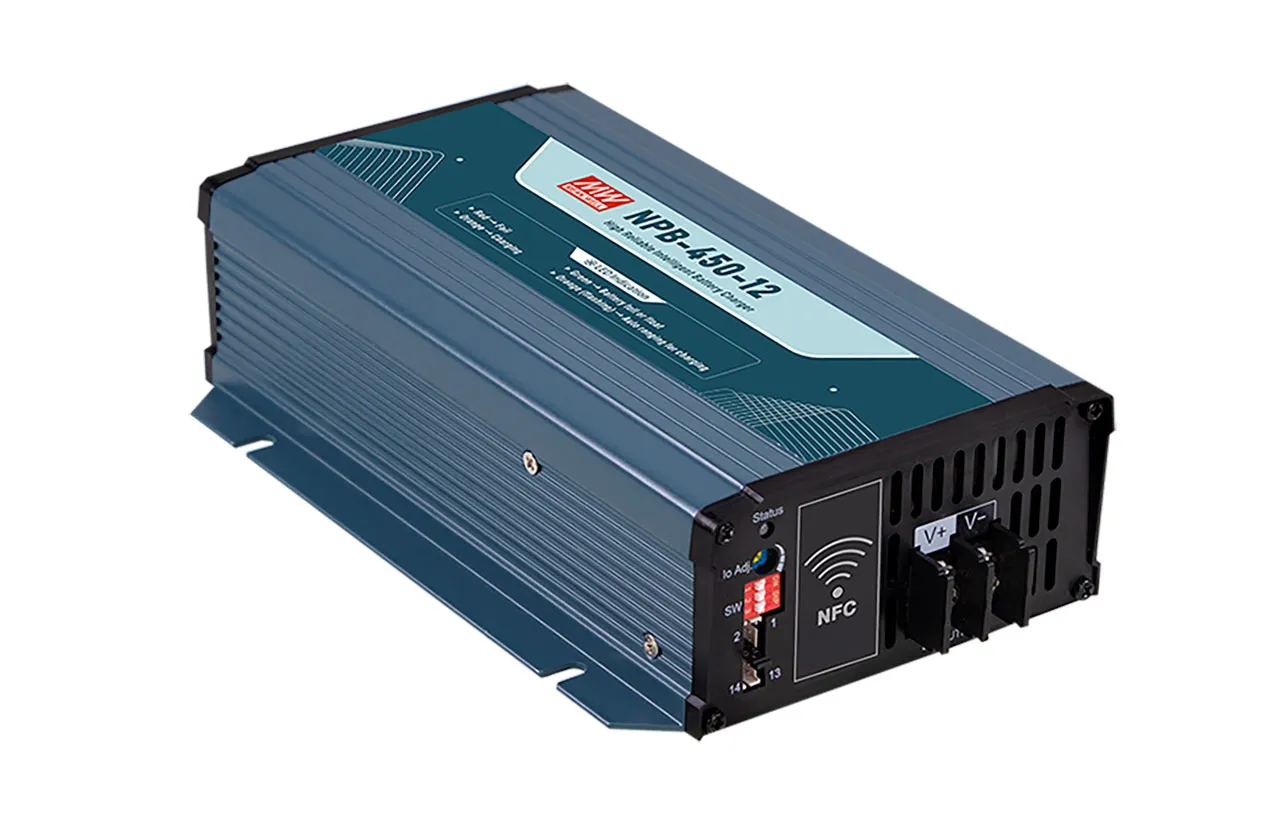

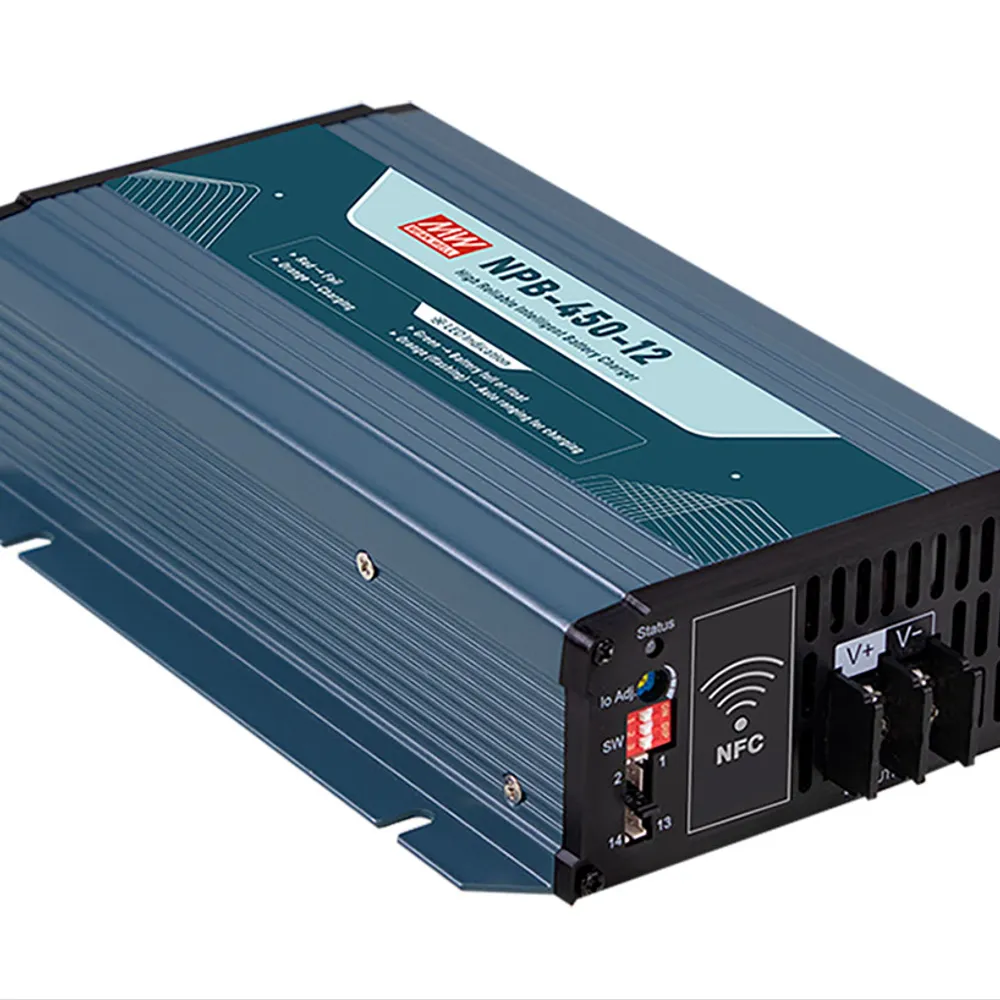

420W 13.8V 25A Ultra-Wide Output Range Intelligent Battery Charger with NFC

Find out more about MEAN WELL Industrial Grade, Reliable and Durable Charger and Inverters.

Features

  • Auto-ranging with ultra-wide charging voltage (see below and datasheet for details)
  • Built-in CANBus protocol for control, setting and monitoring
  • Set up charging parameters easily via NFC interface
  • Programmable charging curve via SBP-001 (sold separately)
  • Manual setting for 2/3 stage and four built-in charging curves via DIP switch
  • Protections: Short circuit, over voltage, over temperature, battery under voltage, battery reverse polarity (no damage)
  • Built-in PFC function
  • Charger compatible with lead-acid (flooded, Gel, AGM) and li-ion (lithium iron, lithium manganese) batteries
  • Charger OK and Battery Full signal
  • Temperature compensation function to prolong battery life (lead-acid only)
  • Remote ON-OFF control
  • Wide operating temperature: -30°C to 70°C
  • Complies with UL/EN62368-1 and EN60335-1/2-29 (dual certification)
  • 3-year warranty

Overview

Technical Specifications

  • Boost Charge Voltage: 14.4 VDC
  • Float Charge Voltage: 13.8 VDC
  • Voltage Adjustable Range: 10.5 VDC to 21 VDC
  • Output Current (CC): 25 A
  • Max. Power: 420 W
  • Recommended Battery Capacity: 90 AH to 300 AH
  • Input Voltage: 90 VAC to 264 VAC @ 47 Hz to 63 Hz; 4.5 A (115 VAC)
  • Input Connector: IEC320-C14 (recommend a 3-conductor C13 AC power cord)
  • Size: 8.07"L x 5.31"W x 2.17"H

Applications

  • AGV
  • E-bike, E-scooter, camping car, bus, special vehicles
  • Robotic lawn mower
  • Washing robot
  • Recreation craft, personal yacht or workboat
  • Surveillance system
  • Telecommunication base station
  • Radio system backup solution
  • Equipment or instruments with back-up battery

,
