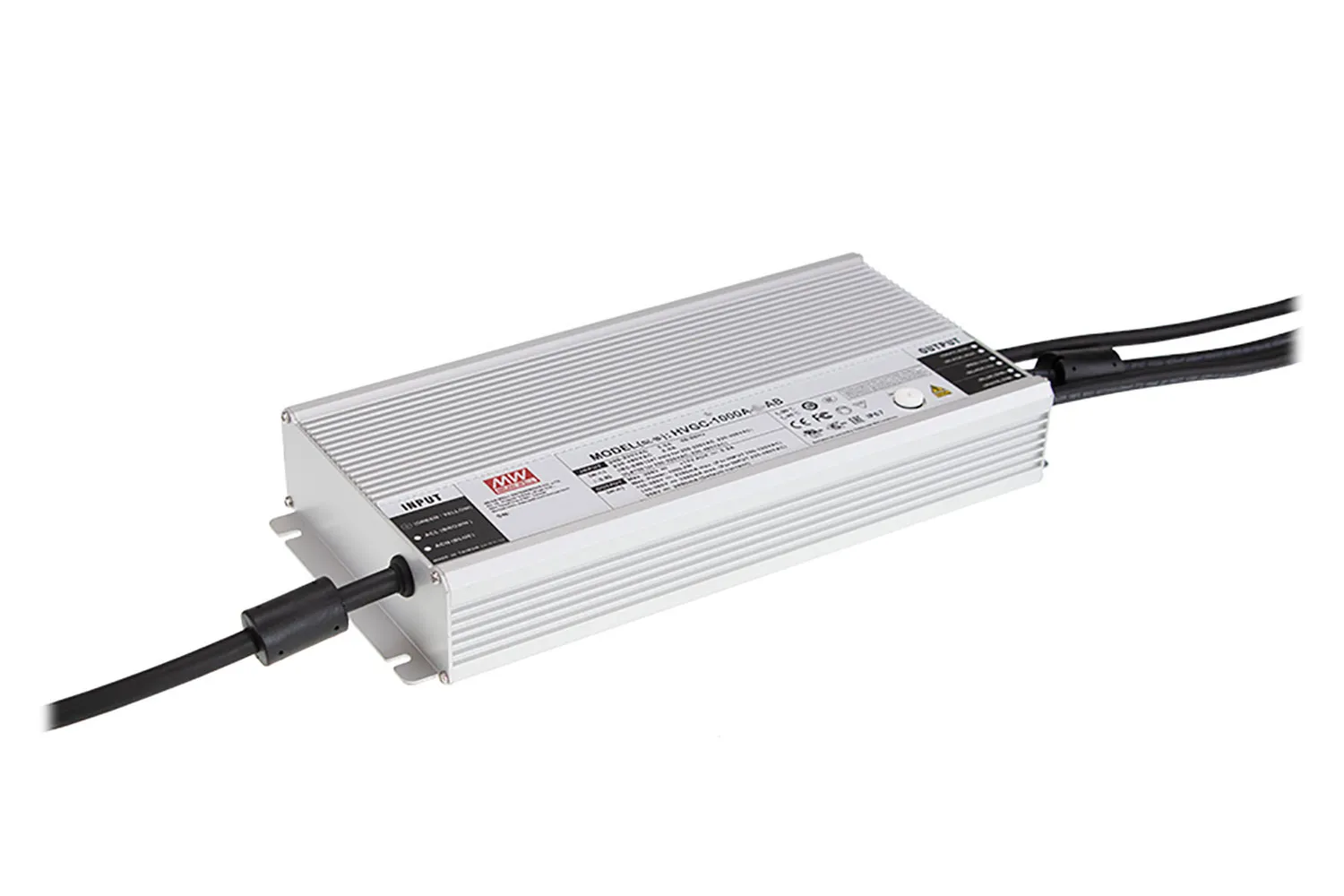

4200mA 95-240V 1008W Constant Power Mode LED Driver with 3-in-1 Dimming

Primary Output: 4.2 Amps @ 95 to 240 Volts DC
Auxiliary: 12 Volts DC @ 500 mA

Features

  • AB Model: 3-in-1 dimming function (0-10 VDC, 10V PWM signal and resistance) and built-in potentiometer
  • Wide input voltage range: 180 to 528 VAC
  • Constant power mode output
  • Metal housing with Class I design
  • Surge protection with 8KV/4KV
  • Built-in active PFC function
  • IP65 design for indoor or outdoor installations
  • 3 in 1 dimming (dim to off and Isolation)
  • Support with auxiliary DC output 12V/500mA
  • Typical lifetime >50,000 hours
  • 5 year warranty

Technical Specifications

  • Rated Current: 4200 mA (4.2 A)
  • Rated Power: 1008 W
  • Constant Current Region: 95 to 240 V
  • Full Power Current Range: 4200 to 5250 mA
  • Open Circuit Voltage: 250 V (max.)
  • Current Adjustment Range: 2100 to 5250 mA
  • Input Voltage: 180 to 528 VAC @ 47 to 63 Hz
  • Agency Approvals: UL, CUL, CB, CE, FCC, EN, ENEC, EAC, CCC
  • Size: 12.2"L x 5.67"W x 1.91"H (310 x 144 x 48.5 mm)
  • Weight: 9.81 lbs.

Applications

  • Harbor lighting
  • High-bay lighting
  • Flood lighting
  • Fishing lamp
  • Horticulture lighting
  • Stadium lighting
  • Type "HL" for use in Class I, Division 2 hazardous (classified) locations

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HVGC-1000

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, FCC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.91 in.
Length:12.2 in.
Width:5.67 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 528 VAC
Maximum Input Current:3.15 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):95 VDC to 240 VDC
Output Current (Channel 1):4.20 A
Output Voltage:See Output Range
Output Range:95 VDC to 240 VDC
Output Current:4.20 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
IP Rating:IP65
Efficiency:96%
Power Rating:1008 W
,
