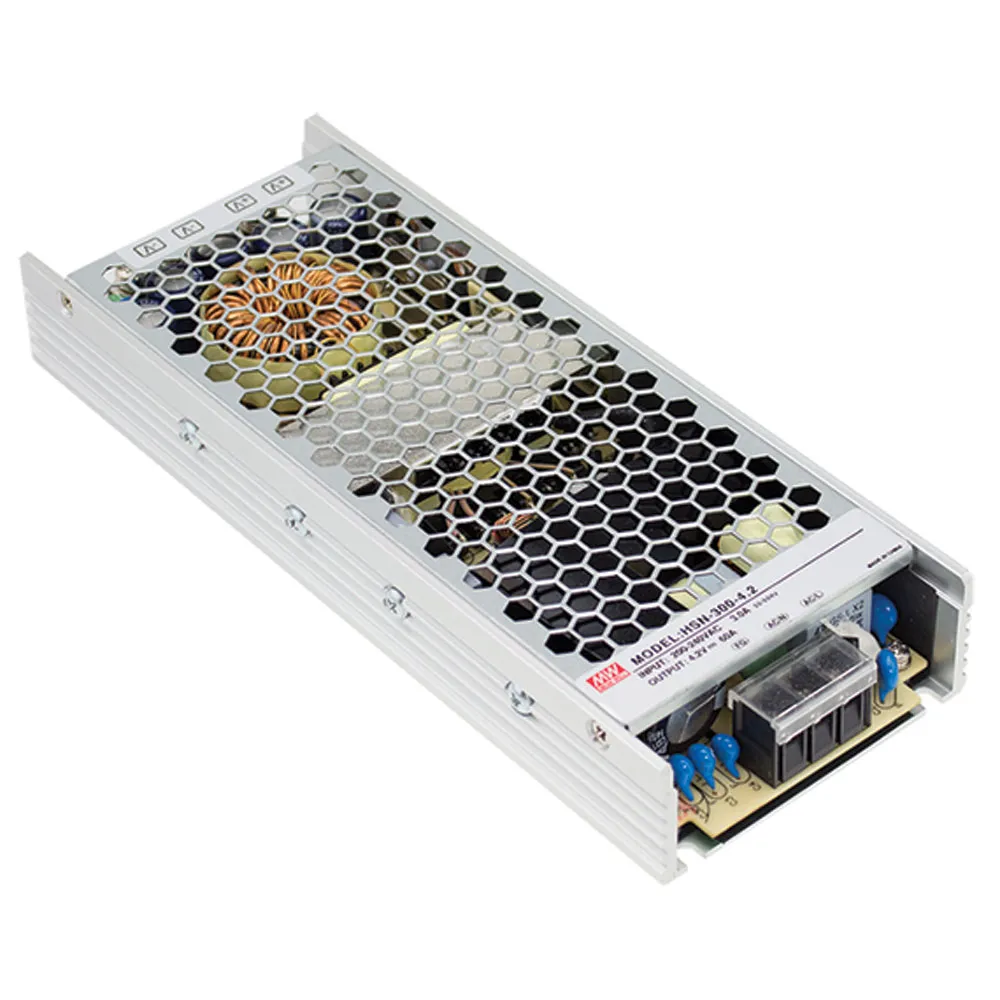

4.2 Volt 60 Amp 252 Watt AC-to-DC Regulated Single Output Enclosed Switching Power Supply

4.2 Volts DC @ 60 Amps

Features

  • Output current range: 0 to 60A
  • Input voltage range: 180 VAC to 264 VAC
  • Efficiency: 85%
  • Low leakage current < 1mA
  • Conformal coated
  • LED indicator for power on
  • Protections: short circuit, overload, over voltage, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high power reliability
  • 2 year warranty

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:HSN-300

    Compliance

    Agency Approvals: CUL, EAC, EN, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.2 in.
    Width:3.2 in.
    Length:8.3 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:180 VAC to 264 VAC
    Maximum Input Current:3 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):4.2 VDC
    Output Voltage:4.2 VDC
    Output Connector Type:Screw Terminal Block
    Output Current (Channel 1):60 A
    Output Current:60 A

    Features

    PFC Function:No
    Minimum Isolation Voltage:3000V
    Efficiency:85%
    Power Rating:252 W
    ,
