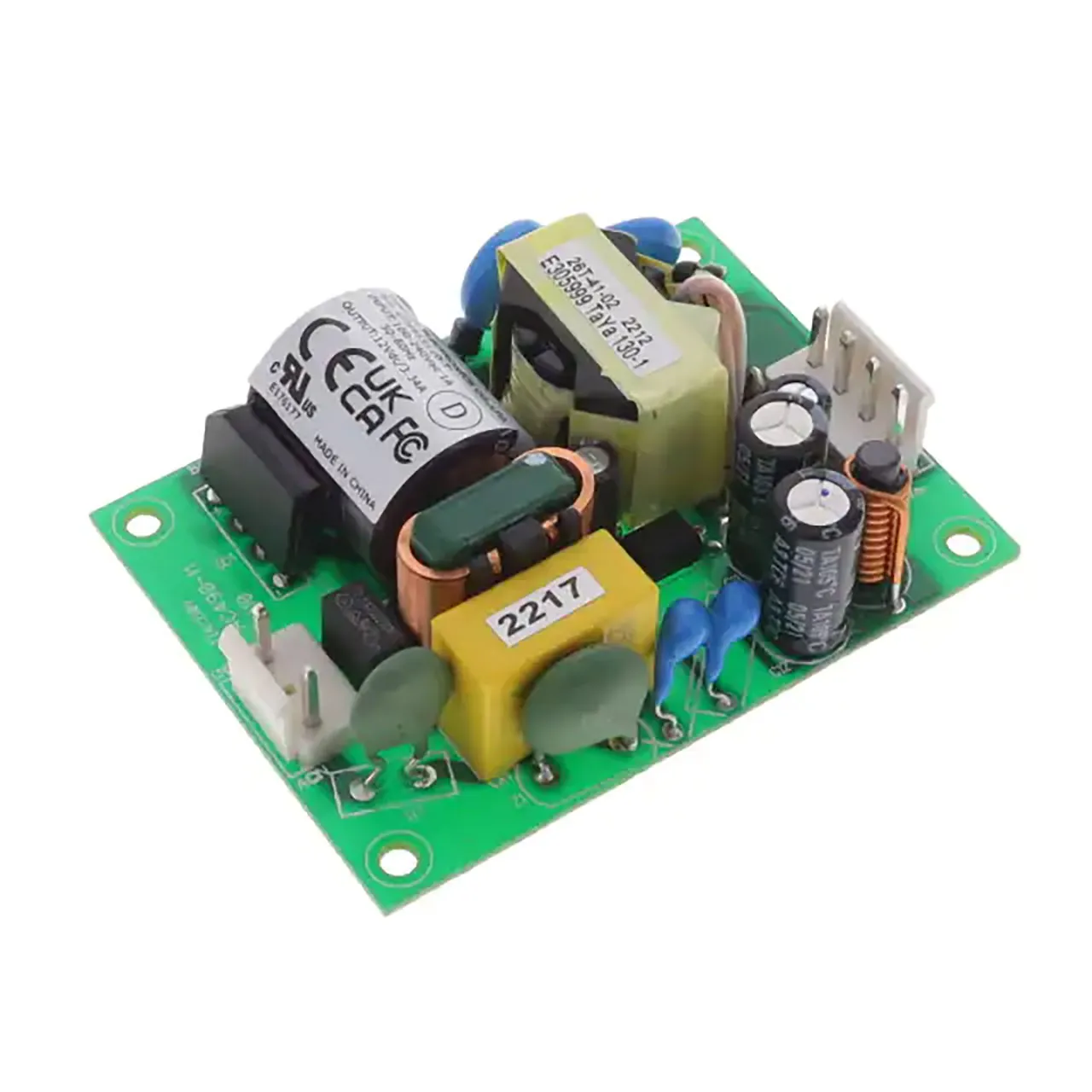

40W Single Output AC-DC Open Frame Power Module 12VDC 3.34A 6.66A Peak Load

Features

  • Universal Input Range 90 to 264 Vac
  • EN55032 Class B and CISPR/FCC Class B
  • Approval IEC/EN/UL 62368-1
  • Meets IEC/EN60335-1
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • No Load Power Consumption < 0.15W
  • Peak Load (2 Times of Rated Current: 6.66 A)
  • Class II

Product Identification

Product Type:AC-DC Open Frame Power Module
Manufacturer Series:CFM41S

Compliance

Agency Approvals: CE, CUL, D, EN, FCC, UL

Dimensions & Appearance

Style:Open Frame
Height:0.941 in.
Width:2 in.
Length:2.70 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Connector Type:JST VHR or equiv.
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:3.34 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:90%
Power Rating:40 W
,
