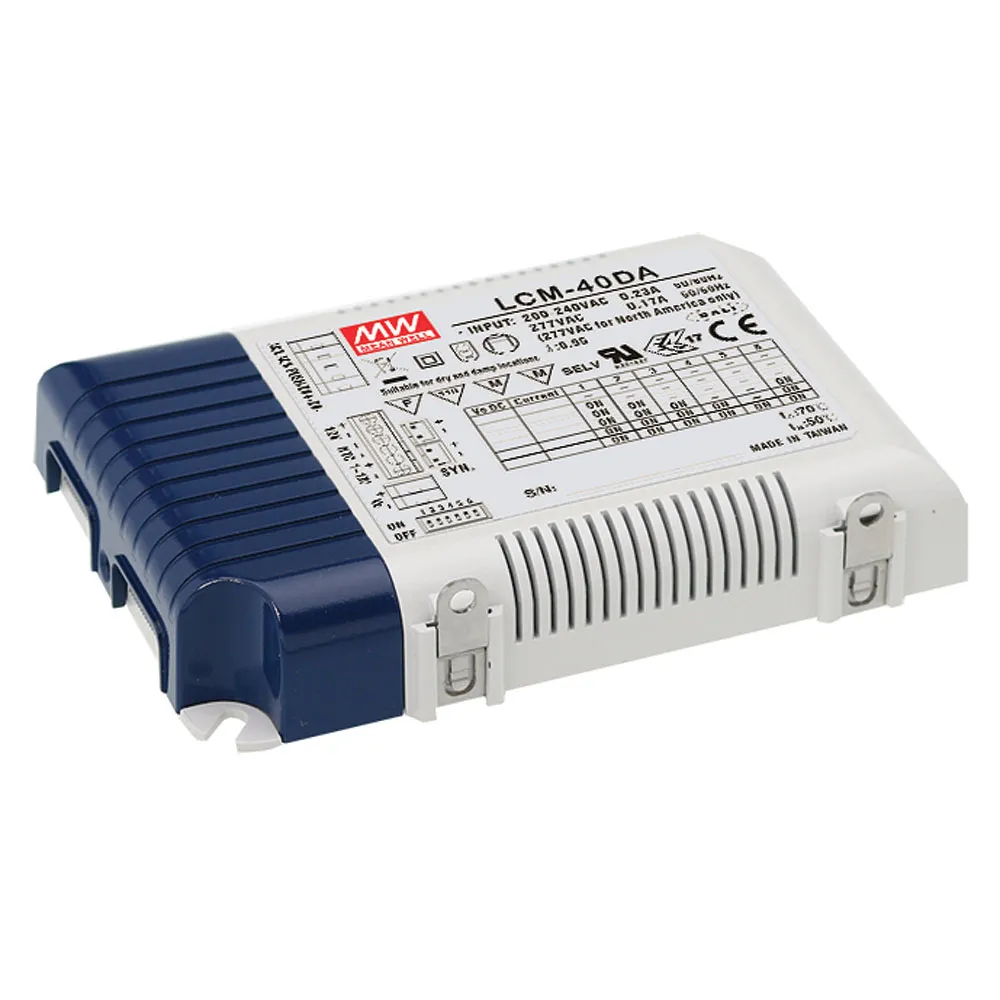

40 Watt Multiple-Stage Output Current LED Power Supply

350 mA @ 2-100 V
500 mA @ 2-80 V
600 mA @ 2-67 V
700 mA @ 2-57 V
900 mA @ 2-45 V
1050 mA @ 2-40 V

Features

  • Output current level selectable by DIP switch
  • 180-295 VAC input only
  • Built-in active PFC function
  • Protections: Short circuit / over voltage / over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Built-in DALI interface and push dimming function
  • IP20 design
  • Logarithm or linear dimming curve selectable (Meet IEC62386-207)
  • Temperature compensation function by external NTC
  • No load power consumption <1.2W (Note 7 in datasheet)
  • No load power consumption <0.5W (as of 3/17/2014)
  • Power supplies synchronization function up to 10 units
  • Suitable for indoor LED lighting applications
  • 3 year warranty
  • The built-in 12V/50mA auxiliary power had to be removed to comply with latest ErP requirements (as of 3/17/2014)
  • Setup time has been modified from 500ms/230VAC to comply with Directive 2009/125/EC (as of 3/17/2014)
  • Safety standards: UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved
  • EMC emission: Compliance to EN55015, EN61000-3-2 Class C(≥35% rated power) ; EN61000-3-3
  • EMC immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:LCM-40

    Compliance

    Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL, UL, CUL, CB, CE, EN, ENEC, EAC, CCC

    Dimensions & Appearance

    Style:Enclosed
    Color:White
    Height:0.9 in.
    Width:3.2 in.
    Length:4.9 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Maximum Input Current:0.23 A
    Input Voltage:180 VAC to 295 VAC

    Output

    Number of Outputs:1
    Output Connector Type:JST B2B-XH or equiv.
    Output Range:2 VDC to 100 VDC
    Output Voltage:See Output Range
    Output Current:1.05 A

    Features

    PFC Function:Yes
    IP Rating:IP20
    Minimum Isolation Voltage:3750V
    Efficiency:90.5%
    Power Rating:42 W
    ,
