40W Multiple-Stage Constant Power LED Driver 600mA to 1400mA Select by NFC IP67 UL8750 DALI-2 Dimming

MEAN WELL

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$26.600

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$26.600	-	-
5+	$25.300	1.30	4.89%
10+	$24.200	2.40	9.02%
20+	$23.500	3.10	11.65%

Features

Constant power mode output with multiple stage selectable by NFC setting
Plastic housing with class II and PFC design
Meets UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meets emergency lighting (EL) applications
Fully encapsulated with IP67
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: DALI-2 + push dimming
5 year warranty

Overview

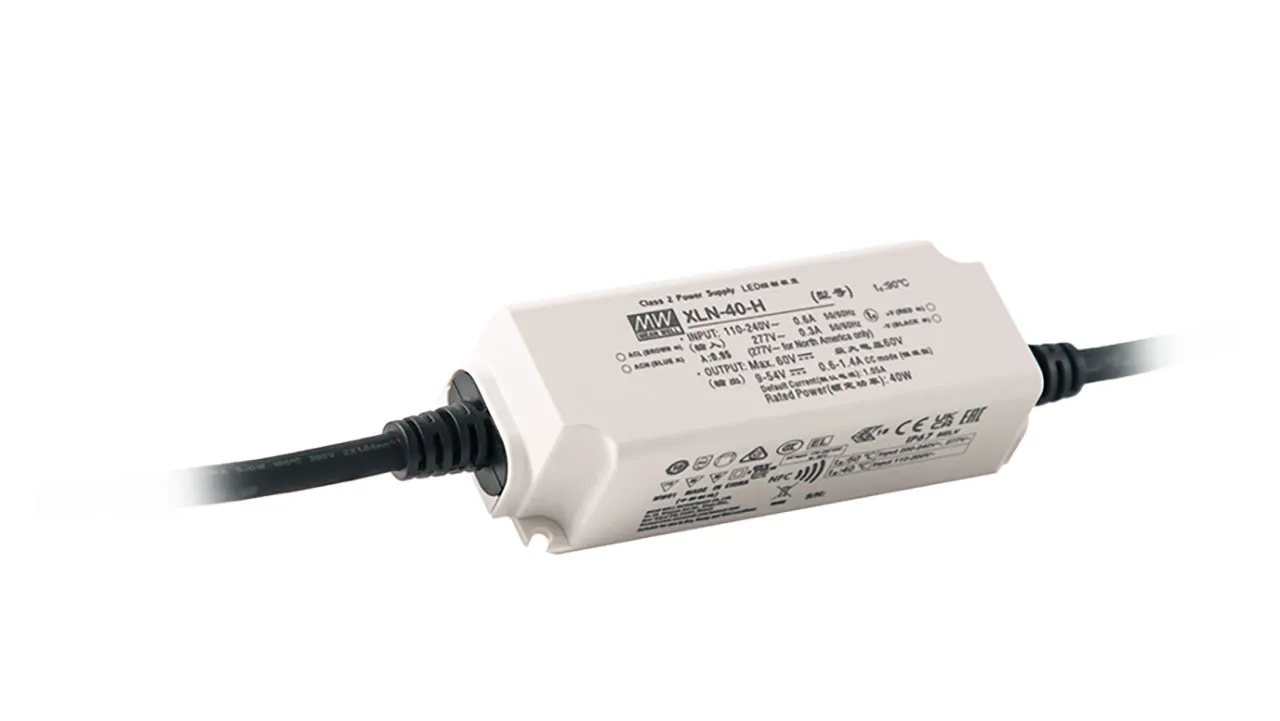

XLN-40 series is a 40 watt constant power or constant voltage output LED driver (depending on the model). It can operate from 100 VAC to 305 VAC and with high efficiency up to 88% over a temperature range from -25°C to 90°C under free air convection. The XLN-40 is designed based on the latest safety regulations with 3-in-1 and DALI-2 dimming options available. XLN-40 can also be adjusted for brightness with a push button as a simple way of dimming, so it provides more flexibility for LED lighting applications.

Applications

Recessed lighting
Down light
Panel light
Commercial lighting
Decorative lighting
LED strip lighting
DALI digital lighting
