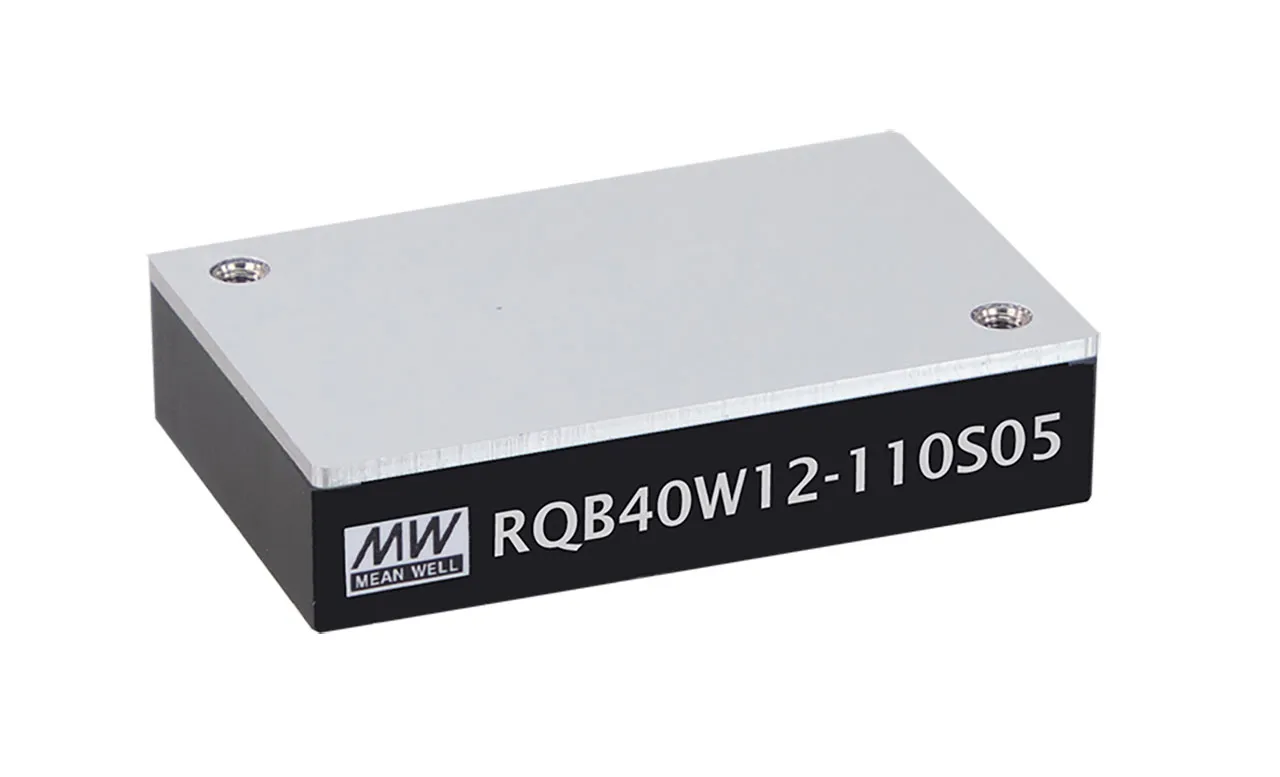

40W 5V 8A Railway DC-DC-Converter 14-160V Input Quarter Brick
Features
- Input Current: 15mA to 420mA
- Output Voltage: 5V @ 8A
- Quarter-brick with industrial standard pin-out
- 12:1 (14 to 160Vdc) wide input range
- Wide operating temperature range -40 to +90°C
- No minimum load required
- Full Encapsulated
- Protections: Short circuit (Continuous)/ Overload/ Over temperature/ Over voltage/ Input under voltage lockout
- Remote ON/OFF control and remote sense
- 3 year warranty
Overview
RQB40W12 series is 40W module type DC-DC reliable railway with quarter brick package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40 to +90°C, 3KVDC or 2KVAC I/P to O/P isolation voltage, meet EN50155 with external circuits, continuous-mode short circuit protection, ect. The models input for 14 to 160VDC 12:1 ultra-wide input range, and various output voltage, 5V for single output, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, ect.
Product Identification
Type:Isolated
Product Type:DC-DC Converter for Railway SMPS
Manufacturer Series:RQB40
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC, UKCA
Dimensions & Appearance
Color:Black
Height:0.50 in.
Width:1.45 in.
Length:2.28 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Input Voltage Range:14 VDC to 160 VDC
Input Voltage:110 VDC
Maximum Input Current:0.42 A
Output
Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:8 A
Features
Pins:10
Efficiency:88%
Power Rating:40 W
