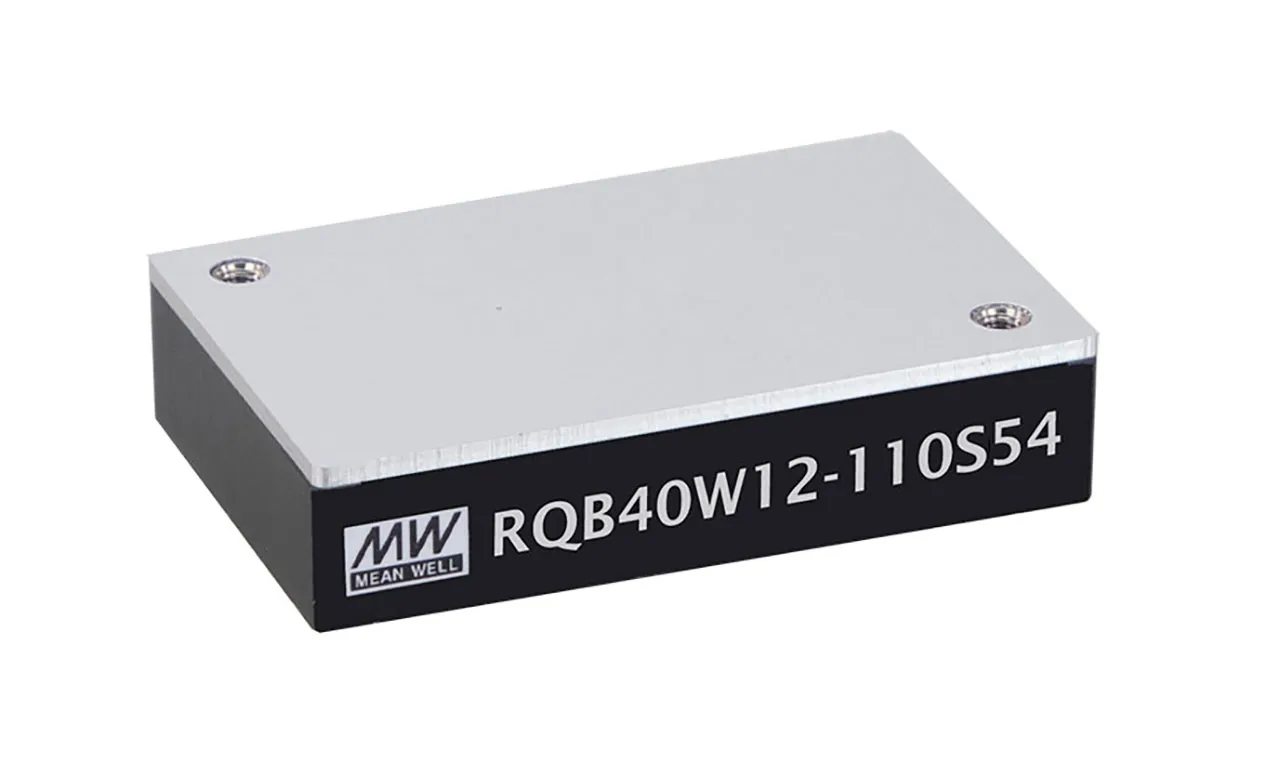

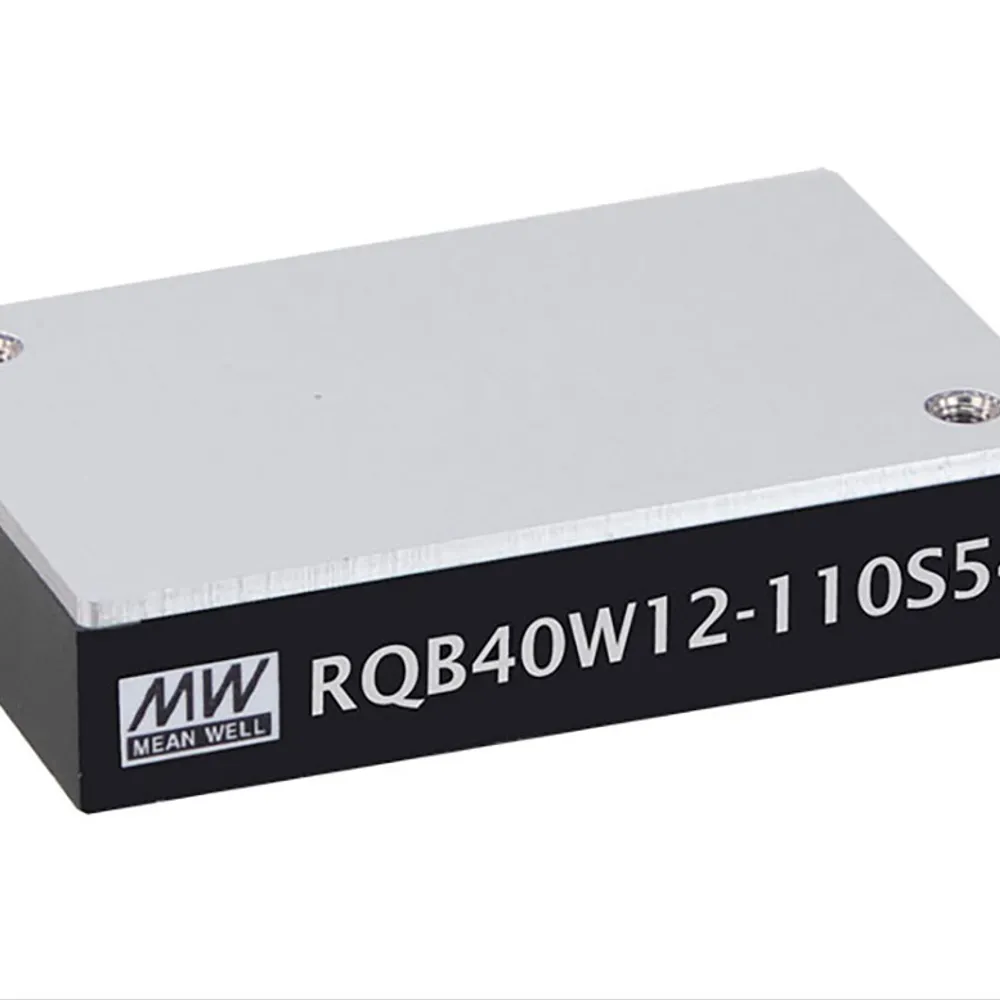

40W 54V 0.741A Railway DC-DC-Converter 14-160VDC Input Quarter Brick

Features

• Input Current: 15mA to 410mA
• Output Voltage: 54V @ 0.741A
• Quarter-brick (2.28" x 1.45" x 0.5") with industrial standard pin-out
• 12:1 (14 to 160Vdc) wide input range
• Wide operating temperature range -40 to +90°C
• No minimum load required
• Full Encapsulated
• Protections: Short circuit (Continuous)/ Overload/ Over temperature/ Over voltage/ Input under voltage
• Remote ON/OFF control and remote sense
• 3 year warranty

Overview

RQB40W12 series is 40W module type DC-DC reliable railway with quarter brick package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40 to +90°C, 3KVDC or 2KVAC I/P to O/P isolation voltage, meet EN50155 with external circuits, continuous-mode short circuit protection, ect. The models input for 14 to 160VDC 12:1 ultra-wide input range, and various output voltage, 54V for single output, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, ect.
